Product Details:
|
| Condition: | New | Voltage: | 220V |
|---|---|---|---|
| Frequency: | 50-60HZ, 20KHZ | Welding Area: | 160mm, 160MM |
| Dimensions: | 400*600*1080mm | Usage: | Welding |
| Warranty: | 1 Year, 1 Year | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support |
| Key Selling Points: | Easy To Operate | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other |
| Weight (KG): | 70 KG | Power (kW): | 2 |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Not Available |
| Video Outgoing-inspection: | Provided | Delay Time/Weld Time/Hold Time:: | 0.01-0.09S |
| Stroke: | 75MM | Working Pressure: | 0.5-0.7MPA |
| Welding Material: | ABS, SAN, PP, PE, PS, PS, Etc | Dimension: | 400*600*1080mm |
| Weight: | 70KG | After-sales Service: | Enigneer |
1. Precise time control, no time difference, the longest time is 9.999 seconds, up to 1MS increments and subtractions (one thousandths of a second), higher splicing accuracy, research and development of depth mode, and the use of grating rulers in splicing accuracy once New breakthrough.
2. A wider range of applicable welding heads, wide-band design, resonant frequency 20K equipment from 19.600KHZ to 20.200KHZ, the recommended best working point is 19.900KHZ, a total of 500HZ bandwidth is suitable for various manufacturers and new and old welding heads, the operation is simpler, Replace the welding head, restart the power after the welding head is firmly fixed, and click Sweep, the device will automatically detect and track the frequency of the new welding head. Abnormal automatic shutdown, reduce product defect rate and prevent machine damage.
3. The dual-start mode is safer. Automatically search the resonant frequency of the vibrator and the mold when the machine is turned on, and check whether the system power supply, power amplifier, and buttons are malfunctioning. Then confirm the best working frequency and store the memory. Finally, judge whether the mold current is too high. After confirming that it is normal, turn on and release the key lock of each part, otherwise the device will not start normally.
4. The output power vibration amplitude can not be adjusted from 50% to 100%, which is more precise than the traditional line with only a few gear adjustments.
5. Mold current is too high protection, frequency offset protection, total output is too high, automatic protection, escort for the machine; abnormal automatic shutdown protection, reduce product defect rate, prevent machine damage, Chinese and English interface operation, digital counter, multiple Working status, manual and automatic mode work.
Ultrasonic welding is used in electronics, automobiles, medical, environmental protection, toys and other industries. The welding is reliable and the sealing effect is good. It is the best choice to replace glue and screws.

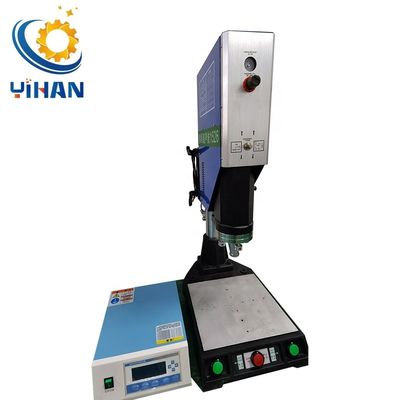

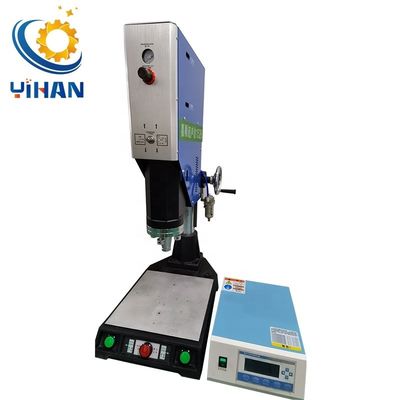

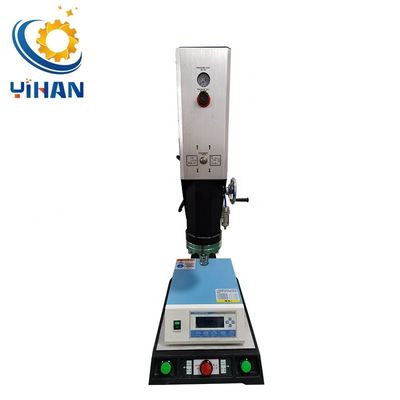

| Name | Ultrasonic welding machine |
| Power supply | 220V 50-60HZ |
| Delay Time/Weld time/Hold time | 0.01-9.99s |
| Output time | 0.01-0.09s |
| Welding head stroke | 75MM (Customized 80MM) |
| Welding Area | 160mm(based on the material and design) |
| Applicable welding materials | ABS, SAN, PP, PE, PS, PS, etc |
| Frequency | 20KHZ 2000w |
| Working pressure | 0.5-0.7MPA |
| Dimension | 400*600*1100MM |
| Weight | 70KG |
| Warranty | 1 Year |
| After-sales service | Engineers |
|
Custom | Welding head and mold can be customized according to customer products, please communicate with customer service before placing an order |
| frequency | 20KHZ | 15KHZ | 15KHZ |
| Power | 2000W | 2600W | 3200W |
| Voltage | AC 220V 50-60HZ | ||
| Welding head stroke | 75mm(80MM can be customized) | ||
| Output time | 0.01-0.09s | ||
| Welding area | 160MM | 240MM | 280MM |
| Size | 400*600*1080mm | ||
| Weight | 70kg | ||
| Customize | There are other precision models to choose from, please consult customer service for details | ||
1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples
4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
6.Do your product have warranty and refund or return?
Yes, All our products have one year warranty and no reason refund within 7 days after customer received product(customer need to pay for the Return shipping fee
