Product Details:
|
| Usage: | Multifunctional, Cutting,Stripping,Crimping | Product Name: | Automatic Single Head Terminal Crimping Machine |
|---|---|---|---|
| Pocessed Wire Range: | AWG18-AWG-32 | Stripping Length: | 0.1mm-10mm |
| Twisting Length: | 3mm-12mm | Productivity: | 4500-6500PCS/H |
| Weight: | 230KG | Size: | 600*700*1500mm |
| Voltage: | AC220V/50HZ | Crimping Capacity: | 1.8Ton |
| Port: | Shenzhen |

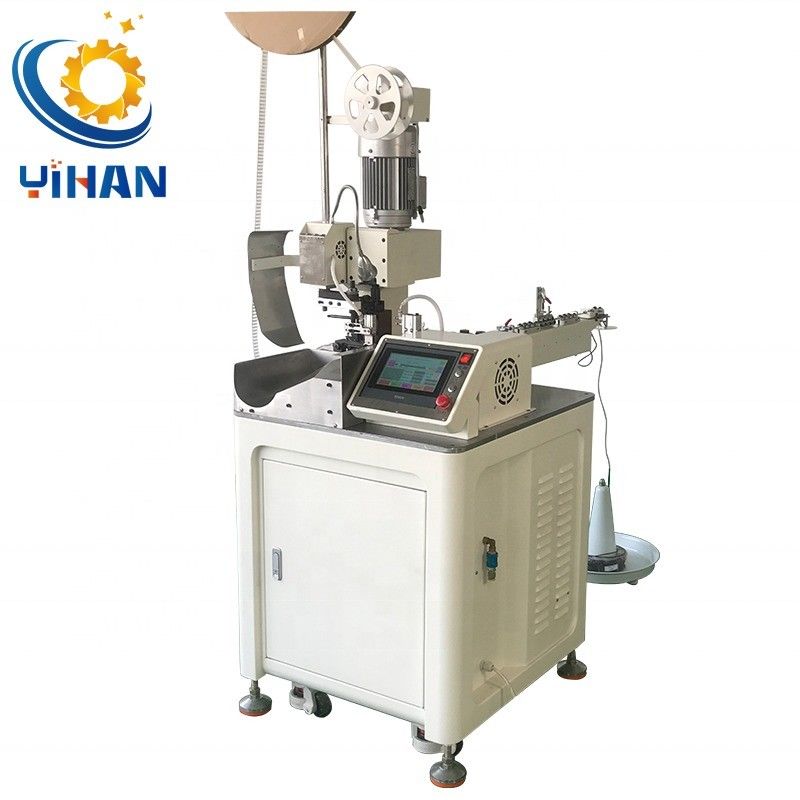

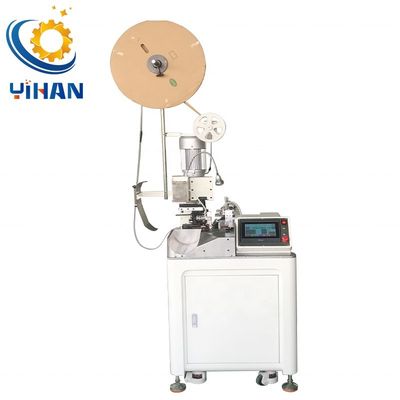

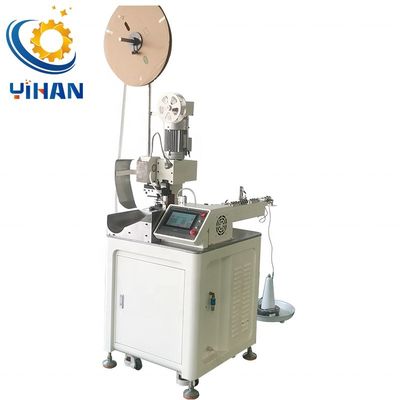

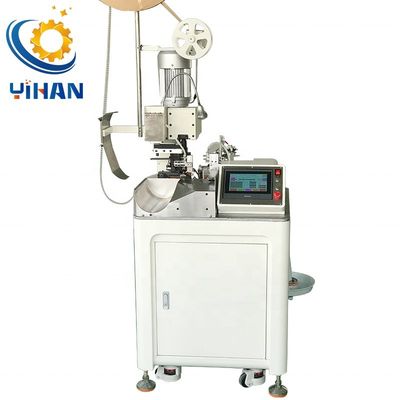

YH-03D (High-speed)Automatic Single-head Terminal Crimping Machine
Features:
2.LCD display, clear chinese interface, easy to operate.
3.The whole machine adopts servo control, full computer touch digital debugging parameters, uniform 90 degree point, precise depth.
4.Complete detection function, wire, terminal, knotting, air pressure detection, etc
5.Novel concept, OTP straight mold, transverse mold, simple blade replacement, automatic receiving terminal waste paper, cutting terminal waste.
| Product Name | Automatic single head terminal crimping machine |
| Model | YH-03D |
| Pocessed wire range | AWG18-AWG32 |
| Processing speed | 6100pcs/h(0-100mm) 4600-5800pcs/h(100mm-600mm) |
| Wire cutting length | Bold lines 20mm-9999mm, Not twisted wire 8mm-9999mm |
| Cutting ccuracy | Less than 1mm+cutting length 0.2% |
| Stripping length | 0.1mm-10mm |
| Twisting length | 3mm-12mm |
| Crimping capacity | 1.8Ton |
| Detection function | Without wires, wire tie, terminal testing, Wire Identification (can be installed) |
| Dimension | 600X700X1500mm |
| Power supply | Single-phase power AC220V 50/60HZ |
