1500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine

1500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine
1500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 1500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 1500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 1500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 1500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 1500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine

Large Image :  1500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: Yihan
Model Number: YH-22B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $3,000.00 - $4,500.00/sets
Packaging Details: wooden package
Supply Ability: 500 Set/Sets per Month
Contact Now

1500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine

Description
Usage: Multifunctional Product Name: Automatic Double Head Terminal Machine
Power Supply: AC220V/50HZ Productivity: 4000pcs/h( Within 200mm Length)
Processing Range: AWG#30-AWG#18/AWG#20-AWG#14 Cutting Length: 50mm-9999mm(the Shortest Can Be 25mm)
Peeling Length: 0.1mm-10mm Pressing Ability: 1500KG
Air Pressure: 0.4-0.6Mpa Dimension: 1000-800-1450
Weight: 350KG Port: Shenzhen

1500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 01500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 11500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 2

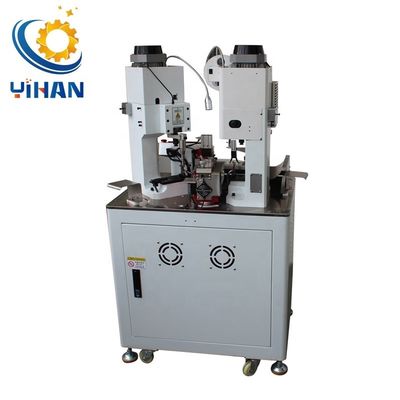

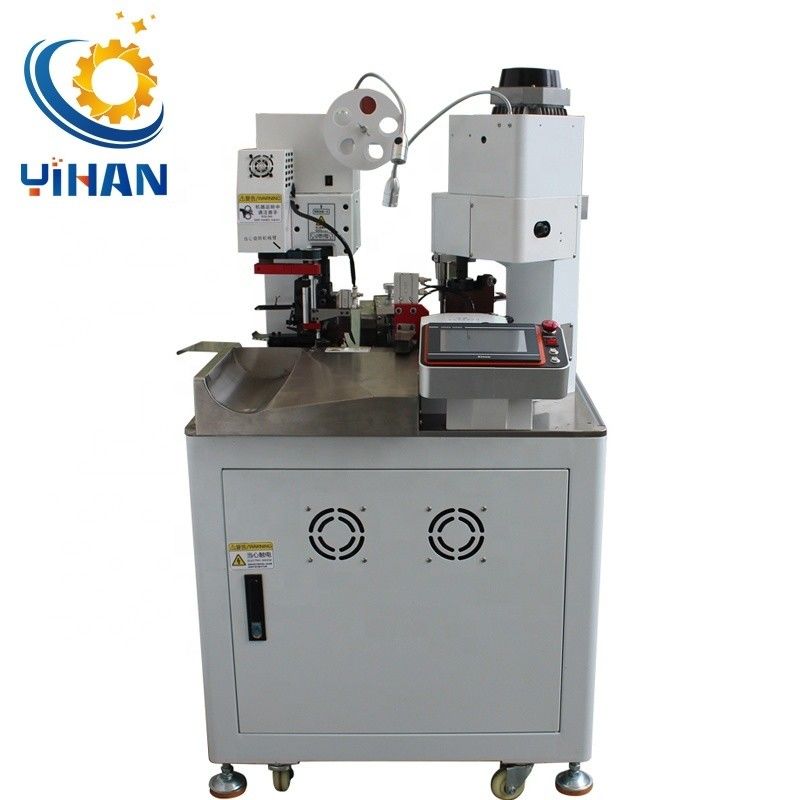

YH-22B  Automatic terminal crimping machine

Features:

  • Automatic double-end wire cutting, stripping, crimping, stripping, cutting machine and terminal functions in one, high precision, fast speed and stable performance.
  • LCD, Chinese interface, HD, easy to operate
  • This machine adopts servo control, which is fast and low in noise.
  • The computer touches the digital tuning parameters, which is quick and easy.
  • After the test is completed, the machine automatically alarms when the wire, crimp, pressure, etc.
  • Innovative concept, OTP mode, horizontal mode, just replace the blade, automatic receiving terminal, waste paper, abandoned terminal.



Product Description
Product Name  Double terminal crimping machine
Model  YH-22B
Power supply  AC220V/50HZ
Productivity  4000pcs/h( within 200mm length)
Processing range  AWG#30-AWG#18/AWG#20-AWG#14
Cutting length  50mm-9999mm(the shortest can be 25mm)
Peeling length  0.1mm-10mm
Pressure  2.0Ton/1.5Ton/2.5Ton
Pressing ability  1500KG
Air pressure  0.4-0.6Mpa
Dimension  1000-800-1450
Function Cutting/Single End Peeling/Double end Peeling/Single end Pressing/Double end Pressure
Weight  400KG

1500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 31500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 41500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 51500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 6

Prodow Show

1500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 7

1500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 8

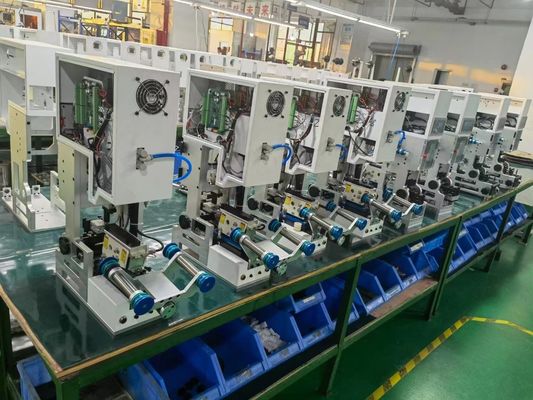

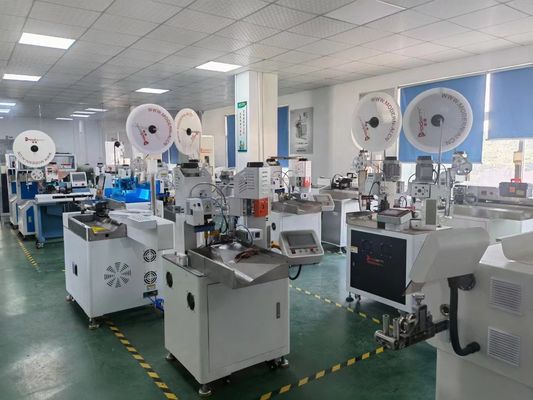

Company profile

1500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 91500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 101500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 111500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 121500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 131500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 141500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 151500KG Pressing Ability Automatic Cable Wire Cutting Stripping and Crimping Machine 16
