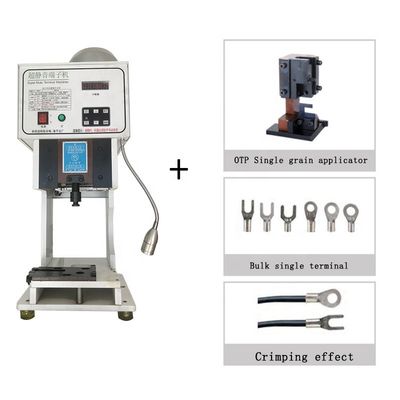

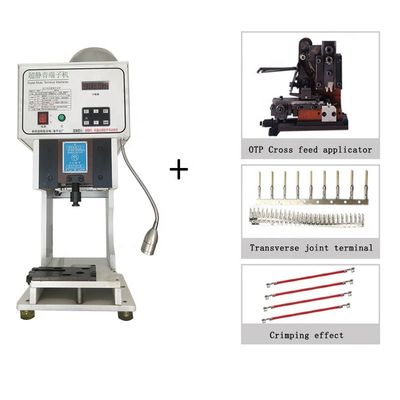

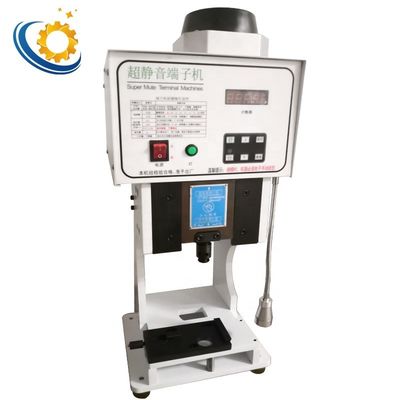

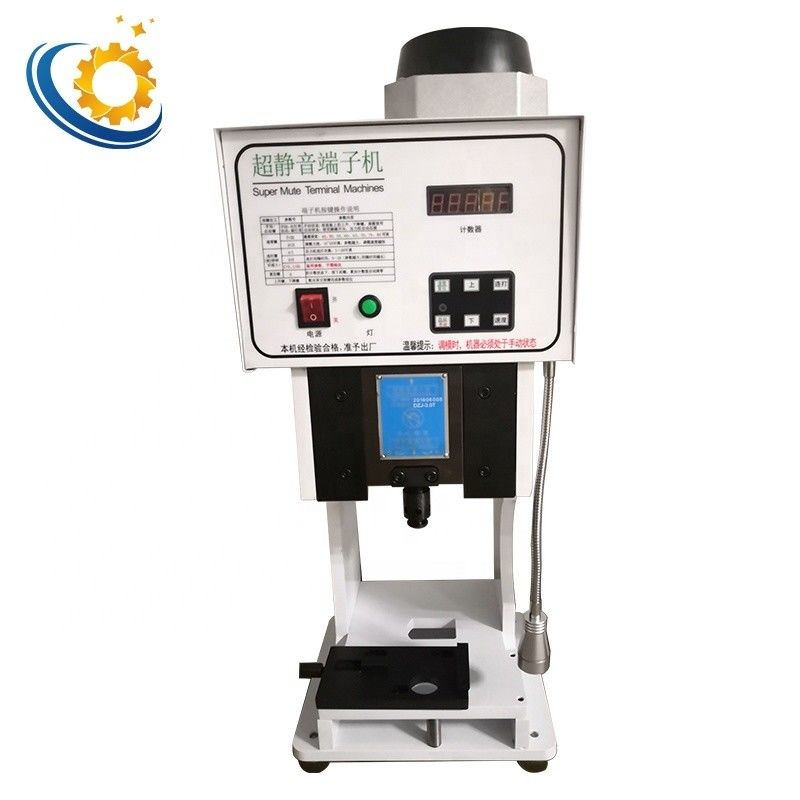

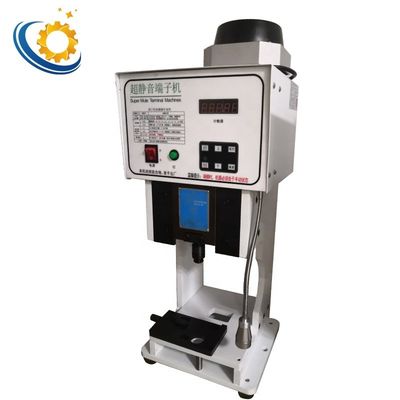

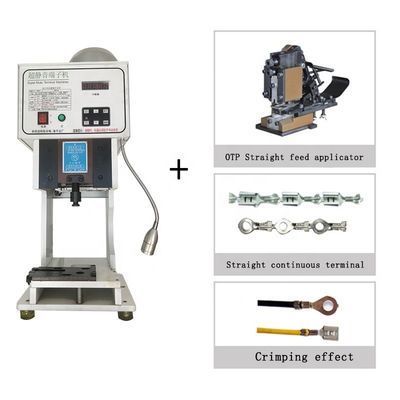

AC220V 50HZ Copper Cable Wire Terminal Connector Crimping Press Machine 30KN Capacity

YH-3.0T electrical copper cable wire terminal connector crimping press making machine

Introduction:

• Super mute terminal machine, using high frequency technology, electronics precise positioning.Motor operating noise smaller than traditional terminal when crimping , save electricity, transfer mode is more convenient, avoid common failures as the traditional terminal clutch / solenoid meet.

Features:

• Cassette mold, replacement is easy/ fast and save time.
• Conversion and no clutch, fixed-point accurate, fast, no noise.
• Computer terminals, DC terminals, AV terminals, single grain terminal, associated terminals.
• Compact structure, easy to move in the workplace
• Suitable for OTP Transverse mode, OTP anti straight mold, 2000 #, 950 #.

Model	YH-1.5T	YH-2.0T	YH-3.0T	YH-4.0T
Crimp-Force	15KN	20KN	30KN	40KN
Wire Range	AWG14-32	AWG10-32	AWG6-32	AWG3-32
Storke	30MM	30MM (40MM customized)	30MM (40MM customized)	30MM (40MM customized)
Power Supply	220V 50-60HZ	220V 50-60HZ	220V 50-60HZ	220V 50-60HZ
Power	0.55KW/H	0.75KW/H	1.1KW/H	1.5KW/H
Weight	38KG	47KG	66KG	95KG
Dimensions	215*230*600mm	215*245*640mm	240*270*700mm	260*305*740mm
