Product Details:
|
| Usage: | Multifunctional | Product Name: | High-precision Terminal Crimping Machine |
|---|---|---|---|
| Model: | YH-3.0TS | Crimping Capacity: | 3KN |
| Wire Specification: | AWG#11-AWG#32 | Stroke: | 30mm(Customizable 40mm) |
| Power: | AC220V 50HZ | Net Weight: | 90KG |
| Size: | 400*300*800mm | Productivity: | 1500-2500 Pcs /h |
| After-sales Service: | Video Technical Support |

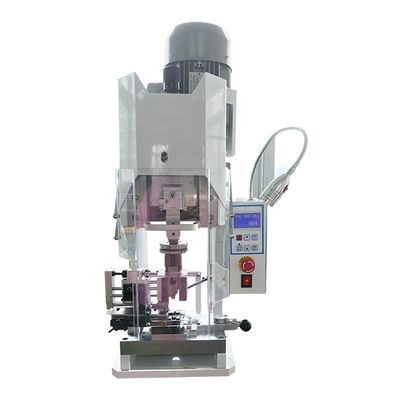

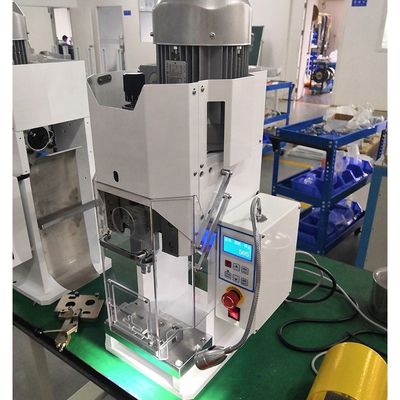

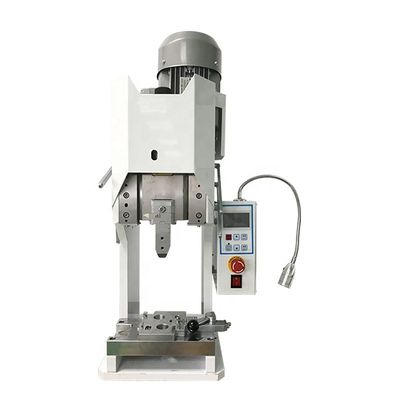

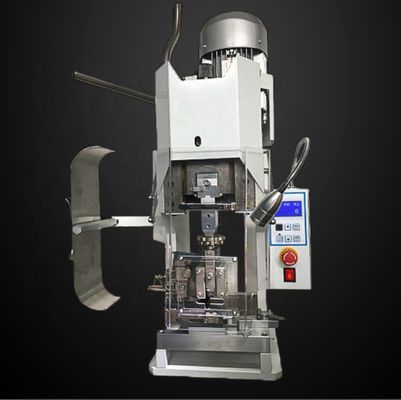

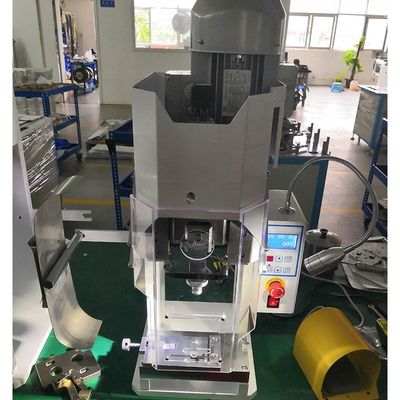

High-precision ultra-quiet automotive wiring harness terminal crimping machine
Introduction:
1,Suitable for automotive wiring harnesses and terminal crimping of various high precision requirements.
2,The mold base is interchangeable and can replace various molds.
3,Applicable to: Japanese mold, European mold,Korean mold, OTP mold, can be equipped with stroke 30 molds and 40 strokes
4, Strong pressure, very suitable for large terminals And plug two pieces, car wiring harness terminal, Special pressure cable
5,This machine can be used to crimp computer terminals, DC Terminal, AC terminal, single terminal, continuous Terminal, beef nose copper terminal, cold pressed terminal,Flare terminal, waterproof terminal
6,Optional pressure management device, crimp reliable quality
| Product Name | High-precision ultra-quiet automotive wiring harness terminal crimping machineinal machine |
| Model | YH-3.0TS |
| Crimping capacity | 3.0KN |
| Wire specification | AWG#11~AWG#32 (0.1-4mm2) |
| Power supply | AC220V/50HZ 750W |
| Size | 340*300*780mm |
| Stroke | 30mm (Customizable 40 strokes) |
| Applied terminals | Seperated terminals,Various continuous termicals |
| Operation | Single-action pedal |
| Weight | 87KG |
| Production capacity | 2000pcs/h |
| Applicable applicator | Japanese mold, European mold,Korean mold, OTP mold, can be equipped with stroke 30 molds and 40 strokes |
