Semiautomatic Compression Connector Terminal Crimping Machine with 30mm/40mm Stroke

Large Image : Semiautomatic Compression Connector Terminal Crimping Machine with 30mm/40mm Stroke

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Yihan
Model Number:	YH-1.5T

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$400.00/sets 1-2 sets
Packaging Details:	wooden package

Contact Now

Semiautomatic Compression Connector Terminal Crimping Machine with 30mm/40mm Stroke

Description

Usage:	Crimping	Product Name:	Super Mute Terminal Machine
Type:	Crimping Terminal Machine	Weight:	39KG
Power:	AC220V 50HZ	Warranty:	1year
Wire Range:	0.1-2.5 Mm2 (AWG12-AWG32)	Productivity:	2000PCS/h
Size:	360330720mm	Crimping Capacity:	15KN
Stroke:	30mm/40mm

Semiautomatic Compression Connector Terminal Crimping Machine with 30mm/40mm Stroke 0

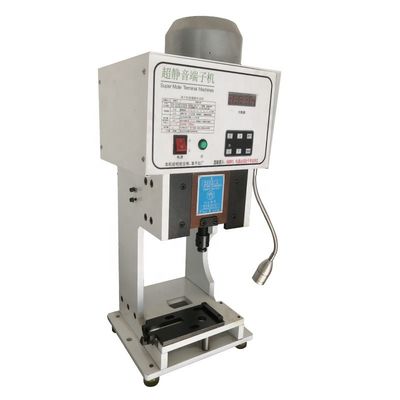

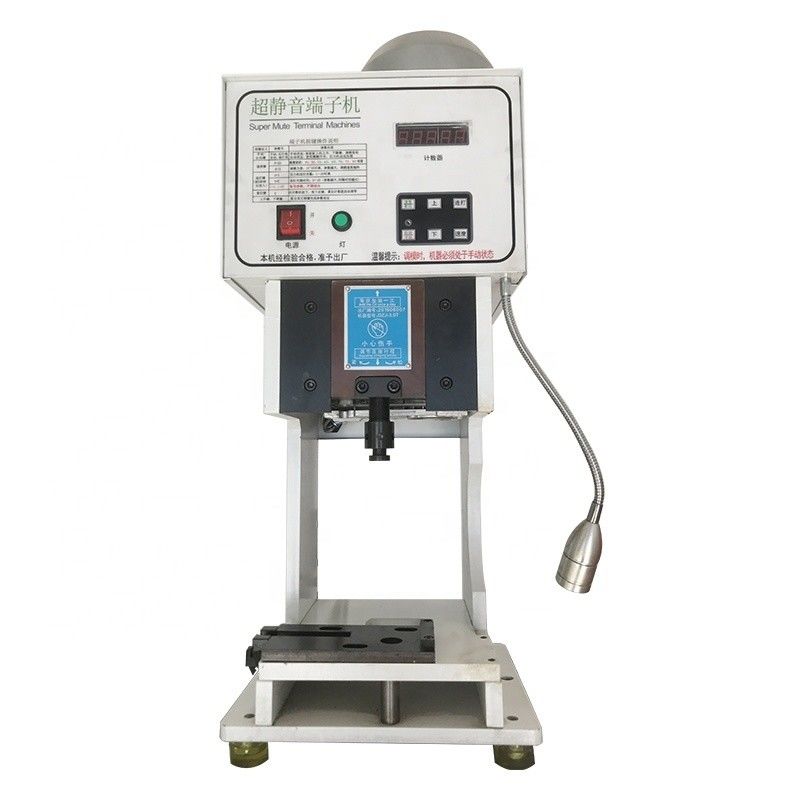

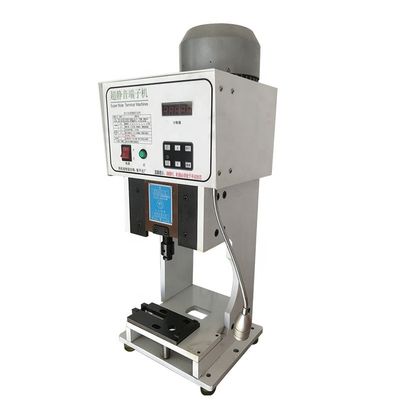

YH-1.5T Semi-automatic compression connector terminal crimping machine

Introduction:

Super mute terminal machine, using high frequency technology, electronics precise positioning.Motor operating noise smaller than traditional terminal when crimping , save electricity, transfer mode is more convenient, avoid common failures as the traditional terminal clutch / solenoid meet.

Features:

Cassette mold, replacement is easy/ fast and save time.
Conversion and no clutch, fixed-point accurate, fast, no noise.
Computer terminals, DC terminals, AV terminals, single grain terminal, associated terminals.
Compact structure, easy to move in the workplace

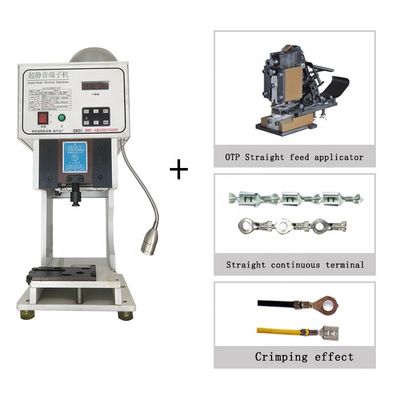

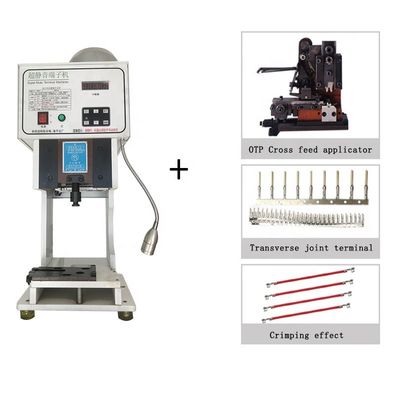

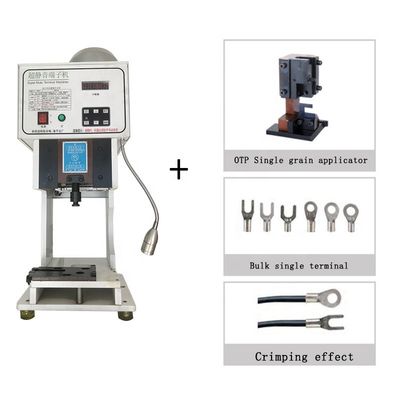

Suitable for OTP Transverse mode, OTP anti straight mold, 2000 #, 950 #.

Semiautomatic Compression Connector Terminal Crimping Machine with 30mm/40mm Stroke 3

Product Description

Model	YH-1.5T
Crimping capacity	15KN
Slide stroke	30MM(40mm)
Power supply	220v/50Hz/60Hz
Size	270270650mm
Net Weight	40kg
Suitable line diameter	0.1-2.5mm2
Suitable applicator	OTP applicator

Semiautomatic Compression Connector Terminal Crimping Machine with 30mm/40mm Stroke 4

Product Show
