Product Details:
|
| Usage: | Crimping | Name: | Hexagonal Die-free Crimping Machine |
|---|---|---|---|
| Pressing Pressure: | 40KN | Applicator Width: | 8mm(other Size Can Be Special Ordered) |
| Size: | 560*370*300mm | Crimping Stroke: | 240mm |

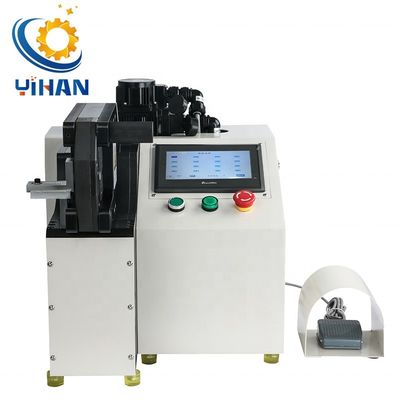

| Control Mode: | Automatic Or Foot Switch | Machine Power: | 1500W |
| Weight: | 80kg | Suitable Power Supply: | AC220V 50Hz |
| Wire Range: | 2.5-35mm2(AWG2#-AWG13#) |

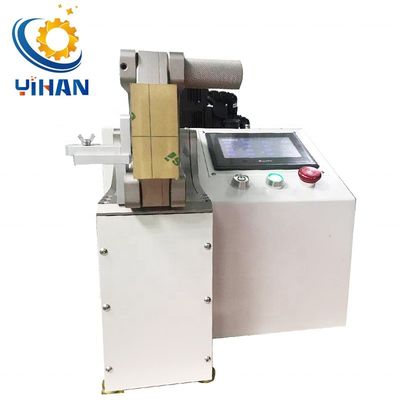

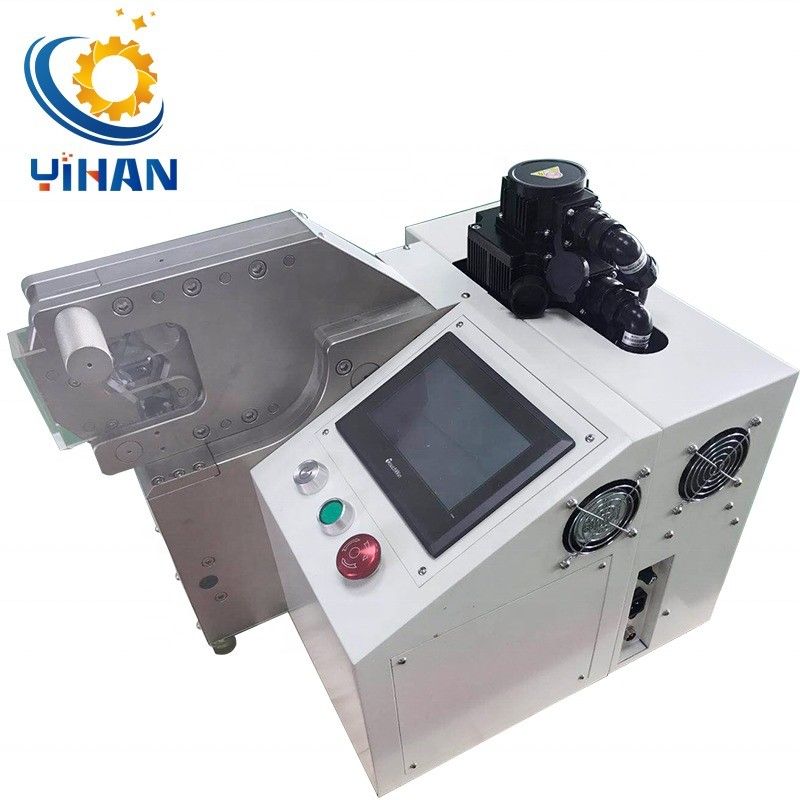

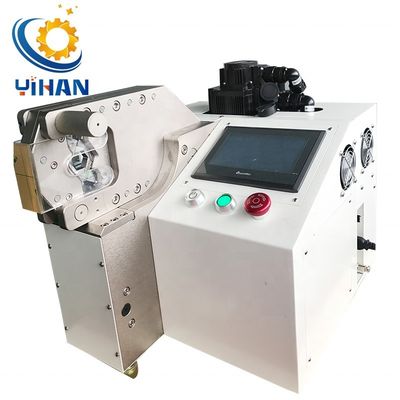

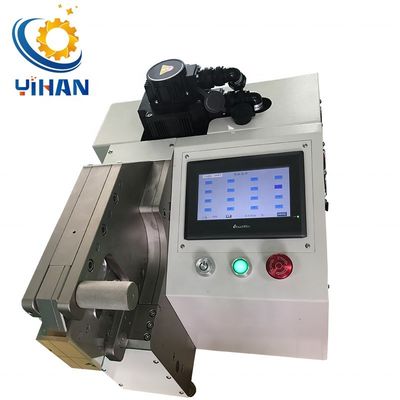

Hexagonal crimping machine 6D for big cables from 2.5-35 sq.mm semi crimp machine
FEATURE:

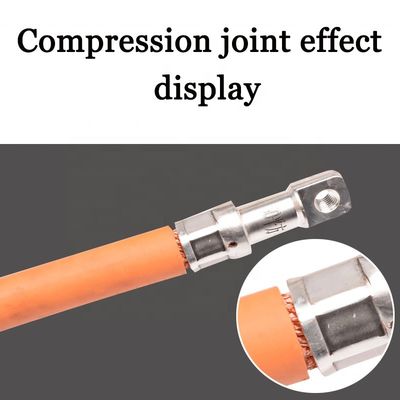

1. This crimping machine is mainly designed for large tubular terminal, closed cold-pressed terminals.
2. AM309 is widely used in new energy cable, charging cable and charging gun wire harness processing field.
3. Industrial control chip with high precision servo drive make sure the machine running very stable.
4. 10-120mm² closed tubular terminal crimping no need to change die set, crimping diameter can be adjusted in seconds.
| Model | YH-35D | YH-120D |
| Voltage | 220V 50-60HZ | |
| Max Caliber | 24mm | 3200 |
| Blade Width | 8MM | 12.5MM |
| Crimping Force | 80KN (Customize) | 200KN(Customize) |
| Wire Range | 2.5-35mm2 | 6-120MM2 |
| Weight | 80kg | 120KG |
| Power | 1500W | 2300W |
