15KN Pressure 1.5 Ton Electric Dynamo Super Mute Automatic Terminal Crimping Machine

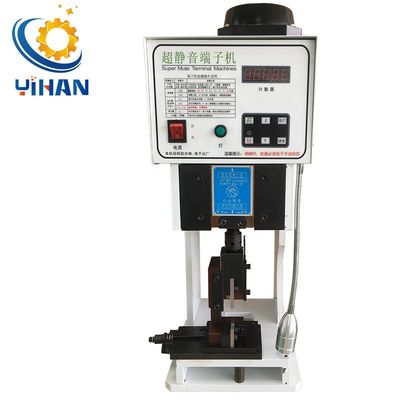

Large Image : 15KN Pressure 1.5 Ton Electric Dynamo Super Mute Automatic Terminal Crimping Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Yihan
Model Number:	YH-1.5T

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$550.00/sets 1-2 sets
Packaging Details:	wooden package

Contact Now

15KN Pressure 1.5 Ton Electric Dynamo Super Mute Automatic Terminal Crimping Machine

Description

Usage:	Crimping	Product Name:	Silent Terminal Crimping Machine
Type:	Terminal Crimping Machines	Weight:	44KG
Mould Model:	Horizontal Feed The Mould	Power:	AC220V 50HZ
Pressure Ability:	15KN	Pressure To Stroke:	30MM(Customizable 40MM)
The Motor Power:	0.55KW/H	Dimension:	450 * 400 * 760mm
Warranty:	12 Months

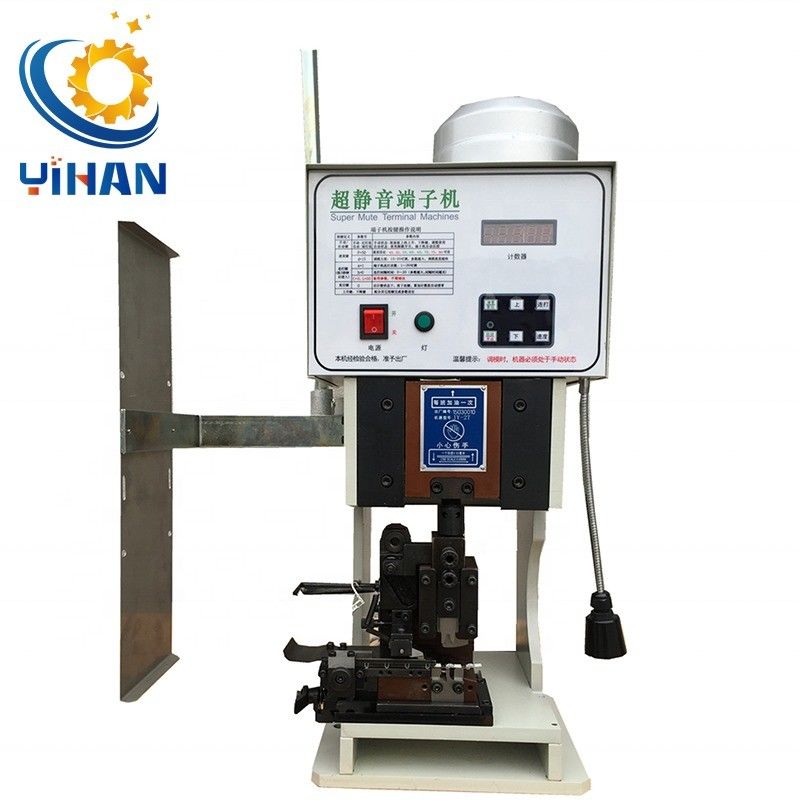

15KN Pressure 1.5 Ton Electric Dynamo Super Mute Automatic Terminal Crimping Machine 0

YH-1.5T Silent Terminal Crimping Machine With joint chain type terminal die

Introduction:

Super mute terminal machine, using high frequency technology, electronics precise positioning.Motor operating noise smaller than traditional terminal when crimping , save electricity, transfer mode is more convenient, avoid common failures as the traditional terminal clutch / solenoid meet.

Features:

Integrally mold machine, no need change the mold, rapid, time-saving.
Voltage stability, speed, high accuracy.
Computer terminals, DC terminals, single grain terminal, associated terminals.
Compact structure, easy to move in the workplace,Operation Silent.

Product Description

Product Name	Silent terminal crimping machine with Horizontal feed the mould
Model	YH-1.5T
Crimping capacity	15KN
Slide stroke	30MM(Customizable 40MM)
Power supply	220v/50Hz/60Hz
Size	220/240/620
Weight	44KG
Work efficiency	2000pcs/h

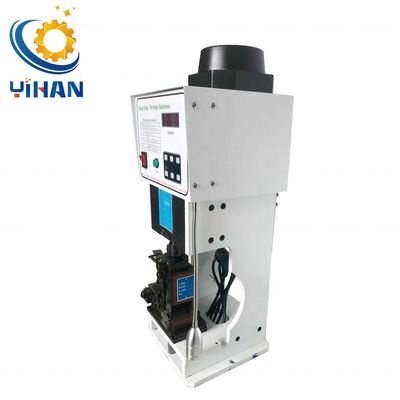

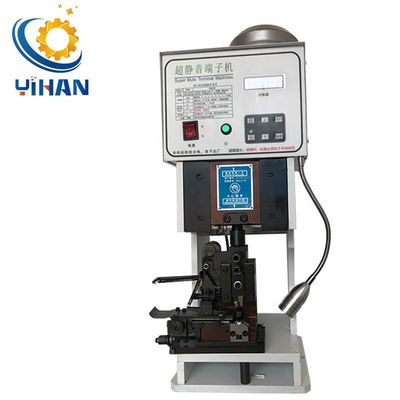

15KN Pressure 1.5 Ton Electric Dynamo Super Mute Automatic Terminal Crimping Machine 3

Product Show

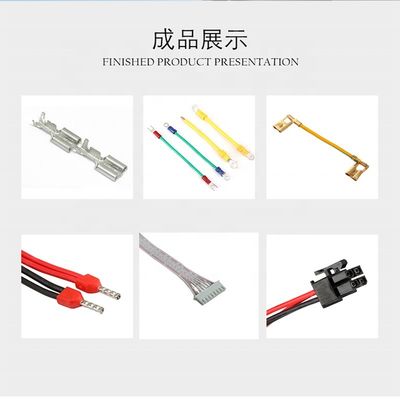

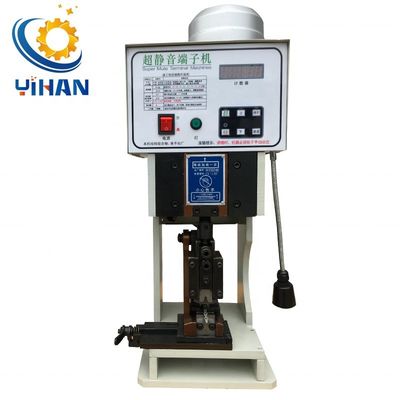

15KN Pressure 1.5 Ton Electric Dynamo Super Mute Automatic Terminal Crimping Machine 7

Company profile

15KN Pressure 1.5 Ton Electric Dynamo Super Mute Automatic Terminal Crimping Machine 8

Contact Details

Yihan (shenzhen) Automation Equipment Co., Ltd.

Contact Person: Ms. Lily Lee

Tel: +8618272164783
