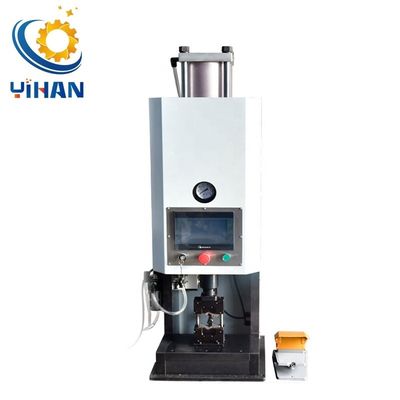

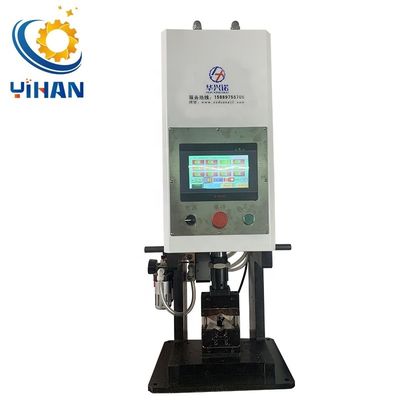

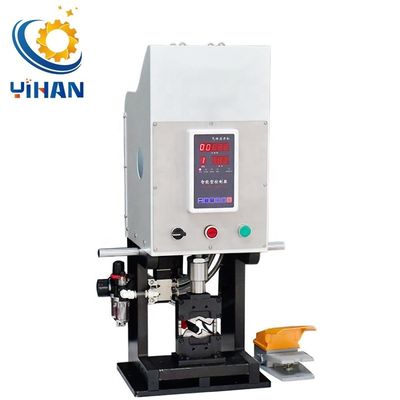

Product Details:
|
| Usage: | Crimping | Power Supply: | 220V 50HZ/60HZ |
|---|---|---|---|
| Operation Method: | Keypad Operation | Control Mode: | Oil Electricity Air |
| Wire Range: | 2.5-50mm2 | Stroke: | 30mm |
| Productivity: | 800~1500pcs/H | Air Pressure: | 0.4-0.8MPA |
| Warranty: | 2year | Weight: | 70KG |
| Size: | 450*350*800mm | Port: | Shenzhen |
Designed for new energy cable, soft cable, charging pile cable, high and low voltage distribution cabinets, automotive cable, large square cable and other industries.

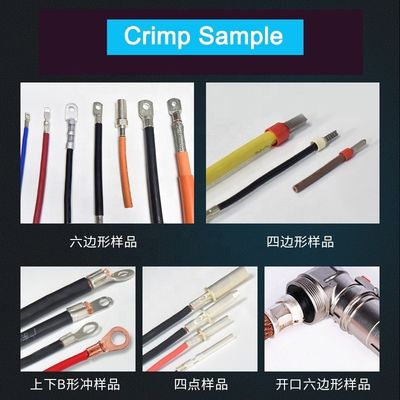

Suitable for all kinds of large terminals, DT copper nose, SC copper nose, OT open terminals, new energy charging piles, etc.
10T machine is suitable for 2.5-95mm2 wire, we also have 20T, 30T, 40T machines for customers to choose

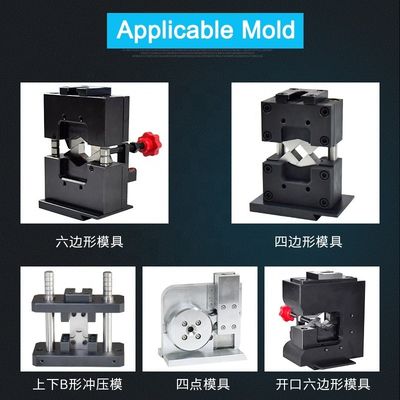

Suitable for hexagonal molds without replacement, quadrilateral molds without replacement, pneumatic molds, etc.
| Model | HXN-6T-Y |
| Voltage | 220V 50-60HZ |
| Operation method | Keypad operation, automatically adjust mold tightness |
| Effective stroke | 30mm |
| Working pressure(KN) | 60 |
| Air Pressure(Pa) | 0.4-0.8Mpa |
| Wire range | 2.5-50mm2 |
| Control method | Oil,Electric,Air |
| Productivity | 800-1500PCS/H |
| Start method | Manual/pedal |
| Suitable mold | Hexagonal mold, Four-side mold, B-type mold, etc. |
| Weight | 70KG |
| Dimensions | 450mm x 350mm x 850mm |
| Model | YH-6T | YH-10T | YH-20T |
| Operation method | Button/touch screen | ||
| Wire Range | 2.5-50mm2 | 2.5-95mm2 | 2.5-180mm2 |
| Stroke | 30mm | 40mm | 40mm |
| Productivity | 800-1500pcs/h | ||
| Start method | Manual/pedal | ||
| Weight | 450*350*800MM | 500*500*1050MM | 500*600*1400MM |
| Size | 70kg | 140kg | 220kg |
1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples
4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
6.Do your product have warranty and refund or return?
Yes, All our products have one year warranty and no reason refund within 7 days after customer received product(customer need to pay for the Return shipping fee
