Product Details:
|
| Usage: | Crimping & Stripping | Power: | AC220V 50-60HZ |
|---|---|---|---|
| Crimping Capacity: | 15KN | Stripping Length: | 0.8-7mm |
| Wire Range: | 0.01-0.75 Mm2 (AWG18-AWG32) | Productivity: | 2600PCS/h |
| Stroke: | 30mm | Warranty: | 1year |
| Size: | 670*570*400mm | Weight: | 62KG |
| After-sales Service: | Online Service | Port: | Shenzhen |
1.Special for stripping and crimping the inner core of sheathed cable at one time.
2.Adopt advanced frequency conversion technology control, energy saving and environmental protection.
3.Stripping cylinder drive, High-speed and accurate positioning.
4.The waste after stripping is vacuum suctioned, and the work area is clean and tidy.
5.The working speed can be adjusted through the operation panel to adapt to the operator’s proficiency.

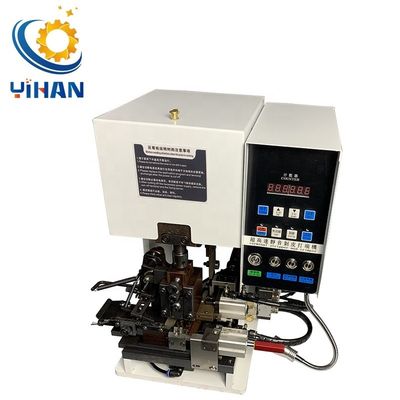

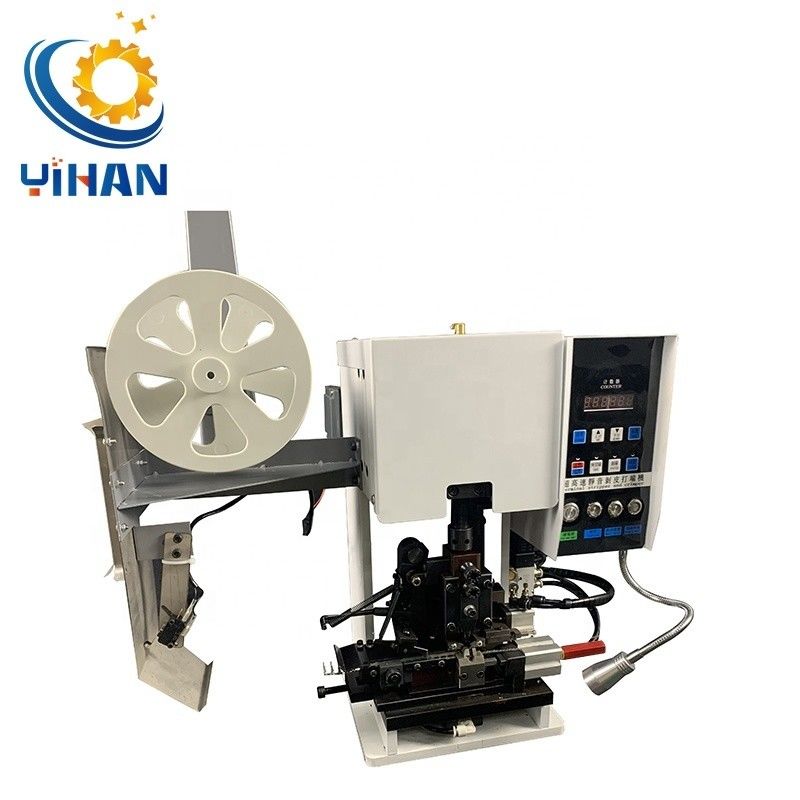

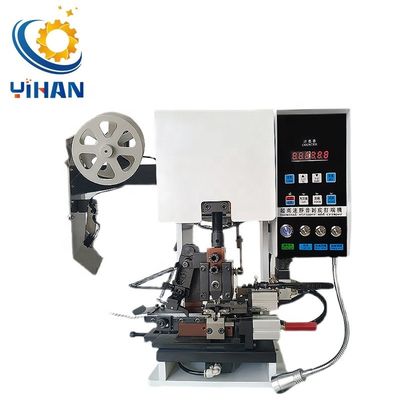

The multi-core sheathed cable stripping and ferrules crimping machine is especially designed for processing the core wires of multi-conductor sheathed cable and single wire , just change the crimping applicator for different terminal
| Model | YH-1800-RY |
| Crimping capacity | 15KN |
| Slide stroke | 30MM |
| Wire Range | 0.1-0.75mm2 (18AWG-32AWG) |
| Stripping length | 0.8-7MM |
| Power supply | 220v/50Hz/60Hz |
| Size | 670*570*400MM |
| Power | 450KW/H |
| Net Weight | 62kg |
| Output | 2600 times/hour |
1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples
4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
