Product Details:
|

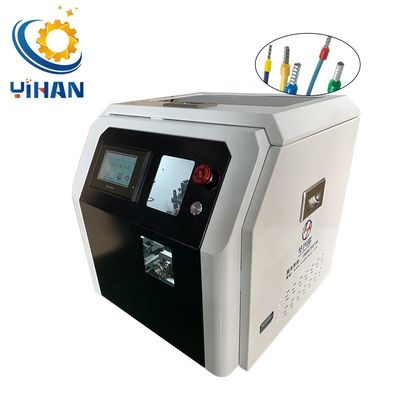

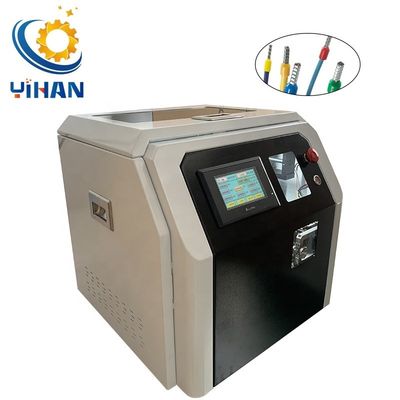

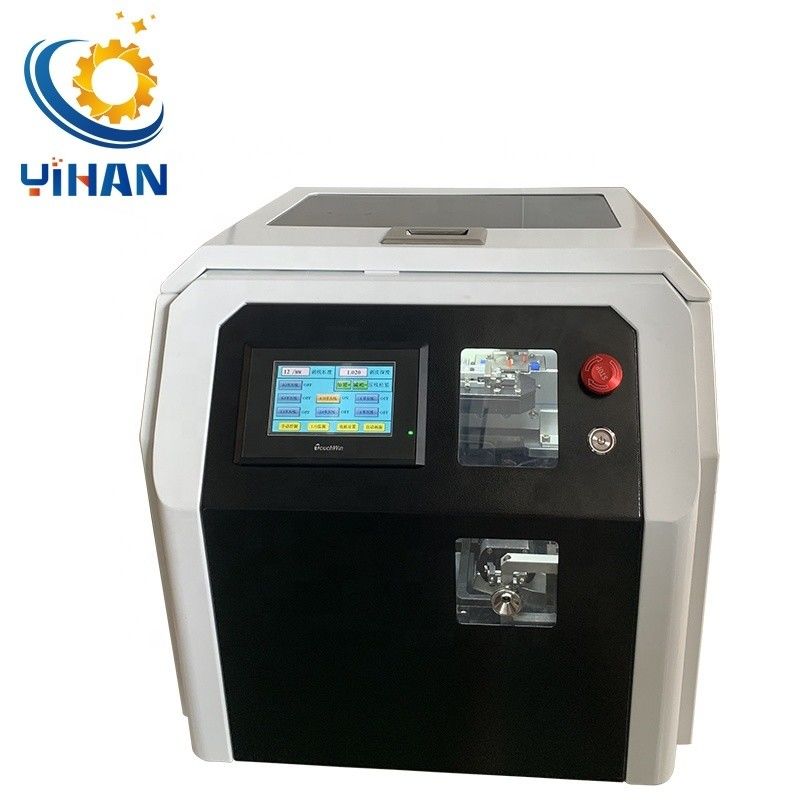

| Usage: | Crimping & Stripping | Name: | Pre-insulated Wire Terminal Stripping Crimping Machine |
|---|---|---|---|
| Wire Range: | 0.5/0.75/1.0/1.5/2.5/4 Mm2 BVR Hard Cable | Terminal Size: | Insulator Length ≤7.5mm,Conductor Length ≤10mm |
| Suitable Terminal: | Tubular Terminal,bulk Insulated Terminal | Crimping Speed: | 2.5 S/one End |
| Air Pressure: | 0.6-0.8MPA | Warranty: | 1year |
| Size: | 500*510*460mm | Weight: | 60KG(After Packing 76KG) |
| Power Supply: | 220V 50HZ/60HZ |
| Model | YH-1510VE |
| Operation mode | Automatic trigger operation and manual operation |

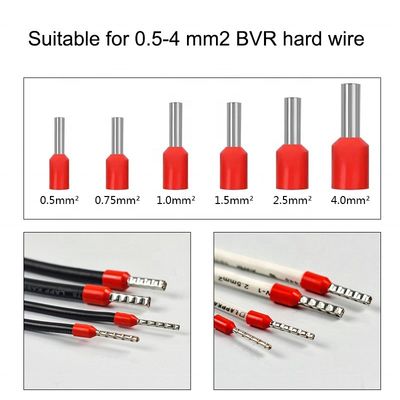

| Wire Size | BVR wire 0.5,0.75,1.0,1.5,2.5,4.0mm2 |
| Stripping Length | Max 17mm |
| Terminal size | Insulator length ≤7.5mm,conductor length≤10mm |
| Crimp Shape | Quadrilateral Crimp |
| Production capacity | 2.5s /wire |
| Air supply | 0.6-0.8Mpa |
| Power | 220V 50-60HZ |
| Weight | 60KG(After packing 76KG) |
| Size | 550*560*600mm |
| | |
