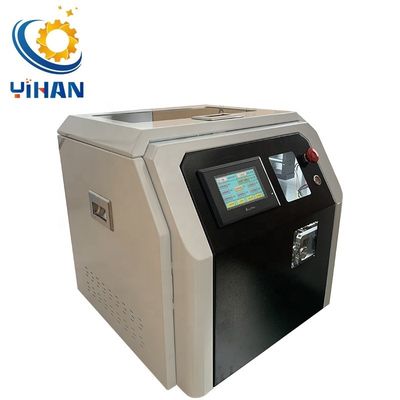

Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end

Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end
Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end

Large Image :  Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end

Product Details:
Place of Origin: Guangdong, China
Brand Name: Yihan
Model Number: YH-1510VE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $4,000.00 - $5,000.00/sets
Packaging Details: wooden package
Supply Ability: 1000 Set/Sets per Month
Contact Now

Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end

Description
Usage: Crimping & Stripping Name: Pre-insulated Wire Terminal Stripping Crimping Machine
Wire Range: 0.5/0.75/1.0/1.5/2.5/4 Mm2 BVR Hard Cable Terminal Size: Insulator Length ≤7.5mm,Conductor Length ≤10mm

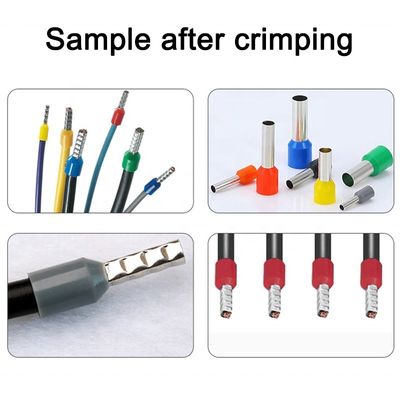

Suitable Terminal: Tubular Terminal,bulk Insulated Terminal Crimping Speed: 2.5 S/one End
Air Pressure: 0.6-0.8MPA Warranty: 1year
Size: 500*510*460mm Weight: 60KG(After Packing 76KG)
Power Supply: 220V 50HZ/60HZ Port: Shenzhen

Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end 0Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end 1Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end 2



Model YH-1510VE
Operation mode Automatic trigger operation and manual operation

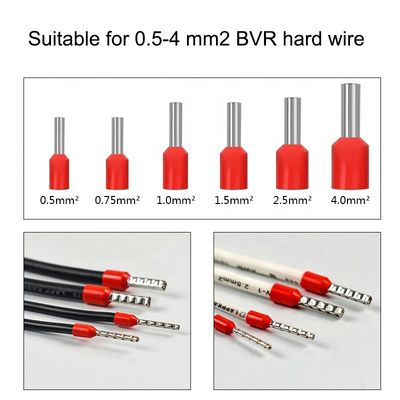

Wire Size BVR wire 0.5,0.75,1.0,1.5,2.5,4.0mm2
Stripping Length Max 17mm
Terminal size Insulator length ≤7.5mm,conductor length≤10mm
Crimp Shape Quadrilateral Crimp
Production capacity 2.5s /wire
Air supply 0.6-0.8Mpa
Power 220V 50-60HZ
Weight 60KG(After packing 76KG)
Size 500*550*460mm(After packing 550*560*600MM)

Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end 3Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end 4


Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end 5



Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end 6 Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end 7 Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end 8

Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end 9Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end 10Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end 11Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end 12Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end 13Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end 14Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end 15
Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end 16

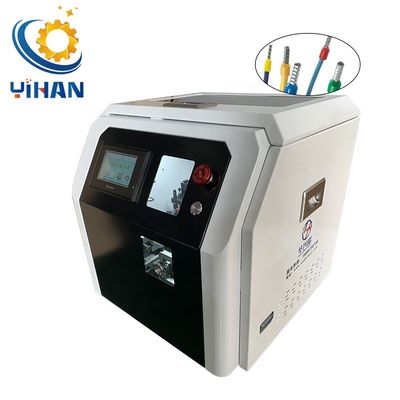

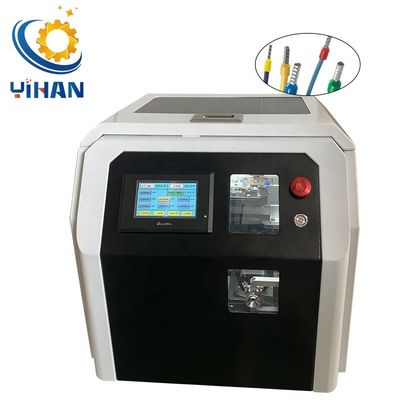

Product Show

Ferrules Pre-insulated Ring Terminal Crimping Machine and Crimping Speed 2.5 s/one end 17
