Product Details:
|
| Usage: | Crimping | Power: | AC220V 50-60HZ |
|---|---|---|---|
| Product Name: | Tubular Ferrule Pre-insulated Terminal Crimping Machine | Crimping Capacity: | 3.0KN |
| Wire Specification: | AWG#6-AWG#32 | Power Supply: | 1100W |
| Customized: | Support | Crimping Shape: | Quadrilateral Shape |
| Productivity: | 1000-2000 Pcs /h | Net Weight: | 60KG |
| Size: | 300*280*660mm | Port: | Shenzhen |

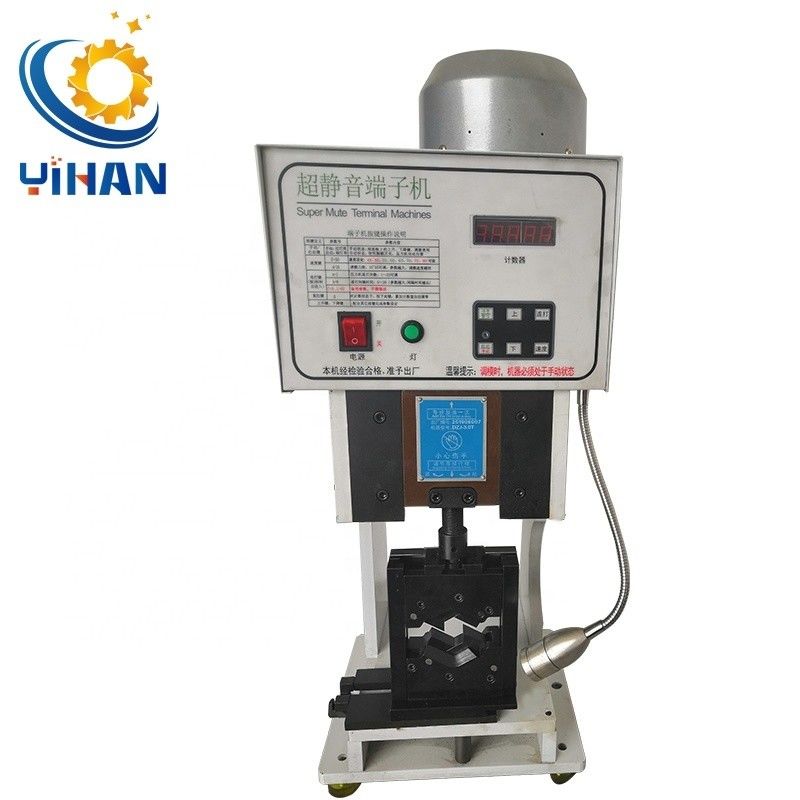

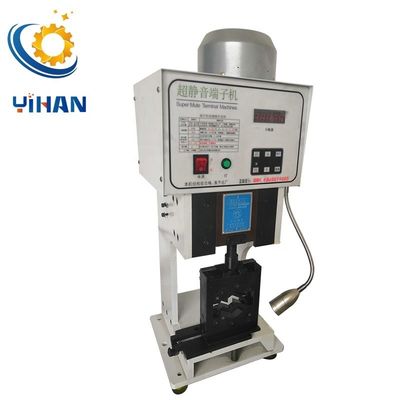

Semi automatic pre-insulated wire terminal crimping machine tubular terminal ferrule wire crimp machine
Introduction:
•1Super mute terminal machine, using high frequency technology, electronics precise positioning.Motor operating noise smaller than traditional terminal when crimping , save electricity, transfer mode is more convenient, avoid common failures as the traditional terminal clutch / solenoid meet.
Characteristic description:
• Adapt to a variety of tubular closed terminal .Integrally mold machine, no need change the mold, rapid, time-saving.
• Voltage stability, speed, high accuracy.
• 0-16 square terminal,no debugging,directly pressed into Quadrilateral . Computer terminals, DT/DTG terminals, JGY/JG terminal,GTY-1R terminal.single grain terminal.
• Compact structure, easy to move in the workplace,Operation Silent.
| Product Name | Single needle tube terminal crimping machine |
| Model | YH-3.0T4B |
| Crimping capacity | 3.0KN |
| Wire specification | AWG#6~AWG#32 |
| Crimping shape | Quadrilateral |
| Power supply | AC220V/50HZ |
| Size | 300*280*660mm |
| Weight | 60KG |
| Production capacity | 1000-2000pcs/h |

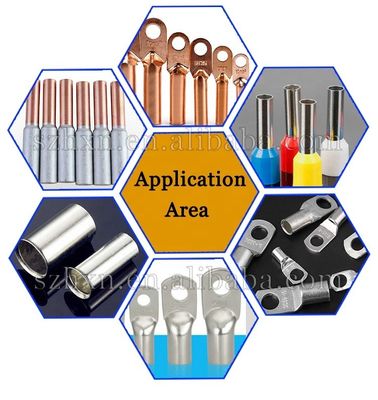

| Applicable terminal | DT/DTG terminals, JGY/JG terminal,GTY-1R terminal etc.Tubular closed terminal. |
| Applicable wires | USB multi-core cable, sheathed cable, shielded cable, power lines, data lines, computer multi-core wire shielded multi-core cable and other |
