440*400*720mm Semi-Automatic Electric Tube Crimping Machine for JST Ferrule Terminals

1.5t 2t shenzhen super mute electric tube insulated terminal connectors crimping machine jst ferrule crimper

1:Super mute terminal machine, using high frequency technology, electronics precise positioning.

2:Motor operating noise smaller than traditional terminal when crimping , save electricity, transfer mode is more convenient, avoid common failures as the traditional terminal clutch / solenoid meet.

1:Cassette mold, replacement is easy/ fast and save time.

2:Conversion and no clutch, fixed-point accurate, fast, no noise.

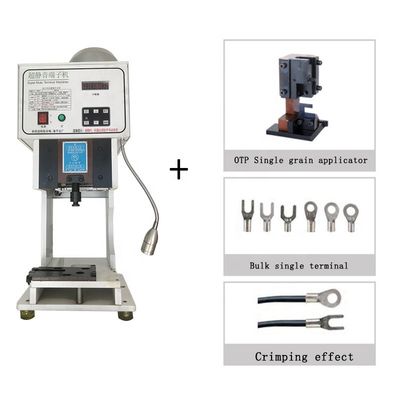

3:Computer terminals, DC terminals, AV terminals, single grain terminal, associated terminals.

4:Compact structure, easy to move in the workplace

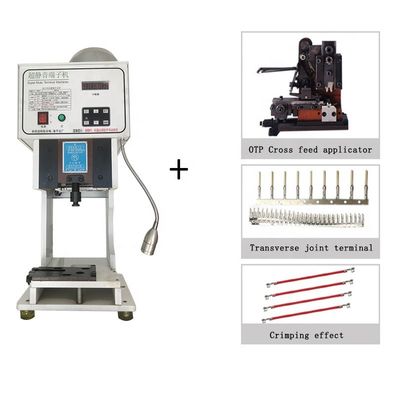

5:Suitable for OTP Transverse mode, OTP anti straight mold, 2000 #, 950 #.

Model	YH-1.5T	YH-2.0T	YH-3.0T	YH-4.0T
Crimp-Force	15KN	20KN	30KN	40KN
Wire Range	0.1-2.5mm2	0.1-6mm2	0.1-10mm2	0.1-35mm2
Storke	30MM	30MM (40MM customized)	30MM (40MM customized)	30MM (40MM customized)
Power Supply	220V 50-60HZ	220V 50-60HZ	220V 50-60HZ	220V 50-60HZ
Power	0.55KW/H	0.75KW/H	1.1KW/H	1.5KW/H
Weight	38KG	47KG	66KG	95KG
Dimensions	215*230*600mm	215*245*640mm	240*270*700mm	260*305*740mm

1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.

2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery

3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples

4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication

5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
