Product Details:
|
| Usage: | Cutting | Useage: | Cutting Tubes |
|---|---|---|---|
| Stripping Length: | 0.1mm~9999.9mm | Cutting Tolerance: | 0.1mm |
| Shear Diameter: | 1-38mm | Weight: | 66KG |
| Power Supply: | AC 220V 50/60Hz | Power: | 560W |
| Speed: | 60-210times/min | Size: | 650*480*420mm |

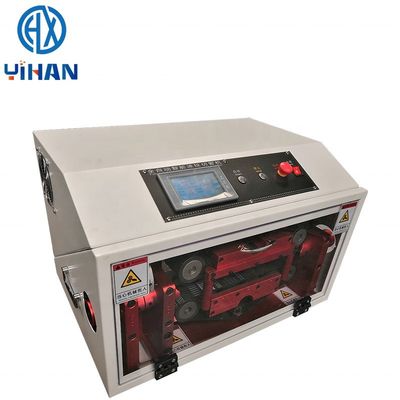

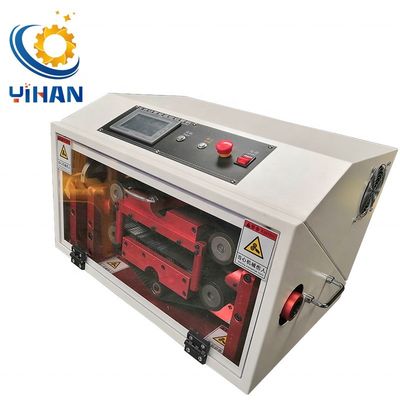

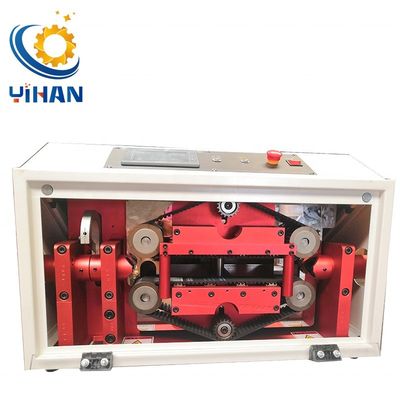

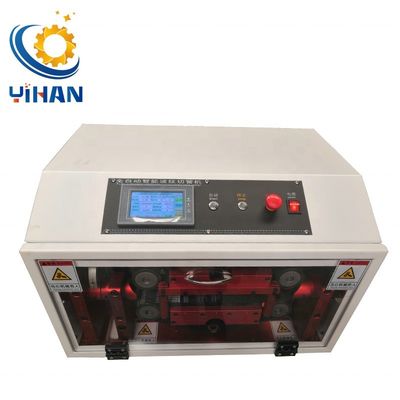

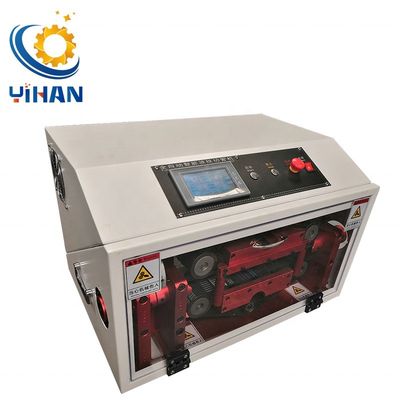

Factory wholesale automatic bellows cutting machine
FEATURE:
1.Specially designed for the corrugated pipe processing of the automotive wire harness industry, high-precision PLC control, easy to understand.

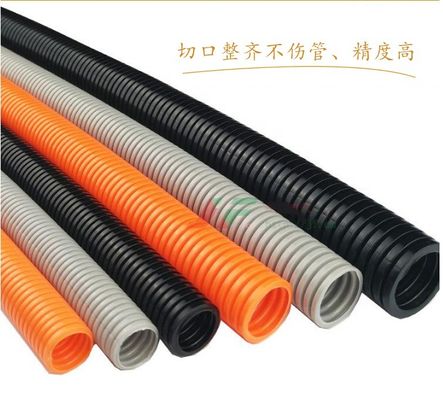

2.Can be used for round plastic round tube, bellows cutting, high processing efficiency, stable and reliable.
3.Feeding with stepper motor, it has the characteristics of stable feeding and accurate length. The circuit uses integrated circuits for stable control and simple maintenance.
| Model | YH-1200 |
| Power supply | 220V 40/60HZ |
| Power | 560W |
| Cutting length | 0.1-9999.9mm |
| Cutting accuracy | ±0.1mm |
| cutting speed | 60-110times/minute |
| Productivity | L=100mm, 100pcs/m |
| Dimension | 650*480*420mm |
| Weight | 66kg-84KG |
