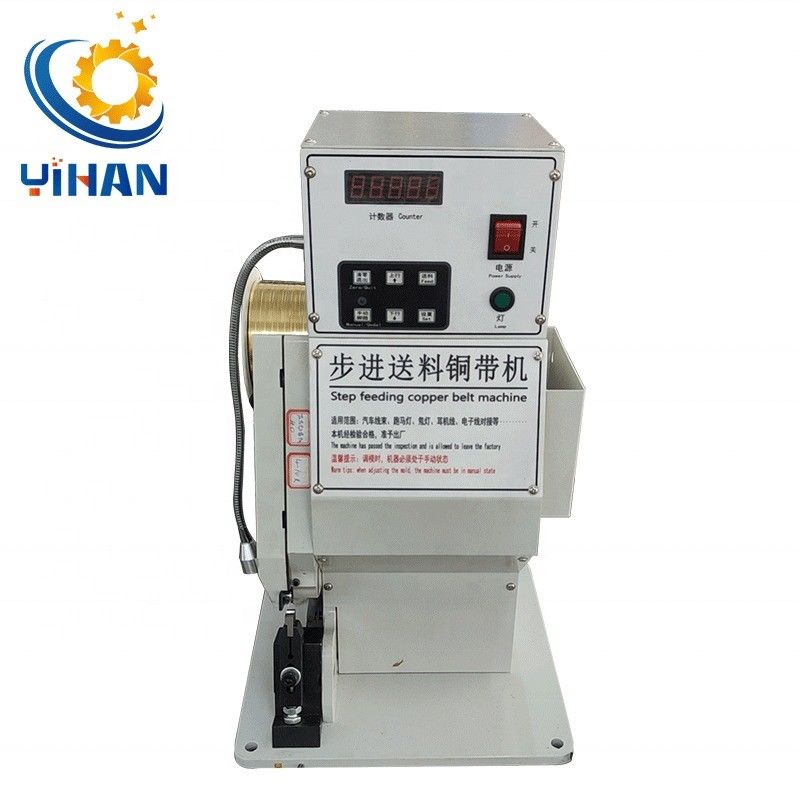

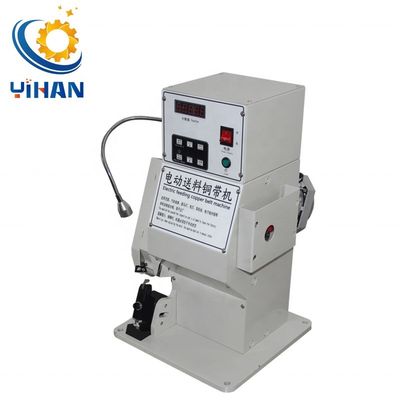

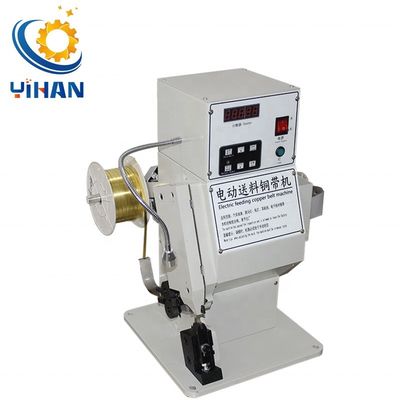

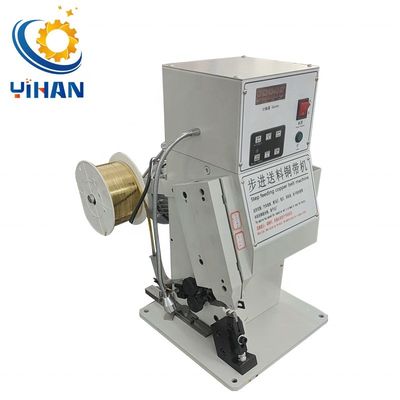

Product Details:
|
| Usage: | Crimping | Product Name: | Electric Feeding Copper Belt Machine |
|---|---|---|---|
| Power Supply: | AC220/50Hz | Power: | 750W |
| Crimping Stroke: | 30mm | Weight: | 46kg |
| Work Efficiency: | 2000 Times/hour | Dimension: | 480*360*540mm |
| Application Copper Strip: | 1.0mm,1.5mm,2.0mm,4.0mm,6.0mm | Warranty: | 1year |
| Keywords: | Electric Feeding Copper Belt Machine |
1: This machine is designed for the wire that needs riveting, pressing the riveting and connecting the wire to replace the traditional welding method.
2: Using special continuous copper strip terminal, the material is cut, formed, pressed once, quickly and without waste, saving cost.
3: The copper belt is treated by special grain, and the endurance is very strong after riveting.

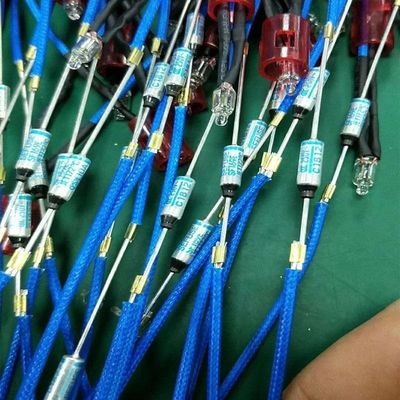

Scope of application: the connection between the xenon lamp and the resistor, the connection between the slide switch and the wire, the connection between the high temperature heating elements, and the connection between the thermosensitive elements.
| Product Name | Electric feeding copper belt machine |
| Model | YH-TD3.0 |
| Nominal pressure | 20KW |
| Motor Power | 750W |
| Crimping stroke | 30mm |
| Work efficiency | 2000 times/hour |
| Weight | 46KG |
| Dimension | 480*360*540mm |
| Applicable copper strip | 1.0mm,1.5mm,2.0mm,4.0mm,6.0mm |
