Product Details:
|

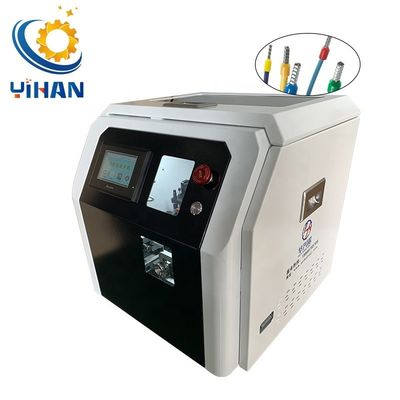

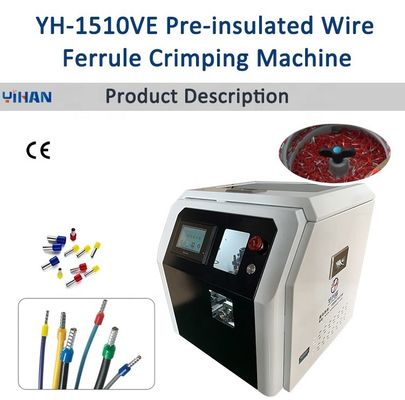

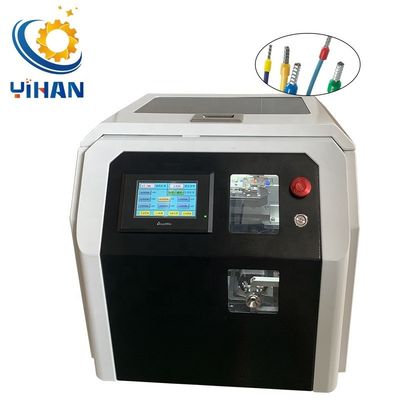

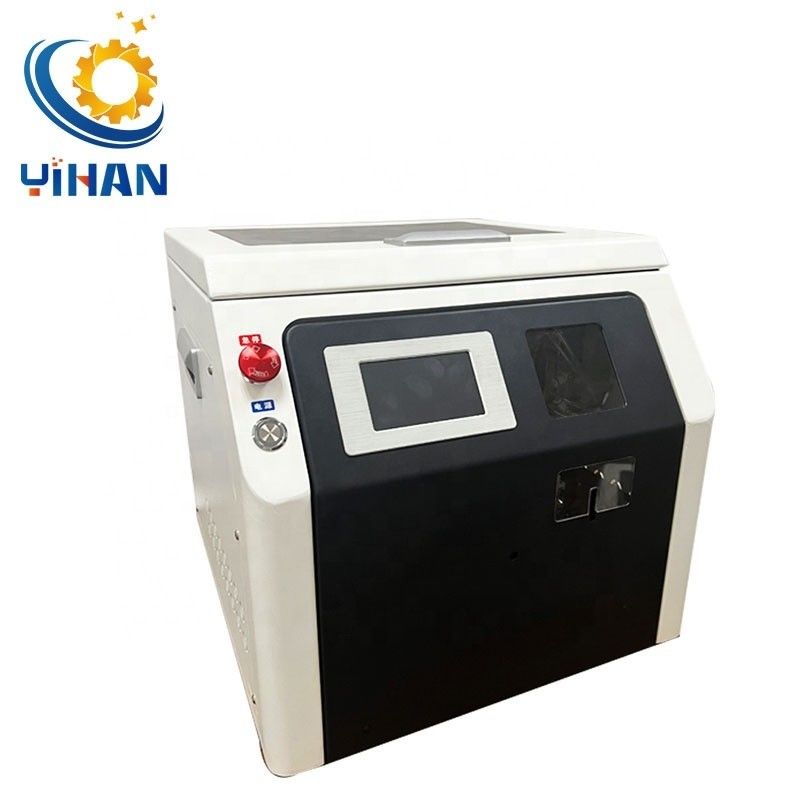

| Usage: | Crimping & Stripping | Name: | Automatic Bulk Tube Pre-Insulation Terminal Crimping Machine |
|---|---|---|---|
| Wire Range: | 0.5/0.75/1.0/1.5/2.5/4 Mm2 BVR Hard Cable | Terminal Size: | Insulator Length ≤7.5mm,Conductor Length ≤10mm |
| Suitable Terminal: | Tubular Terminal,bulk Insulated Terminal | Crimping Speed: | 2.5 S/one End |
| Air Pressure: | 0.6-0.8MPA | Warranty: | 1year |
| Size: | 500*510*460mm | Weight: | 60KG |
| Power Supply: | 220V 50HZ/60HZ |
| 1. The complex process can be simplified, and the overall efficiency is 3-4 times, which has a large cost advantage. |
| 2. There is no need to change the vibration plate in the scope of the terminal, and instantly change the specifications of different terminals. |
| 3. The threaded peeling pressure is completed in one time, mainly for the pressure connection of the international standard pipe terminal. |
| 4. The line extension is used to make the threading convenient. |
| 5. The strip diameter is automatically adjusted and the pressure height is adjusted automatically. |
| 6. Sensitive pneumatic induction control is adopted, and the pressure is fast. |
| 7. It is convenient and quick to replace the terminals by using vibrating disk feeding mode. |
| 8. Adopting imported components, the cylinder performance is stable. |

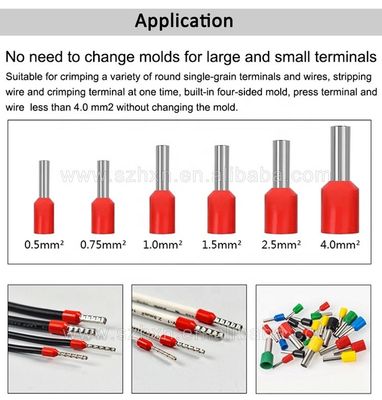

1:tubular terminal,bulk insulated terminal
2:0.5/0.75/1.0/1.5/2.5/4 mm2 BVR hard cable
3:Insulator length ≤7.5mm,Conductor length ≤10mm
| Model | YH-4.0D |
| Operation mode | Automatic trigger operation and manual operation |
| Wire size | BVR wire 0.5,0.75,1.0,1.5,2.5,4.0mm2 |
| Stripping length | Max.17mm |
| Terminal size | Insulator length ≤7.5mm,conductor length≤10mm |
| Crimp Shape | Quadrilateral Crimp |
| Production capacity | 2.5s /wire |
| Air supply | 0.6-0.8Mpa |
| Working temperature | 10~25℃ |
| Power source | AC220V/110V/50/60HZ |
| Weight | 40KG |
| Dimensions | W350mm×L450mm×H400mm |
