Product Details:
|
| Usage: | Crimping | Power Supply: | 220V/50Hz |
|---|---|---|---|
| Product Name: | Copper Belt Wire Connector Crimping Machine | Weight: | 50kg |
| Pressing Capicity: | 1.8T | Crimping Stroke: | 30mm |
| Work Efficiency: | 2000 Times/hour | Dimension: | 370*350*470mm |
| Application Copper Strip: | 1.0mm,1.5mm,2.0mm,4.0mm,6.0mm | Product Name: | Efficiency Terminal Crimping Copper Belt Crimp Wire Splicing Machine |
| Warranty: | One Year |

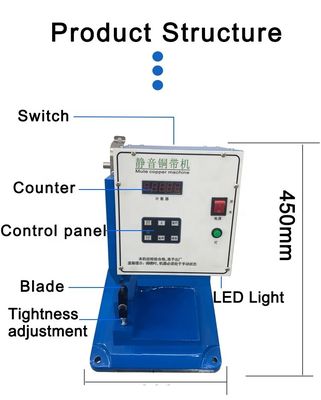

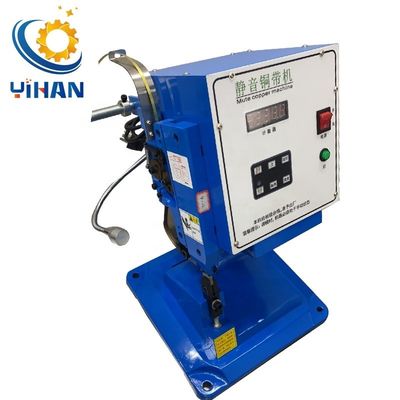

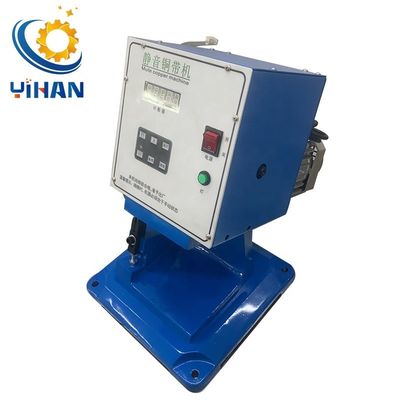

YH-1.8TL Copper belt wire connector crimping machine
Features:
1: This machine is designed for the wire that needs riveting, pressing the riveting and connecting the wire to replace the traditional welding method.

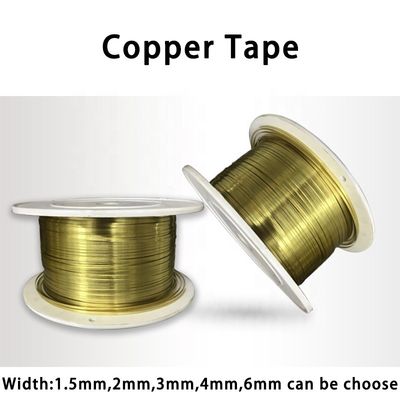

2: Using special continuous copper strip terminal, the material is cut, formed, pressed once, quickly and without waste, saving cost.
3: The copper belt is treated by special grain, and the endurance is very strong after riveting.

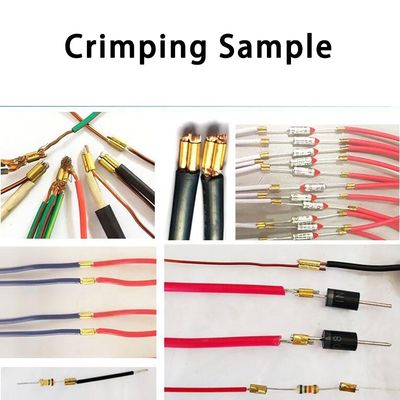

4: Scope of application: the connection between the xenon lamp and the resistor, the connection between the slide switch and the wire, the connection between the high temperature heating elements, and the connection between the thermosensitive elements.
| Product Name | Copper belt wire connector crimping machine |
| Model | YH-1.8TL |
| Pressing capicity | 1.8T |
| Crimping stroke | 30mm |
| Work efficiency | 2000 times/hour |
| Weight | 50KG |
| Dimension | 370*350*470mm |
| Applicable copper strip | 1.0mm,1.5mm,2.0mm,4.0mm,6.0mm |
