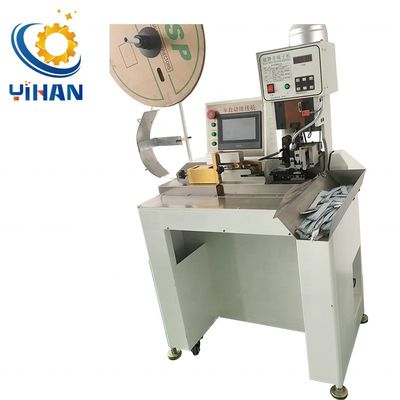

Multifunctional Flat Ribbon Cable Splitting Crimping Machine for Ribbon Wire Harness

Large Image : Multifunctional Flat Ribbon Cable Splitting Crimping Machine for Ribbon Wire Harness

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Yihan
Model Number:	YH-PX020

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$3,000.00 - $4,000.00/sets
Packaging Details:	Wooden case
Supply Ability:	500 Set/Sets per Month

Contact Now

Multifunctional Flat Ribbon Cable Splitting Crimping Machine for Ribbon Wire Harness

Description

Usage:	Multifunctional, Crimping	Product Name:	Automatic Ribbon Cable Terminal Crimping Machine
Application:	Terminal Crimping Machines	Weight:	150KG
Wire Range:	2-20P (Ribbon Cable )	Voltage:	AC220V/50HZ
Pressure Ability:	1.5T	The Length Of The Wire:	The Shortest 65MM
The Length Of The Separate Lines:	The Shortest 28MM	Size:	14008001550mm
Port:	Shenzhen

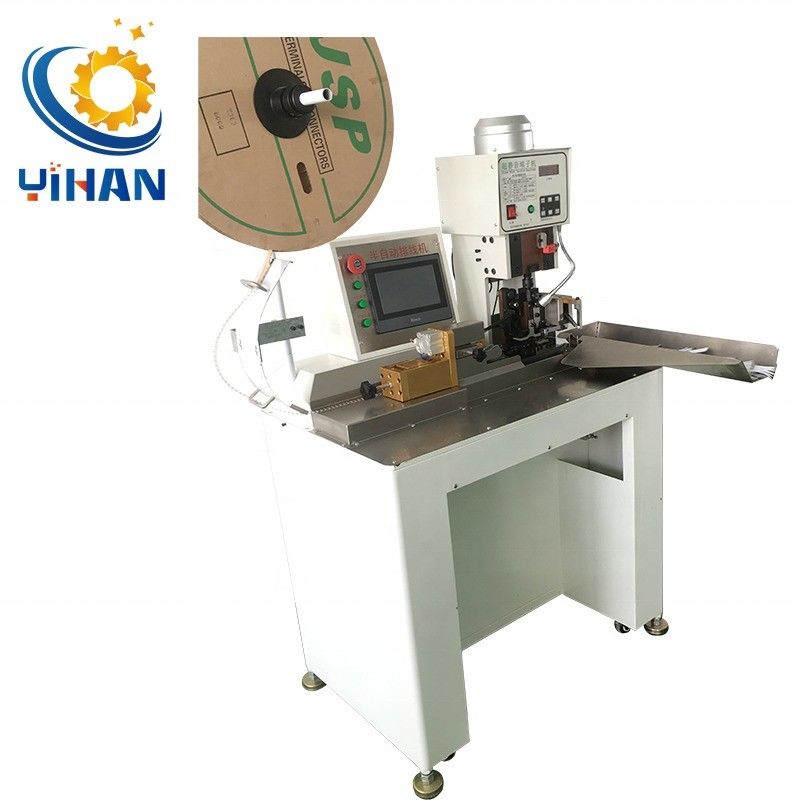

Multifunctional Flat Ribbon Cable Splitting Crimping Machine for Ribbon Wire Harness 0

YH-PX020 Automatic 24AWG Flat Ribbon cable terminal crimping machine

Features:

1. PX020 is the latest automatic terminal cable machine with the fastest terminal speed. It can be replaced with OTP transverse mode.

2. Simpler operation than the old model, quick commissioning, up to 10K harness terminal / hour.

3. Adopting new CNC debugging parameters and LCD display, greatly reducing the labor intensity of workers and improving production efficiency.

4. There is no need to train.

5.Suitable for PH/ZH/EH/XH,etc Rehearsal communication electronics.

Terminal for SM/VH/SCN dupont strip connectors.

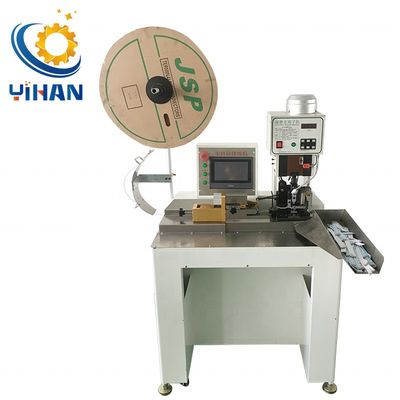

Multifunctional Flat Ribbon Cable Splitting Crimping Machine for Ribbon Wire Harness 3

Product Description

Product Name	YH-PX020 Automatic Ribbon cable terminal crimping machine
Model	YH-PX020
Pocessed wire range	2P-20P
Processing speed	11000pcs/h
The length of the wire	The shortest 65MM
The length of the separate lines	The shortest 28MM
Crimping capacity	1.5Ton
Dimension	1400X800X1550mm
Power supply	Single-phase power AC220V 50/60HZ

Multifunctional Flat Ribbon Cable Splitting Crimping Machine for Ribbon Wire Harness 4

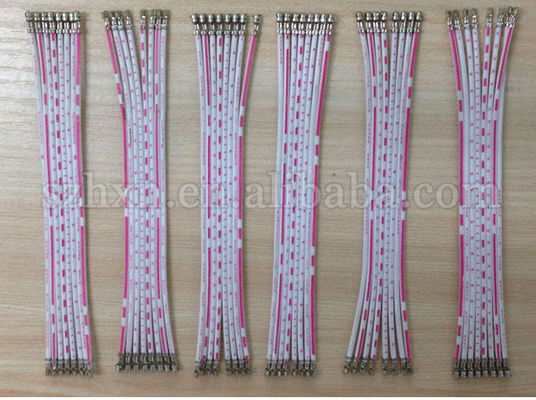

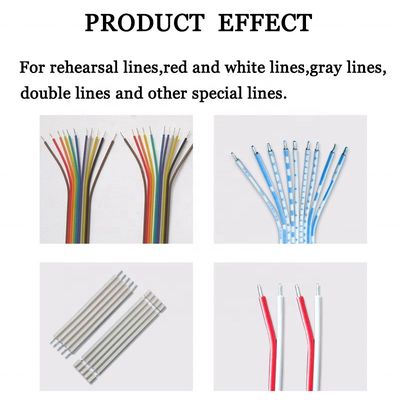

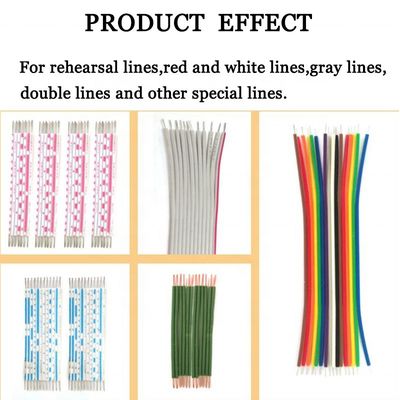

Product show

Multifunctional Flat Ribbon Cable Splitting Crimping Machine for Ribbon Wire Harness 9

Company profile

Multifunctional Flat Ribbon Cable Splitting Crimping Machine for Ribbon Wire Harness 10

Contact Details

Yihan (shenzhen) Automation Equipment Co., Ltd.

Contact Person: Ms. Lily Lee

Tel: +8618272164783
