Product Details:
|
| Usage: | Multifunctional | Product Name: | Cross Stripping Terminal Machine |
|---|---|---|---|
| Power: | AC220V 50HZ | Air Pressure: | 0.4-0.6Mpa |
| Wire Range: | AWG18#~AWG32# | Stripping Length: | 1.0-7.0mm |
| Net Weight: | 80kg | Stroke: | 30/40 Mm |
| Warranty: | One Year | After-sales Service: | On-line Support |

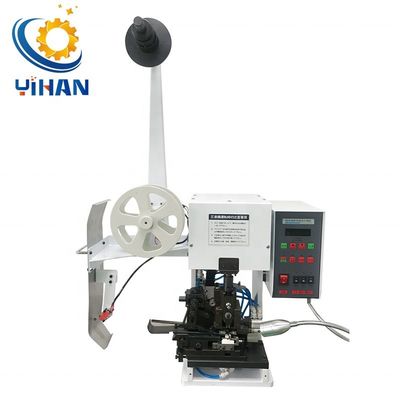

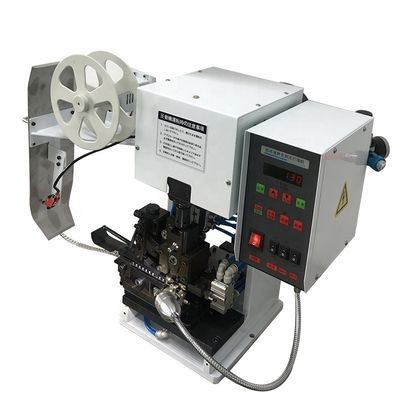

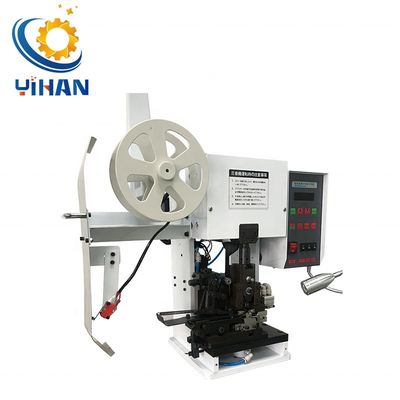

YH-1800C Cross Stripping Terminal Machine
Introduction:
High speed silent peeling machine adopt advanced inverter technology for precise motor control inverter crash.Low voice, low power, high speed, pneumatic part of all of Taiwan's Mindman ,Chelic , SMC and other brand components, precise and durable, adapt to a variety of cross-type terminal strip, stripping crimping terminal completed together, the terminals and stripping position reunification.
Characteristic description:
1800 Stripping & Crimping machine, terminal machine, stripping machine crimping terminals, mute terminal machines,
l stripping crimping terminal completed together,The same central control of the stripping Crimping, with automatic collection of waste paper function;
l Same speed with the common terminal machine , fast and accurate, small, lightweight design, Stripping mechanism adjust quickly ;
l With manual adjustment function, convenient debugging;
l Mute strip terminal machine and low noise, safety, energy saving;
l Frequency control circuit board, durable, stable, ease of use;
l Mechanical movement, easy adjustment;
l Waste collected automatically
| Product Name | Cross stripping terminal machine |
| Model | YH-1800C |
| Crimping capacity | 1.8KN |
| Wire specification | AWG#18~AWG#32 |
| Peeling length | 0.8~7mm |
| Power supply | AC220V/50HZ |
| Size | 400*600*850mm |
| Weight | 60KG |
| Production capacity | 3600pcs/h |
| Applicable wires | USB multi-core cable, sheathed cable, shielded cable, power lines, data lines, computer multi-core wire shielded multi-core cable and other |
