Product Details:
|
| Usage: | Crimping | Crimping Capacity: | 40KN |
|---|---|---|---|
| Wire Range: | 1-35Mm2 (AWG1-AWG32) | Crimp Shape: | Hexagon |
| Blade Thickness: | 10mm(Other Sizes Can Be Customized) | Productivity: | 1000-2000PCS/h |
| Stroke: | 0-30mm | Power: | AC220V 50HZ |
| Warranty: | 1year | Weight: | 84KG |
| Size: | 440*400*720mm |

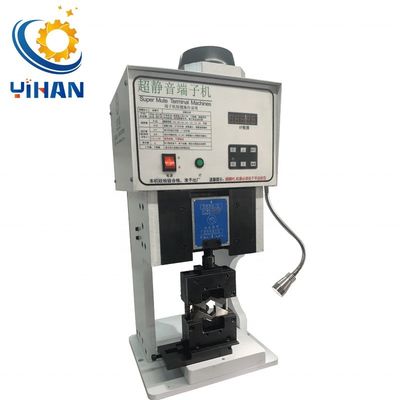

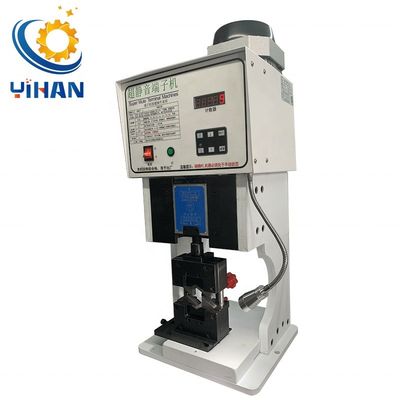

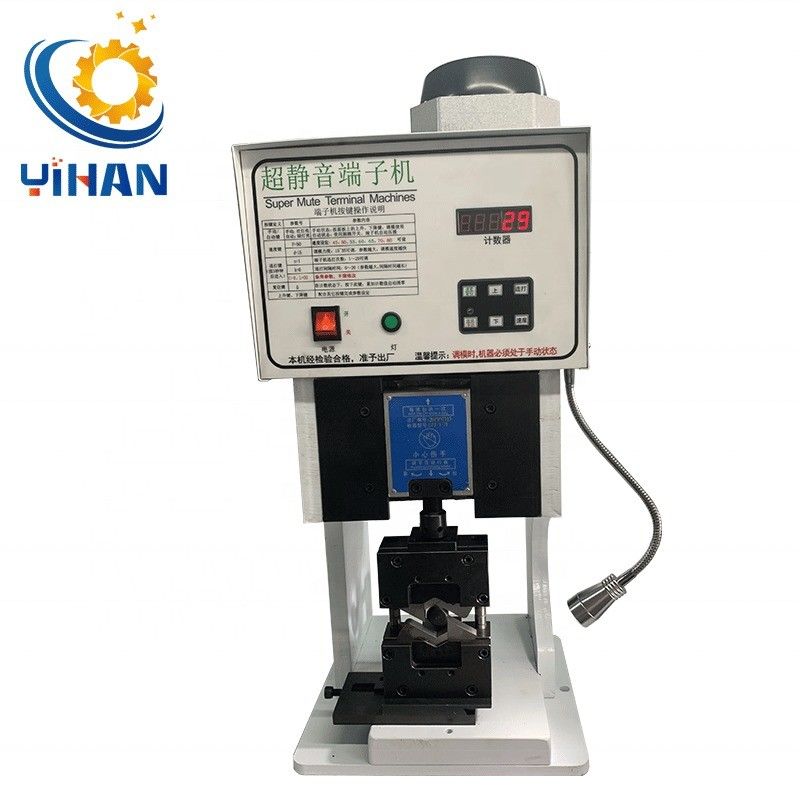

Big wire cable aviation round tube terminal hexagonal crimping machine for hexagonal crimping die applicator
1:Super mute terminal machine, using high frequency technology, electronics precise positioning.
2:Motor operating noise smaller than traditional terminal when crimping , save electricity, transfer mode is more convenient, avoid common failures as the traditional terminal clutch / solenoid meet.
3.There is no need to change the mold for different size wire and terminal, saving the time of changing the mold repeatedly.
4.1-35mm2 wires and terminals, crimped into hexagonal shape, no need to replace any accessories, efficient and fast
1:Cassette mold, replacement is easy/ fast and save time.
2:Conversion and no clutch, fixed-point accurate, fast, no noise.
3:Computer terminals, DC terminals, AV terminals, single grain terminal, associated terminals.
4:Compact structure, easy to move in the workplace
5:Suitable for OTP Transverse mode, OTP anti straight mold, 2000 #, 950 #.
6:Suitable for all kinds of European style tubular terminals, DT series terminals, SC series terminals, OT series open terminals, OT series closed terminals, and various single bulk large square terminals
| Model | YH-4.0T |
| Crimping capacity | 40KN |
| Machine Slide stroke | 30MM(40mm) |
| Crimp shape | hexagon |
| Wire range | 1-35mm2(1AWG-32AWG) |
| Blade thickness | 10mm(Other size can be customize) |
| Power supply | 220v/50Hz/60Hz |
| Size | 400*400*750 |
| Power | 1.5KW |
| Weight | 90kg |
| Output | 1000-2000times/hour |
| Suit applicator | OTP Horizontal mold, straight mold, single-grain mold |
| Note | The corresponding wire size above is for reference only, and the thickness and hardness of the terminal must also be considered. |
| Model | YH-1.5T | YH-2.0T | YH-3.0T | YH-4.0T |
| Photo | | | | |
| Crimp-Force | 15KN | 20KN | 30KN | 40KN |
| Wire range | 0.1-2.5mm2 (14AWG-32AWG) | 0.1-6mm2 (10AWG-32AWG) | 0.1-10mm2 (7AWG-32AWG) | 0.1-35mm2 (1AWG-32AWG) |
| Storke | 30MM | 30MM (40MM customized) | 30MM (40MM customized) | 30MM (40MM customized) |
| Power Supply | 220V 50-60HZ | 220V 50-60HZ | 220V 50-60HZ | 220V 50-60HZ |
| Power | 0.55KW/H | 0.75KW/H | 1.1KW/H | 1.5KW/H |
| Weight | 38KG | 47KG | 66KG | 85KG |
| Dimensions | 215*230*600mm | 215*245*640mm | 240*270*700mm | 260*305*740mm |
| Note | The corresponding wire size above is for reference only, and the thickness and hardness of the terminal must also be considered. | |||
