Product Details:
|
| Usage: | Tying | Name: | Nylon Cable Tie Machine |
|---|---|---|---|
| Function: | Bundled Products | Keywords: | Cable Tie Machine |
| Applicable Tie Width: | 2.5-5mm (0.12-0.20in) | Max Bundling Diameter: | 30mm |
| Warranty: | 12 Months | Size: | 1200 * 550 * 780 Mm |
| After-sales Service: | Online Support | Capacity: | 1200-1500 Pcs/h |
| Air Pressure: | 0.5-0.8MPa |

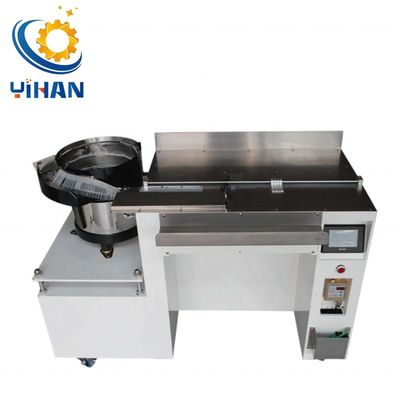

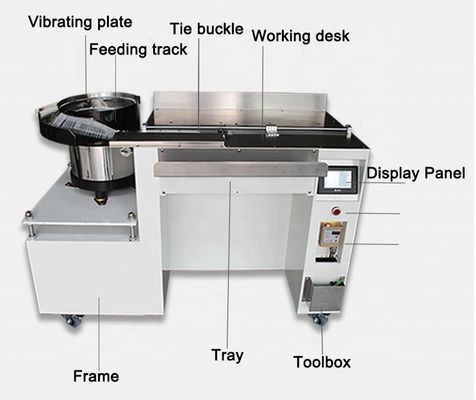

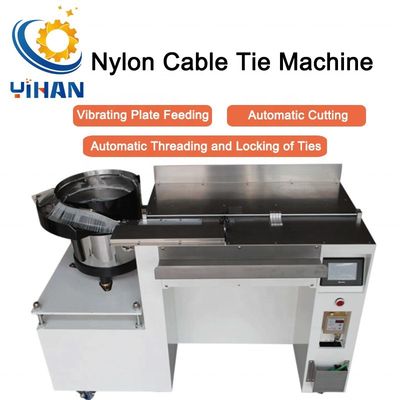

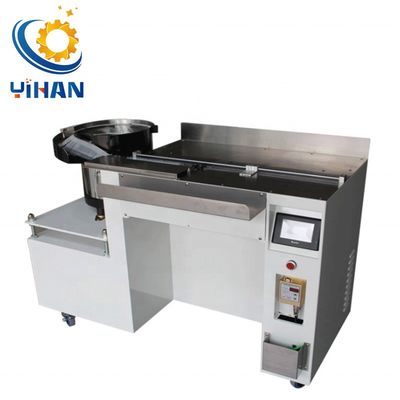

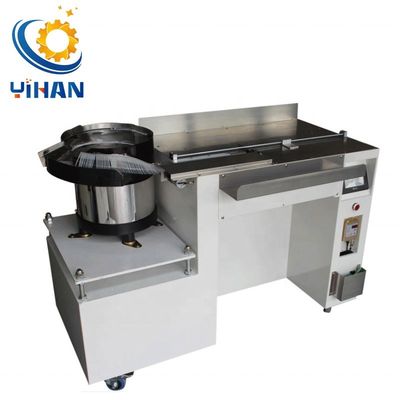

1 .This nylon cable tying machine adopts vibration plate to feed the nylon cable ties to work position continuously. The operator only need to put the wire harness to correct position and then press down the foot switch, then the machine will finish all tying steps automatically.
2.The automatic cable tie tying machine is widely used in automotive wire harness, appliance wire harness and other industries.
3.PLC touch screen control, clear and intuitive, easy to operate.
4.High degree of automation, good consistency, fast speed.
5.The tightness and tying length can be set through program, and the operator only needs to put the wire harness around the binding mouth, and the machine automatically senses and ties wires.
Widely used inautomotive wire harness, appliance wire harness and other industries. electronics factories, bundled TVs, computers and other internal electrical connections, lighting fixtures, motors, electronic toys and other products in fixed circuits, mechanical equipment oil pipelines fixed, ship cables fixed. The car is packed or bundled with other objects, and can also be used for strapping items such as wire, air-conditioning capillaries, toys, daily necessities, agriculture, gardening, and handicrafts.
| Model | YH-80L |
| Cable tie width | 2.5 - 5 mm |
| Tying Diameter | 2 - 30 mm |
| Tail length | 0 - 3 mm |
| Maximum tension force | 15 N |
| Activation | By foot pedal |
| Productivity | 1200 - 1500 pcs./h |
| Compressed air connection | 0.6 MPa |
| Power supply | 220 V (50 - 60 Hz) |
| Power | 750 W |
| Dimension | 1200 * 550 * 780 mm |
| Weight | 130kg
|
1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples
4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
6.Do your product have warranty and refund or return?
Yes, All our products have one year warranty and no reason refund within 7 days after customer received product(customer need to pay for the Return shipping fee
