Product Details:
|
| Usage: | Stripping | Product Name: | Direct Stripping And Hitting Terminal Machine |
|---|---|---|---|
| Power Source: | Single Phase 200V ~ 240V 50 / 60Hz | Air Source: | 0.3~0.4mpa |
| Machine Installation Appearance Size: | L500mm*W350mm*H730mm | Net Weight: | 80kg |
| Stripping Length: | 1.0~7.0mm | Peeling Error: | 0.05~0.1mm |
| Crimp Position Error: | 0.05~0.1mm | Crushing Capacity: | 2 Tons |
| Process: | 30mm |

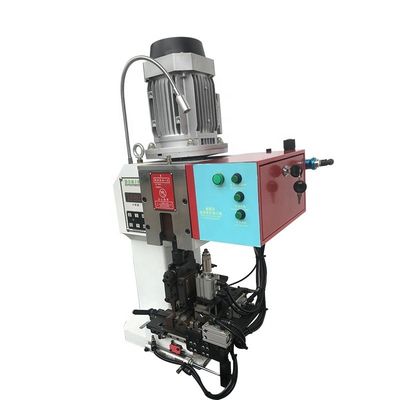

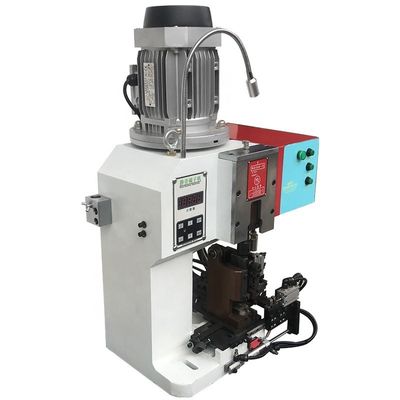

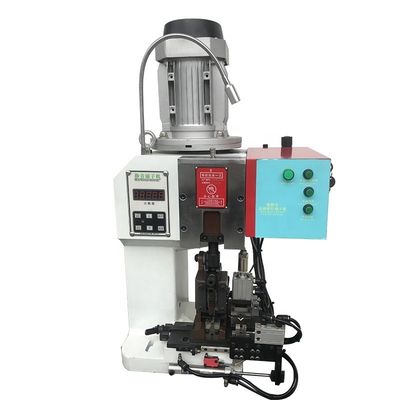

YH-BD-03 High Quality Wire Cutting Stripping And Crimping Machine
Features:
Environmental protection and energy saving: the appearance of this machine adopts electrostatic powder spray paint, environmental protection, durability and pollution-free, the machine is silent and noiseless.
Sound, energy saving and energy saving. No loss of machinery: This machine adopts frequency conversion control to achieve soft start, soft stop and no mechanical loss.
Simple control: easy to adjust and stable.
High efficiency: to achieve gas and electricity integration.
| Model: | YH-BD-02 |
| Machine installation appearance size | L500mm*W350mm*H730mm |
| Applicable wire diameter | AWG18#----AWG32# |
| Applicable wire | AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV Teflon, fiber line, etc. |
| Crimping terminal | Open straight |
| Size: | 600*280*600MM |
| Net weight: | 80KG |
| Production capacity | 3000-3500PCS/hour |
