Product Details:
|
| Usage: | Feeding Wire | Name: | Automatic Wire Feeding Machine |
|---|---|---|---|
| Power Supply: | AC220V 50/60HZ | Power: | 140W/180W/250W |
| Wire Feeding Way: | Positive And Negative Wire Feeding | Speed: | 120 Revolutions/minute(adjustable) |
| Clamping Wire Disc Outer Diameter: | 400mm | Spool Diameter: | 25MM/20MM |
| Bearing Weight: | 25kg | Keyworlds: | Wire Feeder |
| Warranty: | 1year |
1:According to load-bearing can be divided into models with load-bearing 15kg,25kg,50kg,150kg
2:According to the clamping disc outer diameter can be divided into 400mm,600mm,860mm and other models
3:According to the installed wire spool can be divided into 20mm,25mm and other models
4:According to the cable pay-off speed can be divided into two models:manual speed (1m /s ) and stepless variable speed ( 4m /s)
Suitable for electronics,cable,sheath wire,steel wire with reel and without reel,cable pay-off

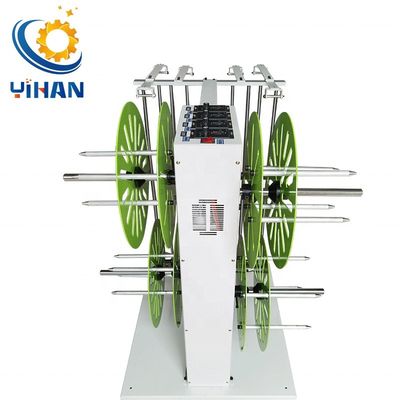

| Model | YH-530-4F |
| Name | Automatic feeding wire machine |
| Axis | Four axis |
| Power | 220V 50/60HZ |
| Clamping wire disc outer diameter | 400mm |
| Spool diameter | 20mm |
| Suitable height | 0-200mm |
| Bearing Weight | Each Spindle bearing weighs 25kg |
| Size | 1160*800*860mm |
| Weight | 105kg |
| Pay-off machine model | Spool diameter | Clamping wire disc outer diameter | Bearing weight(single axis) | Pay-off speed | Remarks |

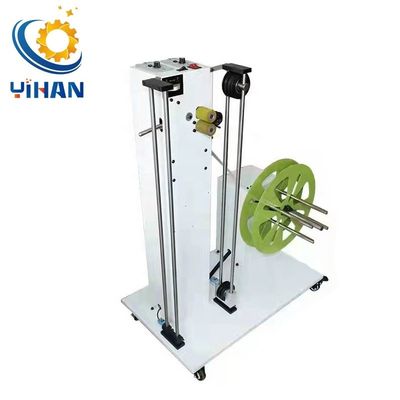

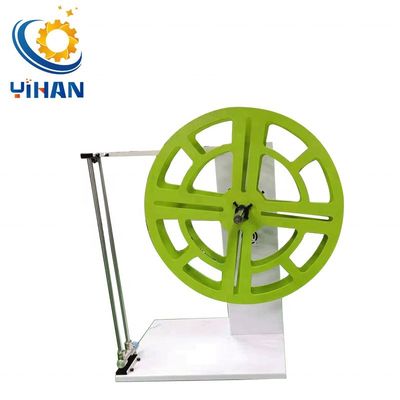

| Single wire pay-off machine | 20/25mm | 400mm/600mm | 25kg | 1 meter / second | Single axis |
| Horizontal and vertical type pay-off machine | 20/25mm | 400mm | 15kg | 1 meter / second | Can be placed horizontally or vertically |

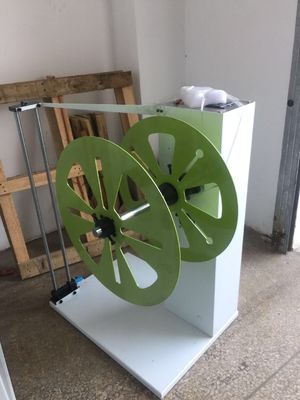

| Double wire type pay-off machine | 20mm | 400mm | 25kg | 1 meter / second | Double axis |
| Four wire type pay-off machine | 20mm | 400mm | 25kg | 1 meter / second | Four axis |
| Five wire type pay-off machine | 20mm | 400mm | 25kg | 1 meter / second | Five axis |
| Six wire type pay-off machine | 20mm | 400mm | 25kg | 1 meter / second | Six axis |
| Single wire side-release stepless variable-speed pay-off machine | 25mm | 400mm | 50kg | 4 meter / second | Single axis |
| Horizontal type pay-off machine | 20mm | 860mm | 50kg | 4 meter / second | Single axis |
| Heavy-duty stepless variable-speed pay-off machine | 30mm | 150kg | 4 meter / second | Single axis |
