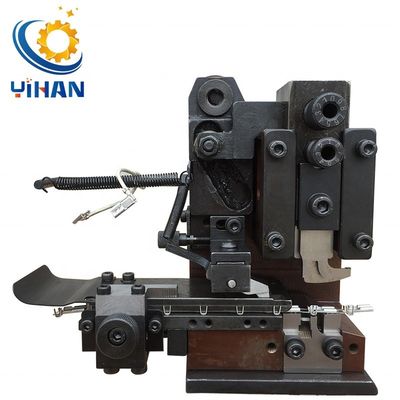

30mm Stroke Terminal Applicator Vertical Feed Otp Vertical Crimping Die for Versatile

Large Image : 30mm Stroke Terminal Applicator Vertical Feed Otp Vertical Crimping Die for Versatile

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Yihan, hxn
Model Number:	OTP, YH terminal applicator

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$180.00/sets 1-2 sets
Packaging Details:	wooden package

Contact Now

30mm Stroke Terminal Applicator Vertical Feed Otp Vertical Crimping Die for Versatile

Description

Usage:	Crimping	Net Weight:	5.5KG
Name:	Vertical Feed Terminal	Stroke:	30mm
Appication:	Vertical Feed Terminal	Function:	Terminal Crimping
Type:	Automatic Or Manual

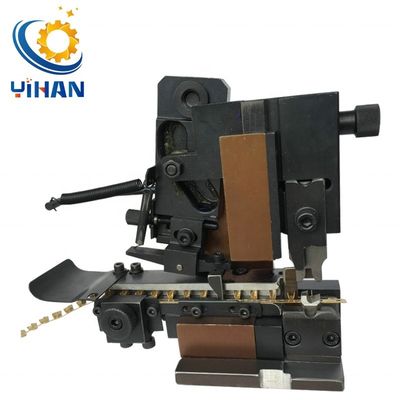

30mm Stroke Terminal Applicator Vertical Feed Otp Vertical Crimping Die for Versatile 0

High quality full automatic wire wut strip twist and terminal crimping machine

Terminal applicator terminal mould OTP mould/Applicator vertical feed terminal

Specification:

Operrational capacity:continuous terminals
Net Weight:5.5KG
Stroke:30mm

Product Features:

Adapt to a variety of cross-transmission terminal.
Push terminals adjustable spacing.
Plastic bag in the rotating blades can fine-tune knob
Cast iron body, durable
tailor-made molds connection to use under the head

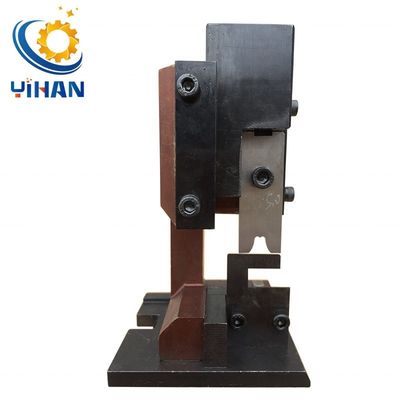

30mm Stroke Terminal Applicator Vertical Feed Otp Vertical Crimping Die for Versatile 3

Product Description

Material belt	Single grain type	Horizontal type	Straight type
Net Weight	4.0KG	5KG	5.5KG
Dimensions	W180H160D110mm
Stroke	30mm
Suitable wire range	0.08-6mm2
Shut height	135.8mm
Suitable for the material thickness of terminal	1.2mm(max)
Feeding mechanism	pneumatic
Feed step distance	35mm(max)
Alignment accuracy	0.02mm
Slide Adjustment	2mm
Air Pressure	0.6-0.8mpa

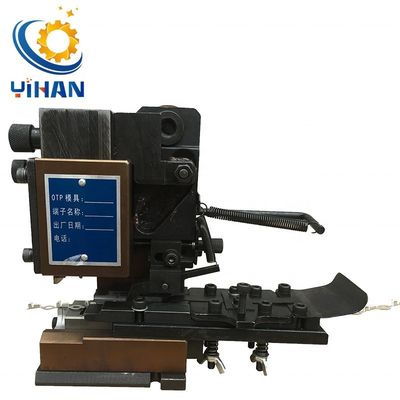

30mm Stroke Terminal Applicator Vertical Feed Otp Vertical Crimping Die for Versatile 4

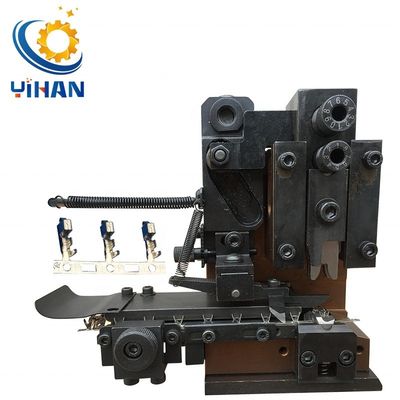

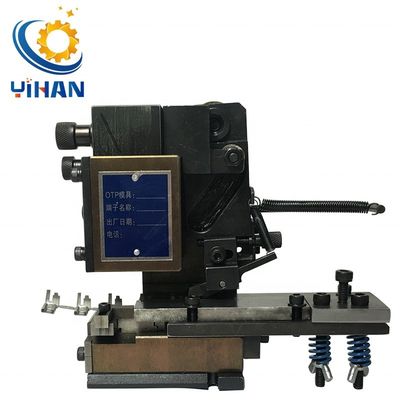

Product show

Company profile

30mm Stroke Terminal Applicator Vertical Feed Otp Vertical Crimping Die for Versatile 10
