Product Details:
|
| Usage: | Crimping | Net Weight: | 4.0KG |
|---|---|---|---|
| Name: | Single Grain Terminal | Stroke: | 30mm |
| Appication: | Applicator Single Grain Terminal | Function: | Terminal Crimping |
| Type: | Automatic Or Manual |
High quality full automatic wire wut strip twist and terminal crimping machine

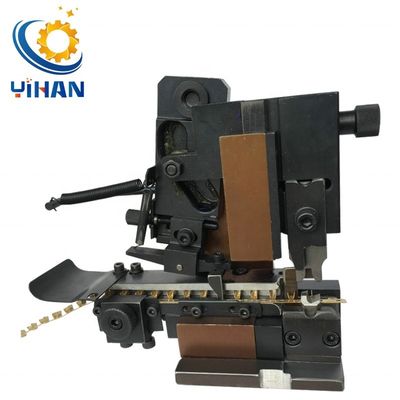

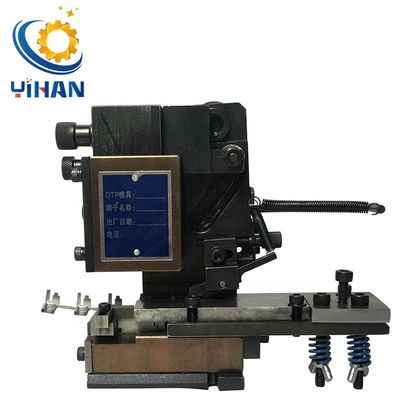

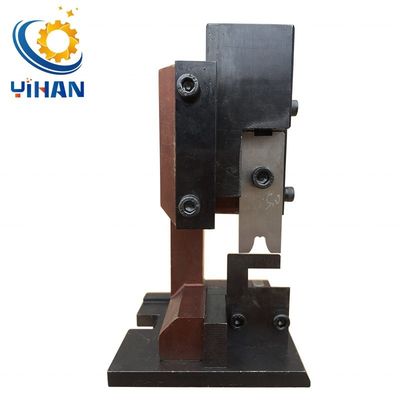

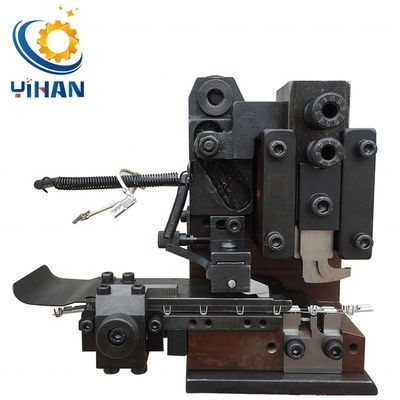

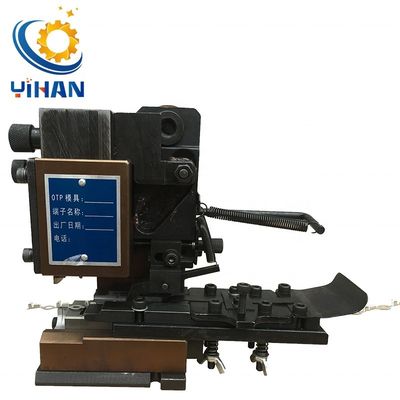

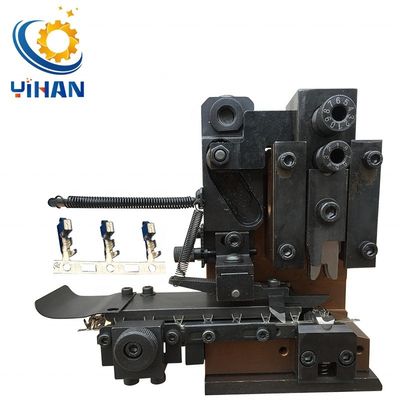

All kinds terminal crimping,crimping machine applicator,terminal die/Applicator single grain terminal
Specification:
Product Features:
| Material belt | Single grain type | Horizontal type | Straight type |
| Net Weight | 4.0KG | 5KG | 5.5KG |
| Dimensions | W180*H160*D110mm | ||
| Stroke | 30mm | ||
| Suitable wire range | 0.08-6mm2 | ||
| Shut height | 135.8mm | ||
| Suitable for the material thickness of terminal | 1.2mm(max) | ||
| Feeding mechanism | pneumatic | ||
| Feed step distance | 35mm(max) | ||
| Alignment accuracy | 0.02mm | ||
| Slide Adjustment | 2mm | ||
| Air Pressure | 0.6-0.8mpa | ||
