Product Details:
|
| Plastic Processed: | PP, PC, ABS, PVC, PE, PE/PP | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 41/57 |
| Mold Height(mm): | 60 - 160 Mm | Ejector Stroke(mm): | 120 Mm |
| Ejector Force(kN): | 15 KN | Theoretical Shot Volume(cm³): | 65 Cm³ |
| Injection Rate (g/s): | 57 G/s | Machine Type: | Hydraulic |
| Injection Weight (g): | 57 G | Screw Speed (rpm): | 1 - 230 Rpm |
| Screw Diameter (mm): | 26 Mm | Weight (KG): | 820 Kg |
| Open Stroke(mm): | 200 Mm | Power (kW): | 3 KW |
| Warranty: | 2 Years | Key Selling Points: | High-accuracy |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Energy & Mining | Showroom Location: | None |
| Machinery Test Report: | Not Available | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, PLC |
| Marketing Type: | Ordinary Product | Port: | Shenzhen |
|
|

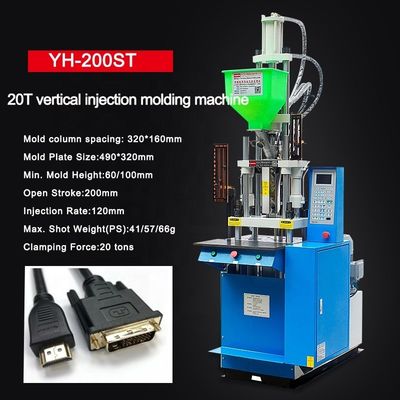

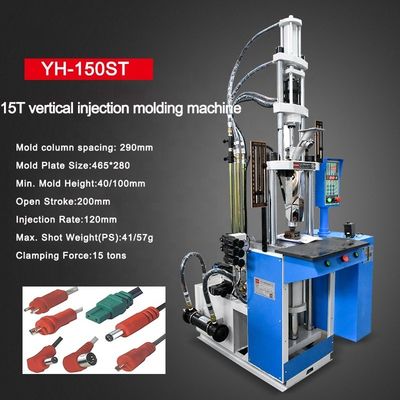

| UNIT | YH-150ST | YH-200ST | |||
|
| Screw Diameter | mm | 22 | 26 | 22 | 26 | 28 |
| Iniection Pressure | kg/cm2 | 1421 | 1018 | 1853 | 1328 | 1145 | |
| (PS)Max.Shot Weight(PS) | g | 40 | 51 | 41 | 57 | 66 | |
| Injection Rate | mm | 120 | 120 | ||||
| Screw Speed Max. | Turn | 0-230 | 0-255 | ||||
| Nozzle Retraction | mm | -- | 135 | ||||
| Number of temperature Control | Snt | 2 | 2/3 | ||||
|
| Clamping Force | Tons | 15 | 25 | |||
| Platen Size | mm | 465*280 | 490*320 | ||||
| Distance Between Tie Bere | mm | 290 | 320*160 | ||||
| Min.Mold Height | mm | 40/100 | 60/100 | ||||
| Openging Stroke | mm | 200 | 200 | ||||
| Max. Open daylight | mm | 240/300 | 260/300 | ||||
| Ejetor Force | Tons | 1.5 | 2 | ||||
|
| Max. Hydaulic Pressure | kg/cm2 | 140 | 140 | |||
| Pump Outpet | 1/min | 23 | 28 | ||||
| Pump Motor power | kw/HP | 2.2/3.0HP | 3.0/4.0HP | ||||
| Berrel Heating Power | kw | 2 | 2 | ||||
| Total Weight | kw | 4.2 | 5.3 | ||||
|
| Machine Weight | kg | 820 | 1050 | |||
| Machine Dimensions(L*W*H) | m | 1.3*0.9*2.3 | 1.4*0.9*2.4 | ||||
