Product Details:
|
| Plastic Processed: | PP, PC, ABS, PET, PVC, PE, PE/PP | Condition: | New |
|---|---|---|---|
| Style: | VERTICAL | Plasticizing Capacity(g/s): | 20 |
| Mold Height(mm): | 4 - 6 Mm | Ejector Number: | 4 |
| Ejector Stroke(mm): | 20 Mm | Ejector Force(kN): | 1 KN |
| Theoretical Shot Volume(cm³): | 60 Cm³ | Injection Rate (g/s): | 20 G/s |
| Machine Type: | Other | Injection Weight (g): | 10 G |
| Screw Diameter (mm): | 6 Mm | Weight (KG): | 25 Kg |
| Type: | Injection Blow Molding | Open Stroke(mm): | 20 Mm |
| Power (kW): | 2 KW | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Building Material Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining, Advertising Company, Other |
| Showroom Location: | None | Machinery Test Report: | Not Available |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |

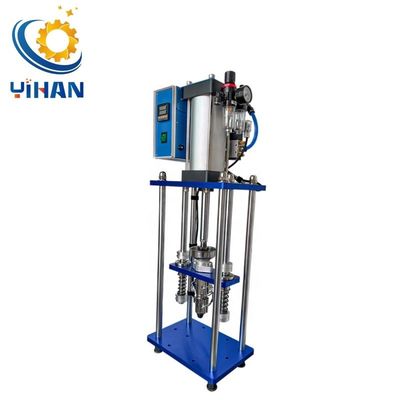

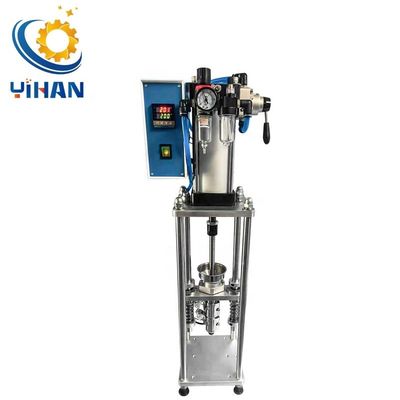

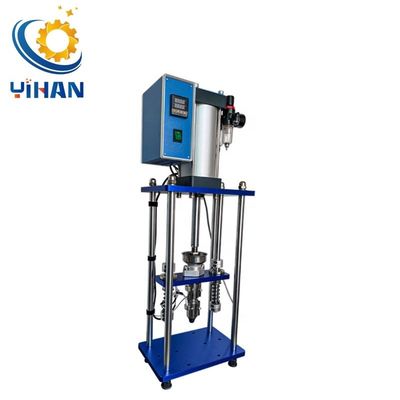

| Core Components: | Motor, PLC | Name: | Mirco Desktop Injection Molding Machine |
| Power Supply: | AC220V 50/60HZ | Mold Size: | Max.200*150*60mm |
| Service Temperature: | Max 300° | Injection Weight: | Max10g |
| Clamping Mode: | Manual/optional Pliers | Applicable Plastic: | ABS/PP/PE |
| Air Pressure: | 0.2-0.7Mpa | Size: | 200*200*800MM |
| Weight: | 17KG |
Advantages of desktop injection molding machine:
♠ Firstly, adjust theheight of the mold. lt is better that the mold gate is about 5mm awayfrom the machine nozzle. lf the mold gate is too high (more than10mm), it is easy to leak glue.
♠After the gate and nozzle are alignedpress the foot switch to complete injection molding and releasethe switch.
♠Open the mold after the mold cooling is completed.

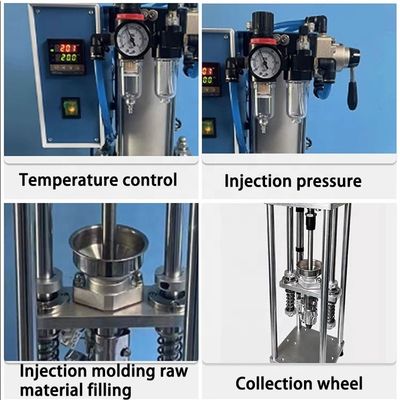

♠Thefactory air pressure is generally adjusted to 0.2mp.
♠lf the injectionmolding is incomplete and defective, please adjust the air pressureto a reasonable range. The higher the air pressure, the higher theinjection pressure.
♣ Materials such as conventional plastic particles ABS PP PC AS PE PET PVC can be used.
♣The injection molding machine uses a simple manual mold to complete injection molding, which can reduce mold cost and production cost.
Note: This machine needs to be used in conjunction with an air pump. It is recommended to use an air pump with a power of more than 30L 500W

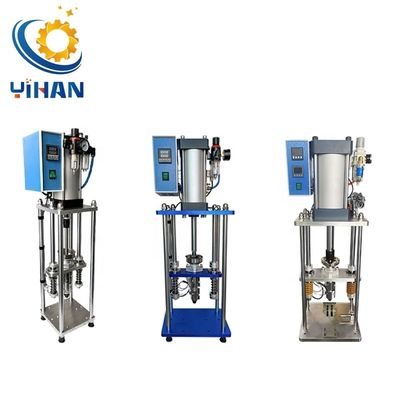

| Model | YH-10G | YH-20G | YH-40G |
| Power | 220V 50-60HZ | ||
| Mold size | MAX200*150*60mm | MAX200*200*80mm | MAX310*280*110mm |
| Service temperature | Max 300° | Max 350° | Max 400° |
| Amount of injection glue | Max 10g | Max 20g | Max 40g |
| Air pressure | 0.2-0.8Mpa | ||
| Suitable plastic | ABS PP PE Etc. | PVC PA POM EVA Etc. | PVC PA POM EVAD Etc. |
| Clamping mode | Manual/optional pliers | Manual/optional pliers | Quick jig/optional pliers |
| Size | 200*200*800MM | 300*200*800MM | 350*300*1050MM |
| Weight | 17KG | 22KG | 50KG |
| Note: | We can customize according to the specific needs of customers | ||
1. Why choose us? Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.

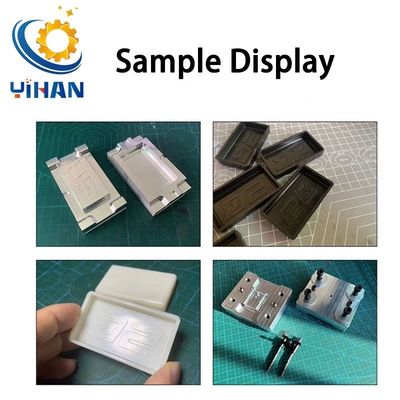

Video for you to make samples
4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
6.Do your product have warranty and refund or return?
Yes, All our products have one year warranty and no reason refund within 7 days after customer received product(customer need to pay for the Return shipping fee
