Product Details:
|
| Usage: | Multifunctional | Product Name: | Automatic Tin Dipping Machine |
|---|---|---|---|
| Power Supply: | AC220V/50HZ | Productivity: | 20000-25000pcs/h( Within 200mm Length) |
| Processing Range: | AWG#32-AWG#14(m)(Support For Custom) | Cutting Length: | 8mm-99999mm |
| Peeling Length: | 0.1mm-10mm | Twisting Wire Length: | 0.1-10mm |
| Air Pressure: | 0.5-07Mpa | Dimension: | 1200-800-1200MM |
| Net Weight: | 370KG | Port: | Shenzhen |

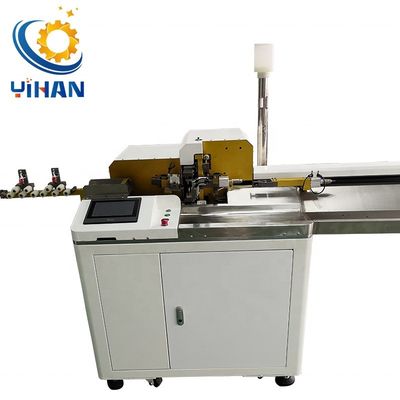

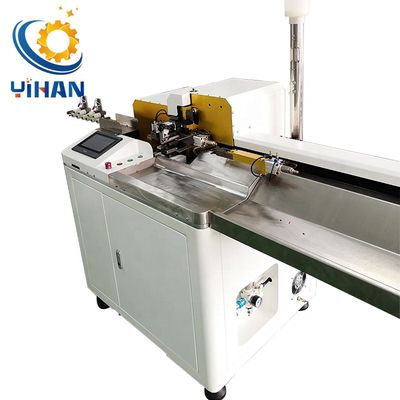

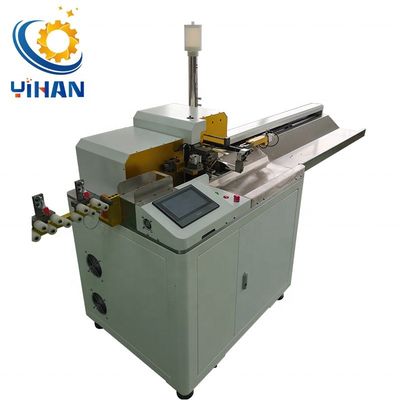

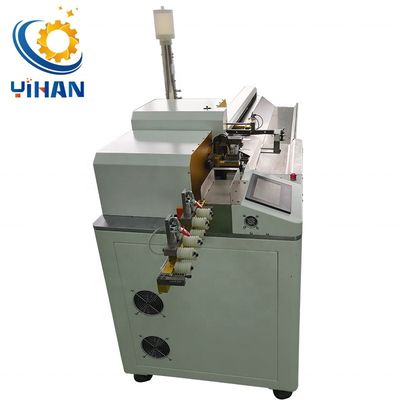

YH-SZ-02 Multifunction multi-line wire cut strip twisting tinning machinemachine
Features:

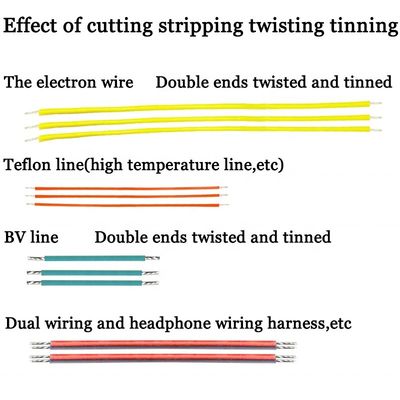

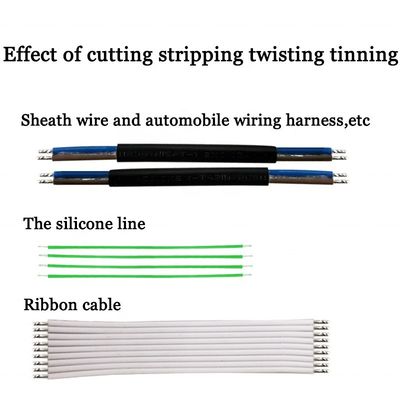

1, can be double head tin, single head twisted tin tin, double head twisted tin tin, ultra short stripping tin
2. The front-end wire feeding part of the machine adopts two sets of feeding reels. When the machine produces ten lines at the same time, the machine can more stably control the length of the feeding line, and the back-end part adopts a cylinder brake mechanism to perform back-skin peeling.
3, the main use of PLC control system, its simple operation, accurate positioning, high accuracy, long life and other characteristics.
Specification:
1, Full Automatic double head dipping tin Terminal Machine
2, Terminal Machine
3, doouble head terminal crimping machine
| Product Name | Automatic tin dipping machine |
| Model | YH-SZ-02 |
| Power supply | AC220V/50HZ |
| Productivity | 20000-25000pcs/h |
| Processing range | AWG#32-AWG#14(Other wire diameter can be customized) |
| Cutting length | 8mm-99999mm |
| Peeling length | 0.1mm-10mm |
| Twisting wire length | 0.1-10mm |
| Air pressure | 0.5-0.7Mpa |
| Dimension | 1200-800-1200 |
| Weight | 370KG |
