Product Details:
|
| Usage: | Twisting | Product Name: | Manual Small Peel Single Air Wire And Cable Cut & Strip Machine |
|---|---|---|---|
| Function: | Cutting Stripping Twisting Wire | Wire Range: | 0.1-1.5 Mm2(AWG16-AWG32)(double Wire) |
| Cutting Length: | 0.1mm-99999.99mm | Stripping Length: | Head 0 - 25mm ,End 0-80mm |
| Cutting Tolerance: | 0.2+0.002*L) | Power Supply: | AC220V/50HZ/60HZ |
| Speed: | 3000-7000pcs/h | Size: | 470mm*450mm*340mm |
| Weight: | 40 Kg | Port: | Shenzhen |

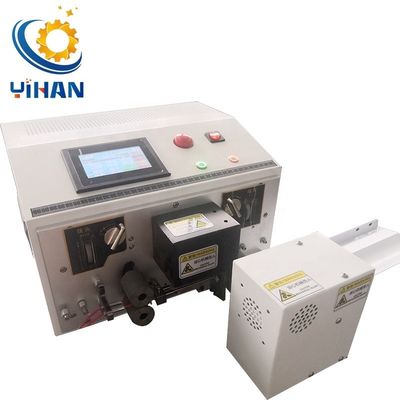

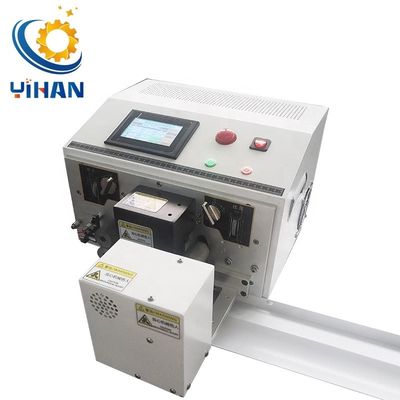

YH-04N Hot sale high quality Automatic double wire cutting stripping twisting machine
| Mdel | YH-04N |
| Wire range | 0.1-1.5mm2 (AWG16-AWG32)(Double wire) 0.1-4.5mm2(AWG11-AWG32)(Single wire) |
| Stripping Lengths | Front end:0-25mm,Tail end:0-50mm |
| Twisting Lengths | Front end:0-25mm,Tail end:0-50mm |
| Cutting Lengths | 0.1-99999.99mm |
| Productivity | 2500-4000 pcs/h(According to length) |
| Noise level | <70dBA |
| Electrical Connection | AC 220/110V/50/60HZ 450W |
| Operation Interface | Chinese/English |
| Machine Dimension | 420*400*300mm |
| Weight | 35kg |
