Product Details:
|
| Usage: | Cutting & Stripping, Stripping And Cutting | Product Name: | Double Wires Cutting Stripping Machine |
|---|---|---|---|
| Application: | Cutting And Stripping | Stripping Length: | Head 0 - 25mm Tail 0-60mm |
| Cutting Length: | 1mm-99999.99mm | Stripping Range: | 0.1-4.0 Mm2 BVR Multi Softlines |
| Catheter Diameter: | 1.5-5MM | Size: | 400*300*330 |
| Weight: | 30KG | Warranty: | 12 Months |

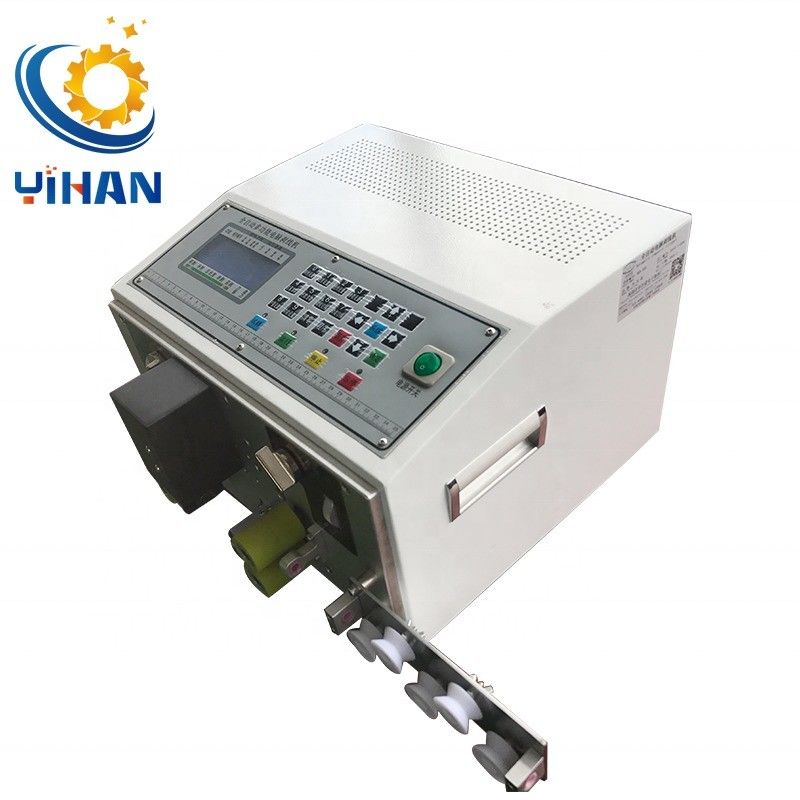

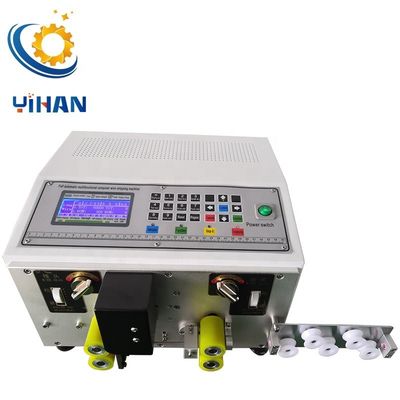

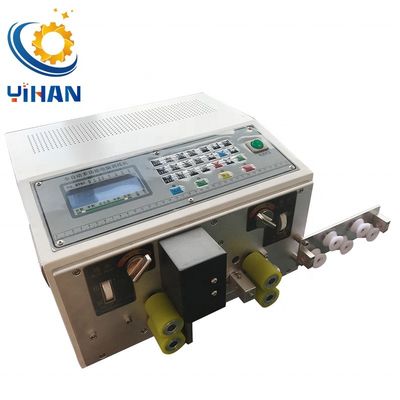

YH-845 (new style) automatic high speed precision electrical wire cut strip machine machine
Features:
2.Compatible with the general features of 330# wire cutting machine.Double linear,two wires can be processed simultaneously,not only saves labor and time,but also improve productivity.

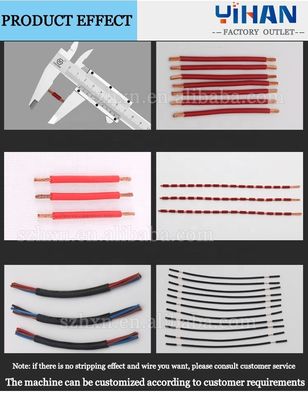

3.Mainly used for electronic wire, silicone wire,Teflon wire, glass fiber of cotton,isolated lines,coaxial,trunking.Automatic cutting, stripping, semi-stripping,multi-segment stripping, twisting function once completed,can instantly transform wire specifications and dimensions,it’s very economic.
4.The machine is mainly used in electronics, electrical appliances, toys, auto parts and other industries.
| Product Name | Automatic wires cutting stripping machine |
| Model | YH-845 |
| Dimension | 400*300*330mm |
| Weight | 31KG |
| Display method | Chinese or English interface display |
| Power supply | AC220/250V/50/60HZ |
| Capacity | 120-220W |
| Cutting length | 1mm-99999mm |
| Cutting Tolerance | Adjustable |
| Peeling length | Head 0-20mm Tail0-60mm(According to the wire) |
| Applicable wire core area | 0.1-4.0mm2(AWG14#-AWG32#) |
| Productivity | 3000-6000pcs/h(according to the cutting length) |

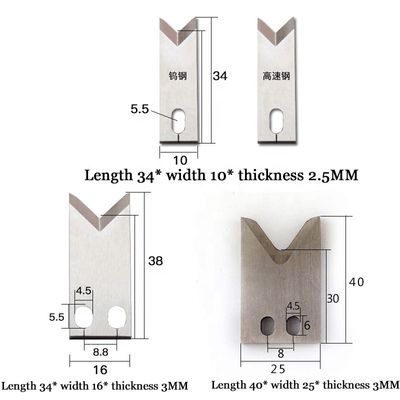

| Tool Material | Tungsten steel / High speed steel |
| Drive mode | Four simultaneously drive |
| Stripping Mode | Long wire/ short wire /Multi-stripping / multi stripping |
