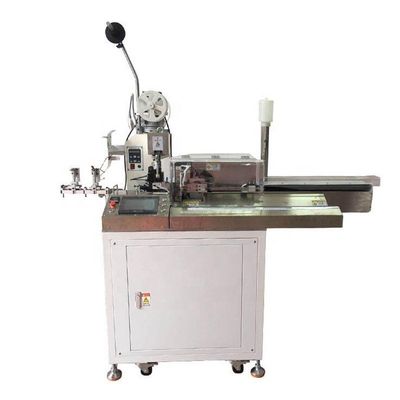

Automatic Cable Wire Cutting Stripping Twisting Tinning Terminal Crimping Machine YH-10 NT

Large Image : Automatic Cable Wire Cutting Stripping Twisting Tinning Terminal Crimping Machine YH-10 NT

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Yihan
Model Number:	YH-10+NT

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$5,000.00 - $8,000.00/sets
Packaging Details:	wooden package
Supply Ability:	500 Set/Sets per Month

Contact Now

Automatic Cable Wire Cutting Stripping Twisting Tinning Terminal Crimping Machine YH-10 NT

Description

Usage:	Multifunctional	Product Name:	Automatic Terminal Pressure Invasion Tin Machine
Power Supply:	AC220V/50HZ	Productivity:	6000-8000pcs/h(Depend On Cutting Length)
Processing Range:	AWG#32-AWG#18	Cutting Length:	8mm-999999mm
Peeling Length:	0.1mm-10mm	Twist Length:	3mm-10mm
Dip Tin Length:	0.5mm-10mm	Dimension:	1000-700-1500
Weight:	350KG	Port:	Shenzhen/zhejiang/shanghai/guangzhou

YH-10+NT automatic cable twisting tinning terminal crimping machine

Features:

1.Fully automatic cutting, stripping, twisting, single-ended end, single-ended dip tin, can be used for ultra-short wire (12mm in the middle), fast speed, stable performance.
2.LCD display, clear chinese interface, easy to operate.
3.The whole machine adopts servo control, full computer touch digital debugging parameters, uniform 90 degree point, precise depth.
4.Complete detection function, wire, terminal, knotting, air pressure detection, etc
5.Novel concept, OTP straight mold, transverse mold, simple blade replacement, automatic receiving terminal waste paper, cutting terminal waste.

Product Description

Product Name	Automatic terminal pressure invasion tin machine
Model	YH-10+NT
Power supply	Single-phase AC220V/50HZ/60HZ
Productivity	Five lines simultaneously 6000-8000pcs/h( depend on cutting length)
Processing range	AWG#32-AWG#18
Cutting length	8mm-99999mm
Peeling length	0.1mm-10mm(other lengths are customizable)
Twisting length	0.1-10mm
Dip tin length	0.1-10mm
Pressing ability	1500KG
Air pressure	0.4-0.6Mpa
Dimension	1210-770-1370mm
Function	Automatic five-wire cutting line/peeling line/twisting line/invasion tin /crimping terminal
Weight	450KG

Automatic Cable Wire Cutting Stripping Twisting Tinning Terminal Crimping Machine YH-10 NT 3

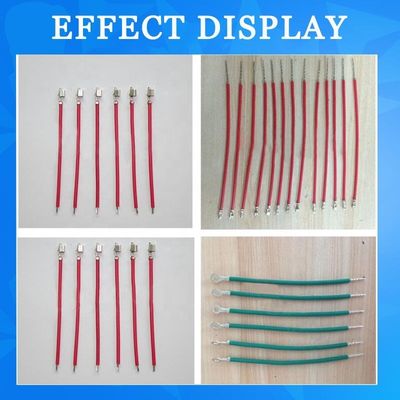

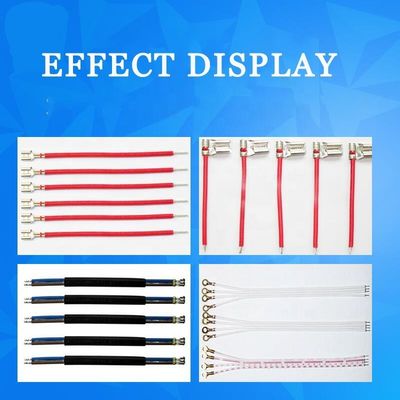

Prodow Show

Automatic Cable Wire Cutting Stripping Twisting Tinning Terminal Crimping Machine YH-10 NT 8

Company profile

Automatic Cable Wire Cutting Stripping Twisting Tinning Terminal Crimping Machine YH-10 NT 9

Contact Details

Yihan (shenzhen) Automation Equipment Co., Ltd.

Contact Person: Ms. Lily Lee

Tel: +8618272164783
