Product Details:
|
| Usage: | Crimping Soldering | Name: | Crimp Soldering Machine |
|---|---|---|---|
| Port: | Shenzhen |

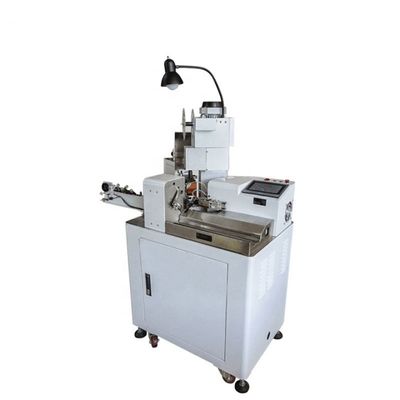

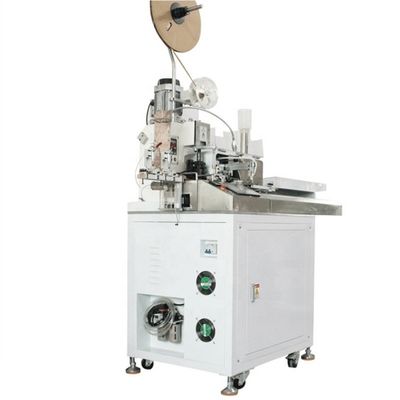

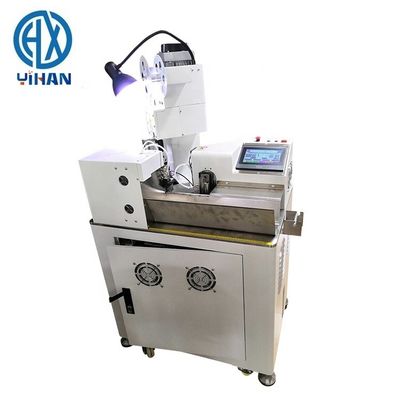

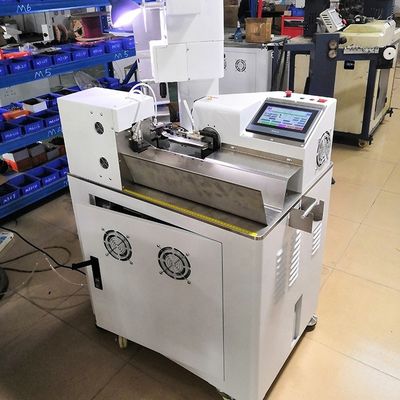

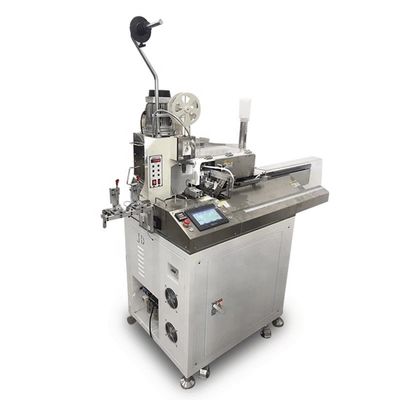

Automatic single-head crimping dip soldering machine (5 output at a time)
FEATURE:
1. Fully automatic cutting, peeling, twisting, single-ended end, single-ended immersion tin, can be used for ultra-short wires (12 mm in the middle), fast speed and stable performance.

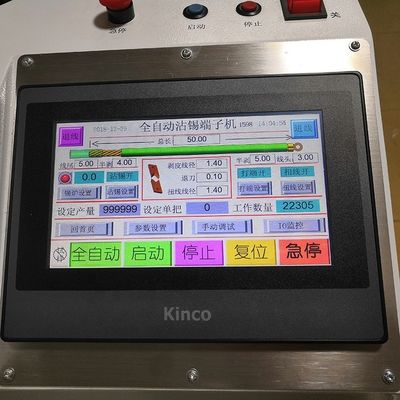

2. LCD display, clear Chinese interface, easy to operate.
3. The whole machine adopts servo control, and the whole computer touches the digital debugging parameters, evenly 90 degrees, and precise depth.
4. Complete inspection functions, wires, terminals, fasteners, air pressure detection, etc.
5. Novel concept, OTP straight mold, horizontal mold, simple blade replacement, automatic receiving terminal waste paper, reducing terminal waste.
|
Model |
YH-03X |
|
Power supply |
Single-phase AC220/50/60Hz |
|
Features |
Wire cutting, single-ended crimping, double-ended peeling single-ended semi-stripping, twisting single-ended line, single-ended soldering. |
|
Cutting length |
10mm~400mm(Shortest to be 8mm) the length of 700mm can be customized. |
|
Cutting tolerance |
0.2mm+0.02*L |
|
Peeling length |
0 ~ 7mm (7mm above need to be customized). |
|
Twisted wire length |
3~7mm(7mm above need to be customized) |
|
Soldering length |
0.5~7mm(7mm above need to be customized) |
|
Air pressure |
5~6KG |
