Upgrade Your Production Line with YH-S2 Fully Automatic Terminal Crimping Machine

Upgrade Your Production Line with YH-S2 Fully Automatic Terminal Crimping Machine
Upgrade Your Production Line with YH-S2 Fully Automatic Terminal Crimping Machine Upgrade Your Production Line with YH-S2 Fully Automatic Terminal Crimping Machine Upgrade Your Production Line with YH-S2 Fully Automatic Terminal Crimping Machine Upgrade Your Production Line with YH-S2 Fully Automatic Terminal Crimping Machine Upgrade Your Production Line with YH-S2 Fully Automatic Terminal Crimping Machine Upgrade Your Production Line with YH-S2 Fully Automatic Terminal Crimping Machine

Large Image :  Upgrade Your Production Line with YH-S2 Fully Automatic Terminal Crimping Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: Yihan
Model Number: YH-S2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $3,000.00 - $5,000.00/sets
Packaging Details: wooden package
Supply Ability: 500 Set/Sets per Month
Contact Now

Upgrade Your Production Line with YH-S2 Fully Automatic Terminal Crimping Machine

Description
Usage: Multifunctional Product Name: Automatic Double Head Terminal Machine
Power Supply: AC220V/50HZ Productivity: 4000pcs/h( Within 200mm Length)
Processing Range: AWG#30-AWG#18/AWG#20-AWG#14 Cutting Length: 50mm-9999mm(the Shortest Can Be 25mm)
Peeling Length: 0.1mm-10mm Pressing Ability: 1500KG
Air Pressure: 0.4-0.6Mpa Dimension: 1000-800-1450
Weight: 350KG Port: Shenzhen

Upgrade Your Production Line with YH-S2 Fully Automatic Terminal Crimping Machine 0Upgrade Your Production Line with YH-S2 Fully Automatic Terminal Crimping Machine 1Upgrade Your Production Line with YH-S2 Fully Automatic Terminal Crimping Machine 2

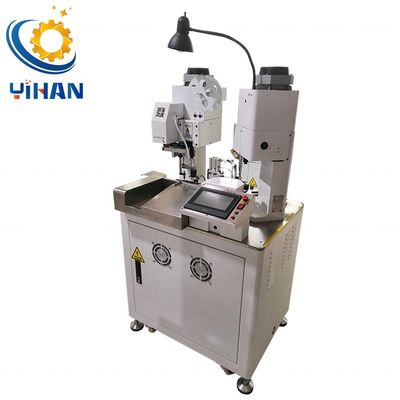

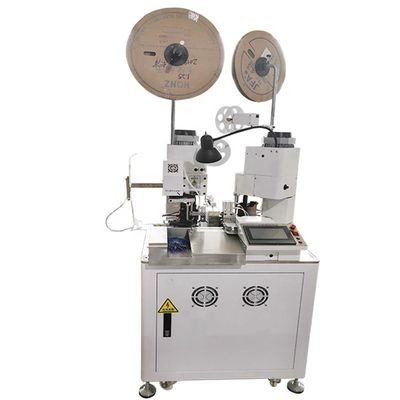

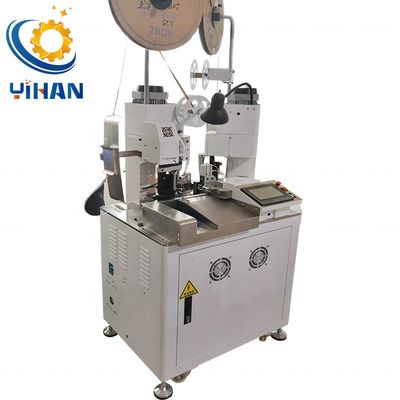

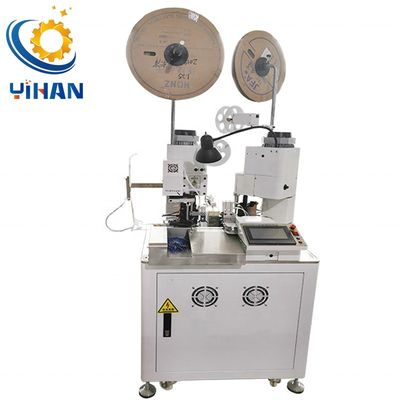

YH-S2 Fully automatic terminal crimping machine wire cutting stripping crimp machine

Features:

  • Automatic double-end wire cutting, stripping, crimping, stripping, cutting machine and terminal functions in one, high precision, fast speed and stable performance.
  • LCD, Chinese interface, HD, easy to operate
  • This machine adopts servo control, which is fast and low in noise.
  • The computer touches the digital tuning parameters, which is quick and easy.
  • After the test is completed, the machine automatically alarms when the wire, crimp, pressure, etc.
  • Innovative concept, OTP mode, horizontal mode, just replace the blade, automatic receiving terminal, waste paper, abandoned terminal.



Product Description
Product Name  Double terminal crimping machine
Model  YH-S2
Power supply  AC220V/50HZ
Productivity  4000pcs/h( within 200mm length)
Processing range  AWG#30-AWG#18/AWG#20-AWG#14
Cutting length  50mm-9999mm(the shortest can be 25mm)
Peeling length  0.1mm-10mm
Pressure  2.0Ton
Pressing ability  1500KG
Air pressure  0.4-0.6Mpa
Dimension  1000-800-1450
Function Cutting/Single End Peeling/Double end Peeling/Single end Pressing/Double end Pressure
Weight  350KG

Upgrade Your Production Line with YH-S2 Fully Automatic Terminal Crimping Machine 3Upgrade Your Production Line with YH-S2 Fully Automatic Terminal Crimping Machine 4Upgrade Your Production Line with YH-S2 Fully Automatic Terminal Crimping Machine 5Upgrade Your Production Line with YH-S2 Fully Automatic Terminal Crimping Machine 6Upgrade Your Production Line with YH-S2 Fully Automatic Terminal Crimping Machine 7

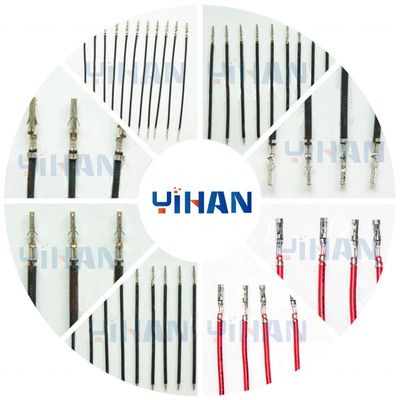

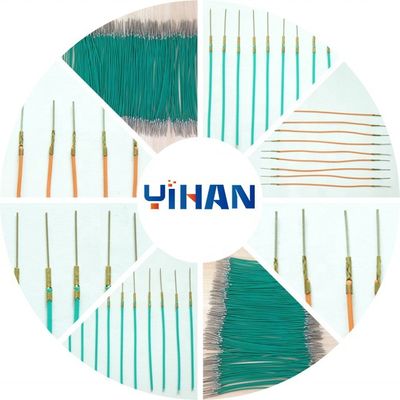

Product Show

Upgrade Your Production Line with YH-S2 Fully Automatic Terminal Crimping Machine 8
