Product Details:
|
| Usage: | Cutting & Stripping & Crimping | Power Supply: | AC 220V 50/60Hz |
|---|---|---|---|
| Power: | 2.5KW | Wire Range: | AWG16-AWG30 |
| Stripping Length: | 1.5-10mm | Cutting Length: | 50-9999mm |
| Dimension: | 1000*800*1500mm | Weight: | 330kg |
| Air Pressure: | 0.5-0.8MPa | Productivity: | 4000PCS/h |
| Keywords: | Automatic Crimping Machine | Port: | Shenzhen |

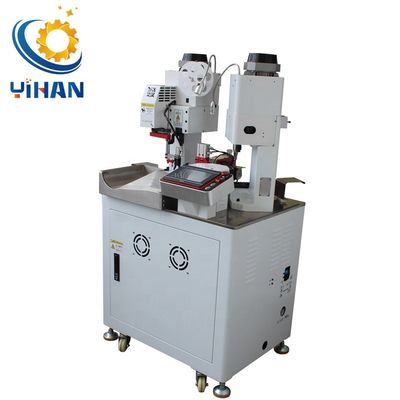

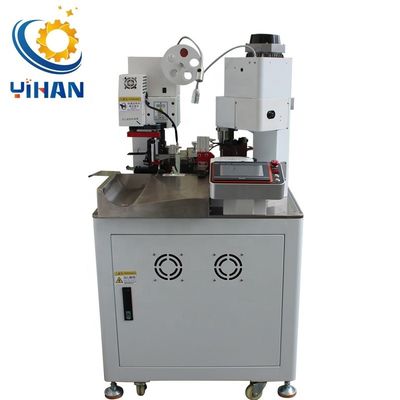

1. Fully automatic double-head terminal machine is specially tailored for ultra-fine wires and high-precision wires, cutting, stripping, and finishing with more precise and stable.
2. The double-head terminal machine adopts stepping motor and Taiwan silver screw, precision matching to ensure mechanical precision, efficiency and stability.
3. Full computer touch screen operation, input of cutting length, stripping, half-stripping and twisting and other parameters can be completed at one time, reducing adjustment time, no need for professional operation, and adjustment is simpler and more convenient.
4. The computer automatically detects mechanical failures and displays the cause of the failure, which facilitates rapid troubleshooting and greatly improves production efficiency.

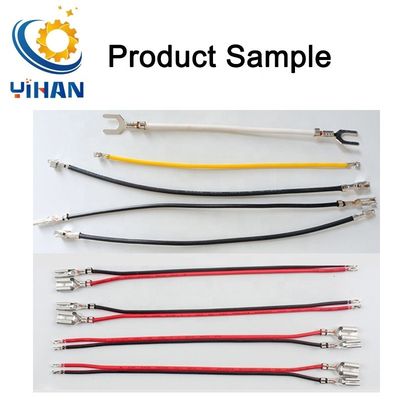

Suitable for AWG30-AWG16 electronic wire, cutting, double-ended stripping, single-ended stripping, double-ended crimping terminal, single-ended crimping terminal
| Model | HXN-ST02 |
| Power | AC 220V 50/60Hz |
| Automatic Detection | 1: Whether there is a terminal 2: Wire detection 3: Air pressure detection 4: Crimping detection |
| Applicable wire size | AWG#18 - AWG#32(Other sizes can be customized) |
| Cutting length | 50mm-9999mm(The shortest can be customized 25mm) |
| Cutting tolerance | ±0.02mm |
| Stripping length | 0.1mm -9mm |
| Crimping power | 2.0 T |
| Blade material | Imported tungsten steel/HHS |
| Weight | 350KG |
| Dimensions | L980 x W700 x H1550(mm) |
| Production | 4000-6000pcs/hour accordingly(depend on wire) |
| Remark | Can be customized according to customer needs |
1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples
4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
6.Do your product have warranty and refund or return?
Yes, All our products have one year warranty and no reason refund within 7 days after customer received product(customer need to pay for the Return shipping fee
