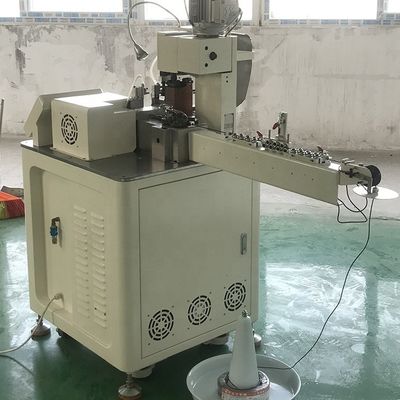

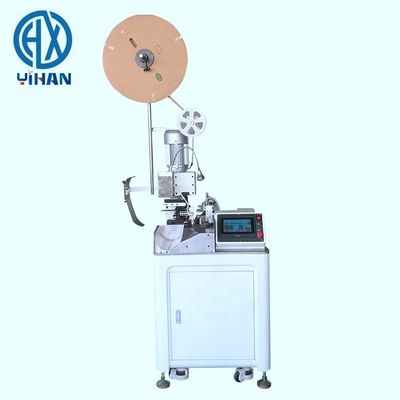

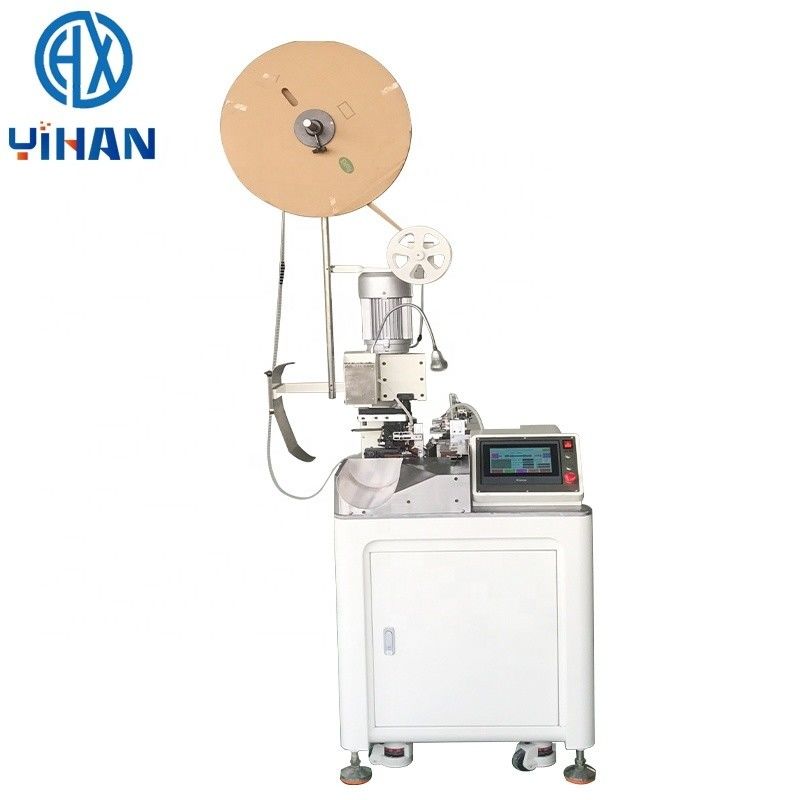

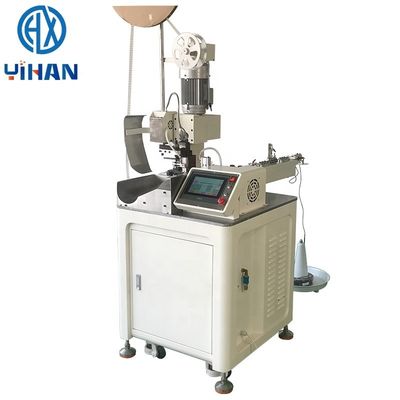

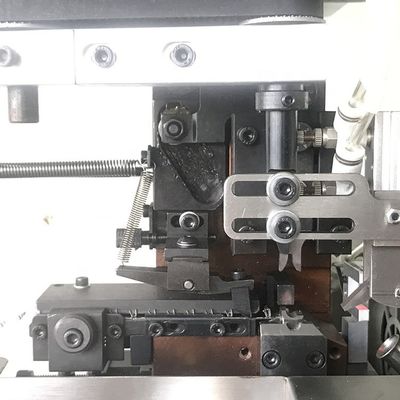

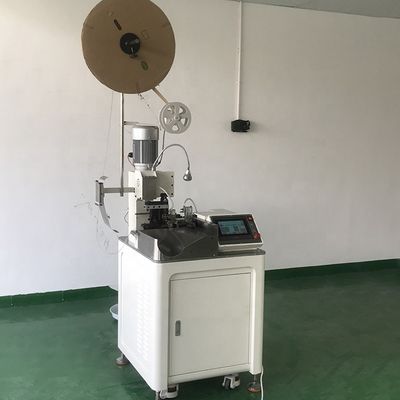

Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine

Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine
Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine

Large Image :  Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: Yihan
Model Number: YH-02D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $4,450.00 - $4,500.00/sets
Packaging Details: Wooden case
Supply Ability: 50 Set/Sets per Month
Contact Now

Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine

Description
Usage: Multifunctional, Crimping Product Name: Automatic Single Head Terminal Crimping Machine
Application: Terminal Crimping Machines Weight: 30KG
Color: White Voltage: AC220V/50HZ
Stripping Length: 0.1-10mm Twisting Length: 3mm-12mm
Pocessed Wire Range: AWG18-AWG32 Dimension: 600X700X1500mm
Port: Shenzhen

Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine 0Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine 1Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine 2

YH-02D Automatic Single-head Terminal Crimping Machine

Features:

  • Fully automatic cutting, stripping, twisting, single-ended end, single-ended dip tin, can be used for ultra-short wire (12mm in the middle), fast speed, stable performance.

  • 2.LCD display, clear chinese interface, easy to operate.





  • 3.The whole machine adopts servo control, full computer touch digital debugging parameters, uniform 90 degree point, precise depth.

  • 4.Complete detection function, wire, terminal, knotting, air pressure detection, etc

  •

    5.Novel concept, OTP straight mold, transverse mold, simple blade replacement, automatic receiving terminal waste paper, cutting terminal waste.

Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine 3

Product Description
Product Name  Automatic single head terminal crimping machine
Model  YH-02D
Pocessed wire range  AWG18-AWG32
Processing speed  6100pcs/h(0-100mm) 4600-5800pcs/h(100mm-600mm)
Wire cutting length  Bold lines 20mm-9999mm, Not twisted wire 8mm-9999mm
Cutting ccuracy  Less than 1mm+cutting length 0.2%
Stripping length  0.1mm-10mm
Twisting length  3mm-12mm
Crimping capacity  1.8Ton
Detection function  Without wires, wire tie, terminal testing, Wire Identification (can be installed)
Dimension  600X700X1500mm
Power supply  Single-phase power AC220V  50/60HZ

Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine 4Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine 5

Product show

Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine 6

Company profile

Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine 7Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine 8Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine 9Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine 10Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine 11Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine 12Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine 13Multi-functional Tangential Pressing and Peeling Automatic Single-head Terminal Crimping Machine 14
