Product Details:
|
| Usage: | Stripping, Stripping | Line Diameter Range: | 10-40mm |
|---|---|---|---|
| Stripping Length: | 0.1-200mm | Unit Of Cutting Depth: | 0.01mm |
| Max.layers Of Wire Stripping: | 9 Layers | Drive Mode: | Touch Screen |
| Display Mode: | Ball Screw Drive | Blade: | 4pcs |
| Centering Slice: | 4pcs |

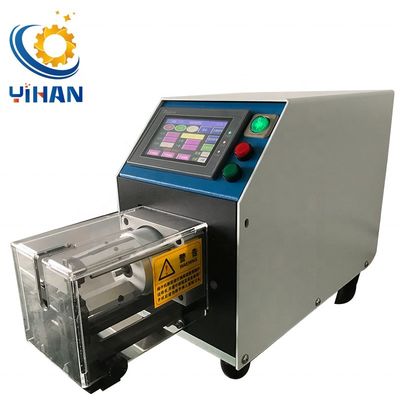

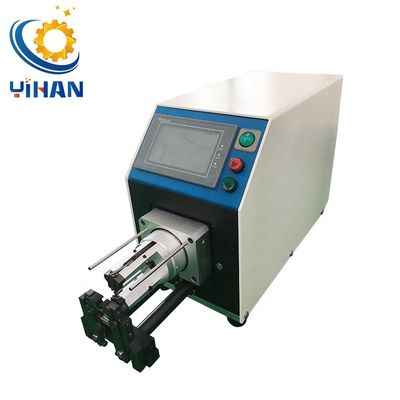

YH-8240 Coaxial wire stripping machine
FEATURE:

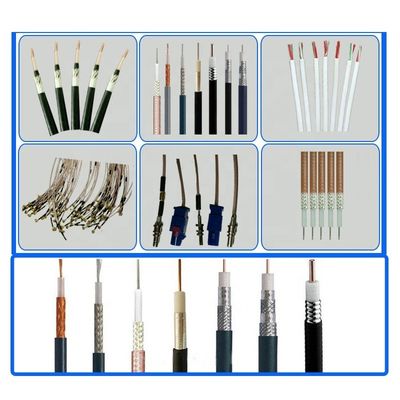

1. Mainly used for the processing of coaxial cables and special single wires, using the most advanced rotary tool holder to improve accuracy and speed.
2. LCD display.

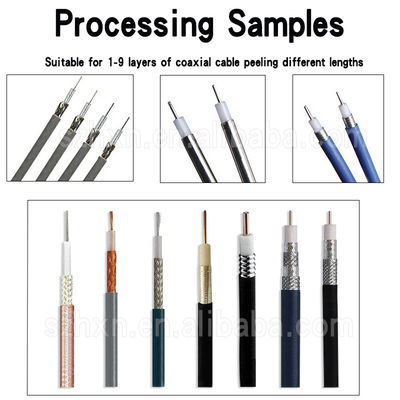

3. With a specific axis positioning device and a rotary tool method, up to 9 layers can be stripped.
4. Corresponding to various sizes and sheath wires without changing the blade.
| Model | YH-8240 |
| Max cable diameter | 10-up to 40mm |
| Cutting Unit Depth | 0.01mm |
| Max Stripping Length | 200mm |
| Max Stripping layers | 9 layers |
| Drive mode | ball screw drive |
| Display method | Touch screen |
| Blade/Material | 4pcs/Tungsten steel |
| Centering piece/Material | 4pcs/Tungsten steel |
| Clamp devices | Self-aligning, force controlled by program |
| Productivity | 150-400pcs/h(Depending on the length and layer of wire stripping) |
| Boot mode | Manual / padaling(optional) |
| Supply power | 220V/50HZ/60HZ |
| Rated power | 350W |
| Weight | 150KG |
| Dimensions | 1200X390X640 mm |
| Working environment | 0-50 degrees, moderate drying, vibration-free work surface, moderate dryness workshop |
