Product Details:
|
| Usage: | Stripping, Stripping | Product Name: | Pneumatic Rotatory Blade Rotary Peeling Machine Wire Stripping Machin |
|---|---|---|---|
| Peeling Method: | Rotary Peeling | Stripping Length: | 0-100mm |
| Line Diameter Range: | 10mm-25mm | Power Supply: | 220V 50HZ/60HZ /200W |
| Air Pressure: | 0.5-0.7Mpa | Speed: | 20-40pc/min |
| Size: | 1000*450*350mm | Weight: | 80kg |

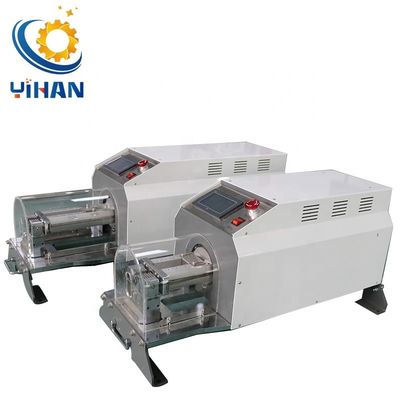

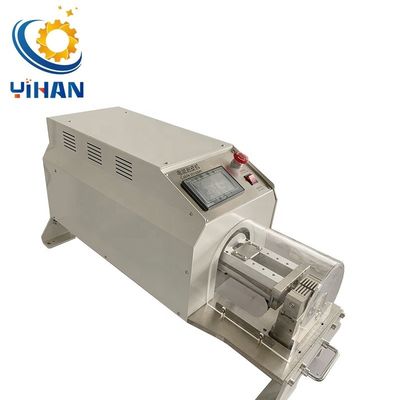

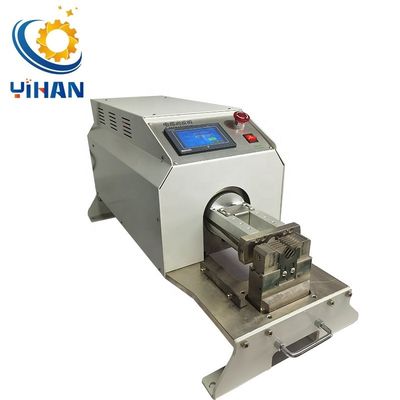

YH-100HW Automatic wire rotated stripping machine for big cable
| Model | YH-100HW |
| Peeling mode | Rotary peeling |
| Wire diameter | Φ 10-Φ 25mm |
| Stripping Length | 0-100mm |
| Power | 200W |
| Power supply | 220V 50-60HZ |
| Aire pressure | 0.5-0.7Mpa |
| Peeling error range | ±0.2 |
| Speed | 20-40pcs/min |
| Size | 1000*450*350mm |
| Weight | 80kg |
