Product Details:
|
| Usage: | WINDING | Name: | Winding Machine |
|---|---|---|---|
| Power: | AC220V 50HZ /60HZ | Power Rating: | 200W |
| Strapping Diameter: | 8-30mm | Binding Length: | 75-140mm |
| Around The Circle Diameter: | 50-200mm | Winding Pitch: | 50-200mm |
| Net Weight: | 35kg | Size: | 485*435*340mm |
| Warranty: | One Year |

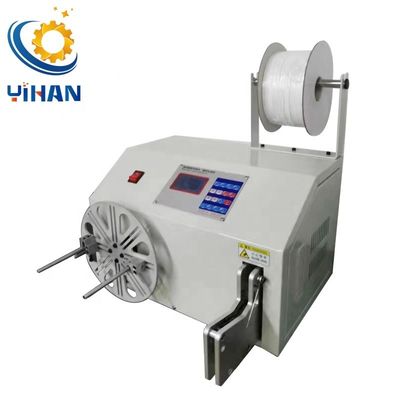

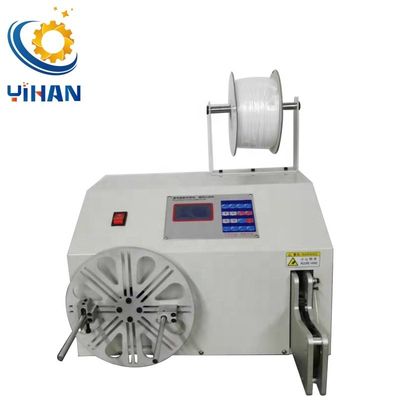

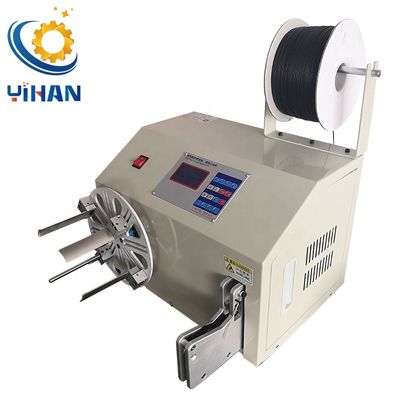

China manufacturer YH-JY530 Automatic cable winding and binding machine low price
FEATURE:
1.This machine is suitable for AC power cord, DC power cord,USB cable, sheathed cable andHDMI high-definition cable and other types of transmission lines using encapsulated core twist tied into bundle, can also be used to tape and other sealing plastic bag cores.
2.This machine can reduce employee fatigue strength, improve working efficiency, save cable ties and so on.
3.Employees simply put the wires on the port it will automatically winding,then putting these wires around the Norse mouth,the machine will automatically norse.The machine can set binding wire length and number of laps,count the yield .
4.The machine adopts PLC control program , text display for parameter setting, easy to operate.Adjusting space, replacement of fixtures is very convenient, ("8" -shaped tying, tying round universal,large range of bundled,widely used.)
5.Low cost and high efficient
| Model | YH-R530 | YH-R1845 | YH-R4080 |
| Winding speed | Adjustable | Adjustable | Adjustable |
| Tying speed | 0.6s each time | 0.6s each time | 0.6s each time |
| Winding Disc Diameter (customized available) | 350mm | 350mm | 400mm |
| Tying range | 8-30mm | 18-45mm | 40-80mm |
| Tying line length(for reference) | 75-140mm | 120-200mm | 220-300mm |
| Weight | 40kg | 42kg | 65kg |
| Dimension | 550*520*500mm | 550*545*500mm | 650*710*650mm |
