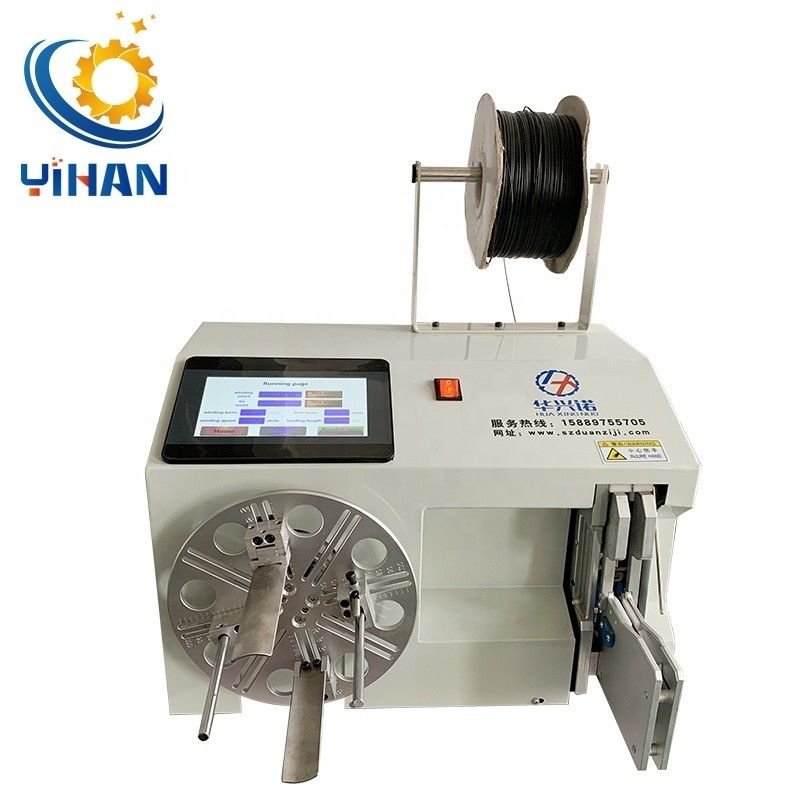

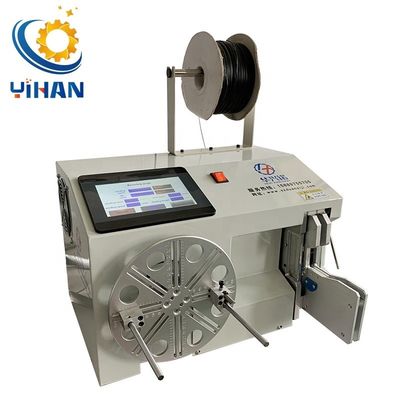

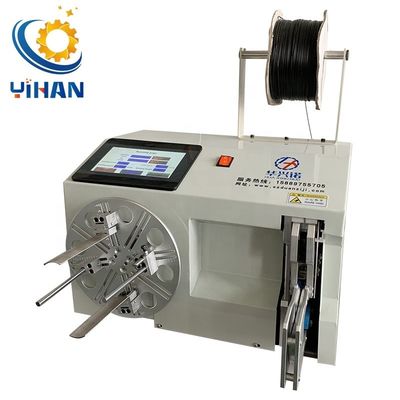

120-200mm Binding Length USB Cable Coiling and Winding Machine with Adjustable Diameter

1:This machine can reduce employee fatigue strength, improve working efficiency, save cable ties and so on.

2:Employees simply put the wires on the port it will automatically winding,then putting these wires around the Norse mouth,the machine will automatically norse.The machine can set  binding wire length and number of laps,count the yield .

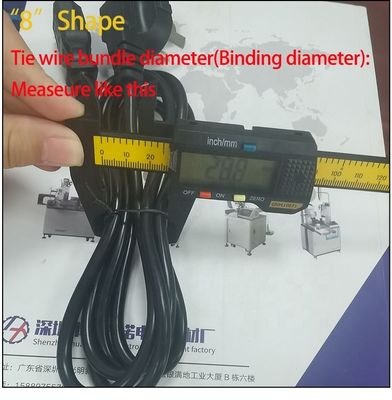

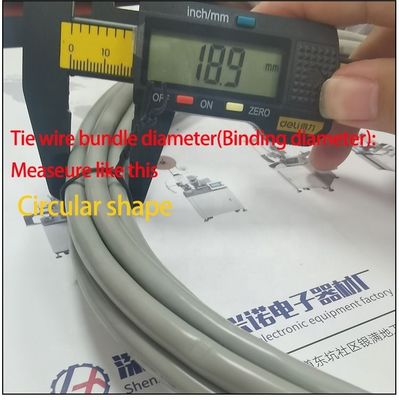

3:The machine adopts PLC control program , text display for parameter setting, easy to operate.Adjusting space, replacement of fixtures is very convenient, ("8" -shaped tying, tying round universal,large range of bundled,widely used.)

4:Low cost and high efficient

This machine is suitable for AC power cord, DC power cord,USB cable, sheathed cable andHDMI high-definition cable and other types of transmission lines using encapsulated core twist tied into bundle, can also be used to tape and other sealing plastic bag cores.

Usb Power Cord Cable Braided Automatically High Quality Full Automatic Aluminum Wire Winding Machi

Model	YH-R530-T	YH-R830-T	YH-R1845-T	YH-R4080-T
Winding speed	Adjustable	Adjustable	Adjustable	Adjustable
Tying speed	0.6s each time	0.6s each time	0.6s each time	0.6s each time
Winding Disc Diameter (customized available)	200mm	200mm	260mm	260mm

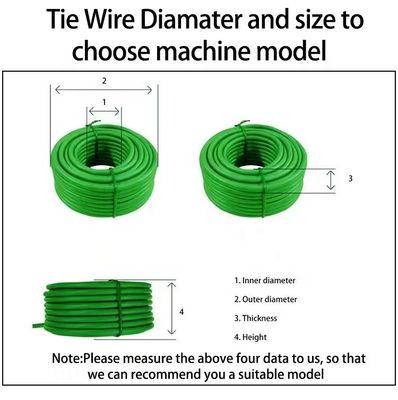

Tying range	5-30mm	8-30mm	18-45mm	40-80mm
Tying line length(for reference)	75-140mm	75-140mm	120-200mm	220-300mm
Weight	30KG	30KG	35KGkg	52KG
Dimension	550*520*500mm	550*520*500mm	550*545*500mm	650*710*650mm
