Product Details:
|
| Usage: | Peeling | Name: | 950 Hot Stripping Computer Cutting Machine |
|---|---|---|---|
| Voltage: | AC3 220V(380V) | Cutting Length: | 43-9999mm |
| Stripping Length: | 3-30mm | Cutting Method: | Hot Or Cold Cutting |
| Wire Material: | High Temperature Wire,nylon Braided Wire | Size: | 750mm*1700mm*1580mm |
| Weight: | 420KG | Productivity: | 30000~45000pcs/H |
| Application: | Stripping Cable Wires |

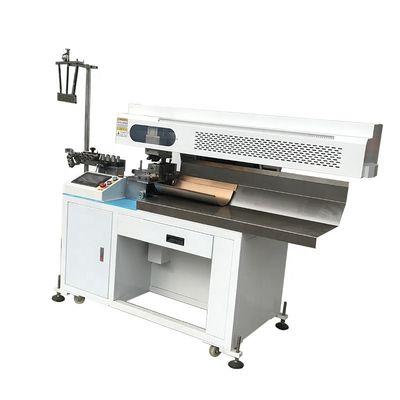

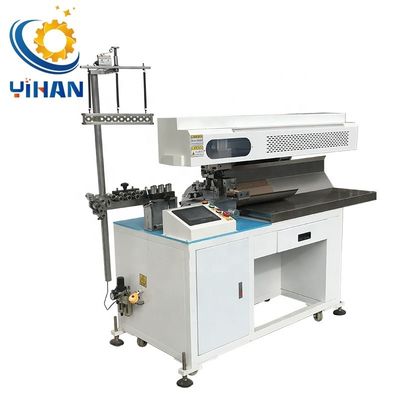

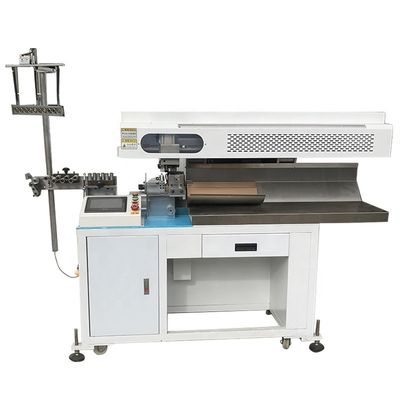

Automatic Knitting Wire Hot Cutting Machine 950 Hot Stripping Computer Cutting Machine Nylon Braided Wire Peeling Machine
Introduction:
1.This machine uses the Japanese Mitsubishi PLC and man-machine interface touch screen, Japan Yaskawa servo motor, cylinder Japan SMC, Germany FESTO solenoid valve, Japan OMRON sensors, Japan THK linear guide.
2.Combination the easy to adjust/save time of digital type with the advantages of high efficiency production of mechanical wire cutting machine
3.Intelligent thermostat housing adopts PV flame retardant housing, 50-300 degree automatic control
4.This machine is mainly for electronic wires, braided wires, silicone wires, Teflon wires, glass fiber wires, isolation wires, coaxial wires, etc.
5.New employees are easy to get started, simple operation, fast production speed, high efficiency, good batch production stability, high accuracy, stable production quality and high output
| Model | YH-950R |
| Motor | AC Servo motor |
| Power supply | AC 3 220V(380V) |
| Cutting length | 45--9999mm |
| Peeling length | Unilateral 3--30mm (no need pads, using the fine mode) |
| Semi-stripping function | Unilateral 3--40mm |
| Heating temperature | Up to 300 degrees |
| Control mode | Inching, dynamic and automatic (continuous) |
| Tool change | 8,10,12,14AWG;16,18AWG;20,24AWG Corner knife;24,28,30AWG Flat knife |
| Applicable Wire | AWG8--AWG32 And cable,combined line, special wire |
| Size | 750mmX1700mmX1580mm |
| Weight | 420Kg |
