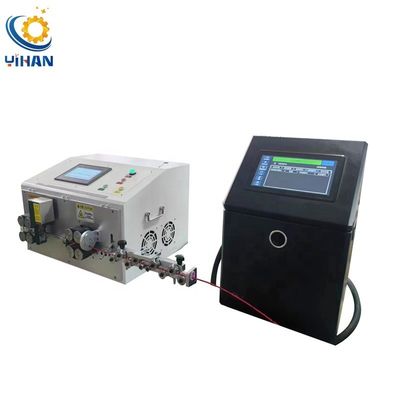

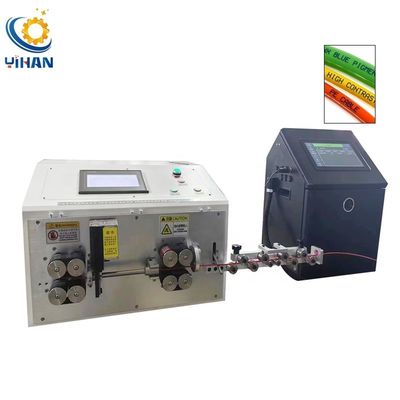

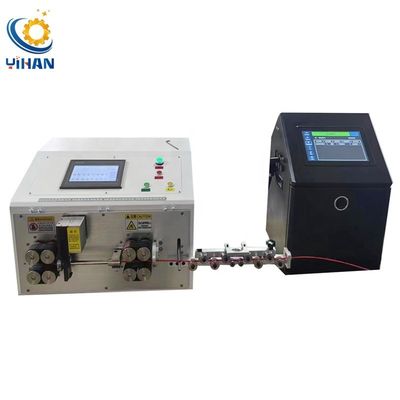

Product Details:
|
| Usage: | Stripping And Cutting | Power: | 220V/110V 50-60HZ |
|---|---|---|---|
| Stripping Length: | Head 0-250mm,Tail 0-120mm | Available Wire Size: | 1.5-35MM2 |
| Cutting Length: | 1-99999.99mm | Cutting Tolerance: | ±(0.002*L)(L=Cutting Length) |
| Wire Feed Method: | Belt Feeding | Speed: | 1000-1800pcs/h |
| Warranty: | 1 Year | Weight: | 70kg |
| Size: | 1400*760*1340 Mm |
| Model | YH-SW-35 | YH-SW-70 | YH-SW-95 | YH-SW-150 |
| Wire Size | AWG12-AWG3 | AWG7-AWG2/0 | AWG7-AWG3/0 | AWG7-AWG4/0 |
| Conductor Cross-Section | 1.5-35MM2 | 2.5-70MM2 | 2.5-90MM2 | 10-150MM2 |
| Cutting Length | 1-99999.99MM | |||
| Cutting Tolerance | ±(0.002*L)(L=Cutting Length) | |||
| Stripping Length | Head:0-250MM Tail:0-120MM | Head:0-320MM Tail:0-160MM | Head:0-300MM Tail:0-150MM | Head:0-500MM Tail:0-250MM |
| Conduit Diameter | ø16mm | ø20mm | ø22mm | ø32mm |
| Production Rate | 800-1600 PCS/H (Depend on wire) | 600-1000PCS/H (Depend on wire) | ||
| Wire Feed Method | Belt feeding | Belt feeding | Belt feeding | Belt feeding |
| Drive Method | 8 wheels drive | 12 wheels drive | 12 wheels drive | 24 wheels drive |
| Power Supply | 220V/110V 50-60HZ | |||
| Power | 650W | 800W | 800W | 1200W |
| Weight | 80kg | 105kg | 110kg | 270kg |
| Size | 560*520*450MM | 700*640*480MM | 700*640*480MM | 1100*800*1200MM |
| Note: Mark parameters custom available,if you are in doubt,we are happy to process your sample | ||||
