Product Details:
|
| Usage: | Multifunctional, Winding | Product Name: | Automatic Tape Winding Machine |
|---|---|---|---|
| Application: | Tape Winding Wire | Function: | Cable Wire Taping Binding |
| Tape Width: | 9-25mm(Other Sizes Need To Be Customized) | Processing Wire Diameter: | 1-28mm |
| Winding Length: | Infinite Length | Tape Roll Inner Diameter: | 32mm /37mm/76mm(Please Advise Other Sizesin Advance) |
| Size: | 470*370*320 | Weight: | 25kg |
| Port: | Shenzhen |

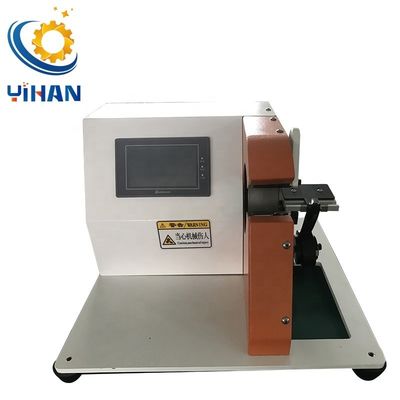

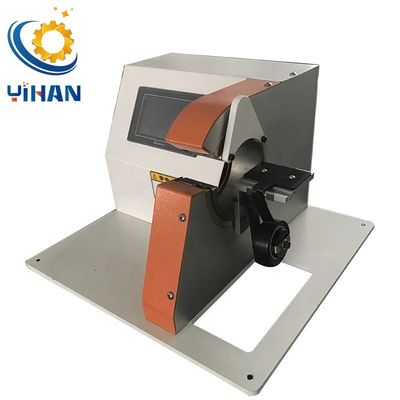

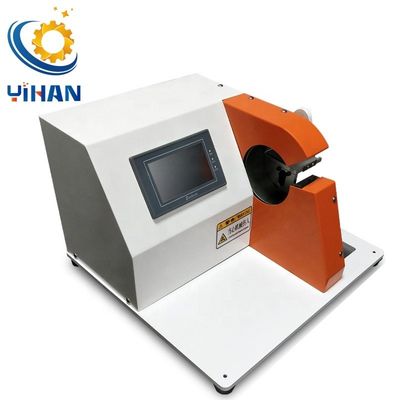

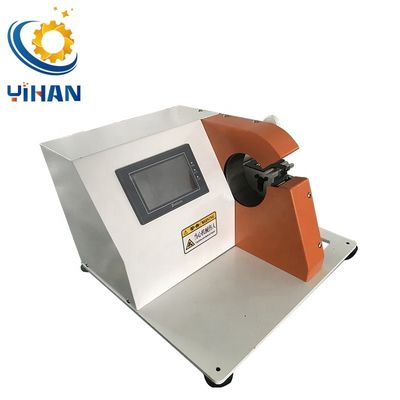

Semi-Automatic cable harness wrap tape winding machine factory spot
| Product Name | Semi-automatic adhesive tape winding machine |
| Model | YH-9-25L |
| Applicable to wire diameter | Φ1-30mm |
| Tape outside diameter | Max Φ100mm |
| Tape roll inner diameter | Φ76mm or Φ37mm Φ32mm(Please advise other sizesin advance) |
| Tape width | 9-25mm(Other sizes are customizable) |
| Winding length | 5-9999mm |
| Machine function | This tape machine is suitable for short distance winding |
| Dimension | 400*370*320mm |
| Weight | 25KG |
| Display method | Chinese or English interface display |
| Power supply | AC220/250V/50/60HZ |
| Winding length | Any require length |

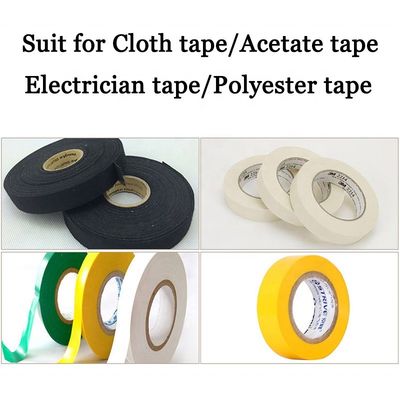

| Suitable for tape | flannelette, acetic acid cloth, electrical tape |
| Winding speed | 0.5-40R/S |
