Professional Automatic Wire Harness Tape Binding Machine for Automotive Industry

Large Image : Professional Automatic Wire Harness Tape Binding Machine for Automotive Industry

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Yihan
Model Number:	YH-30A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$2,200.00/sets 1-2 sets
Packaging Details:	Wooden package

Contact Now

Professional Automatic Wire Harness Tape Binding Machine for Automotive Industry

Description

Usage:	Multifunctional, Winding	Product Name:	Automatic Tape Winding Machine
Application:	Tape Winding Wire	Function:	Cable Wire Taping Binding
Tape Width:	5-25mm(Please Advise Other Sizesin Advance)	Wire Taping Diameter:	0-30mm
Size:	560500350mm	Tape Roll Inner Diameter:	38mm Or 32mm(Please Advise Other Sizesin Advance)
Weight:	65kg	Tape Outside Diameter:	Within 100mm

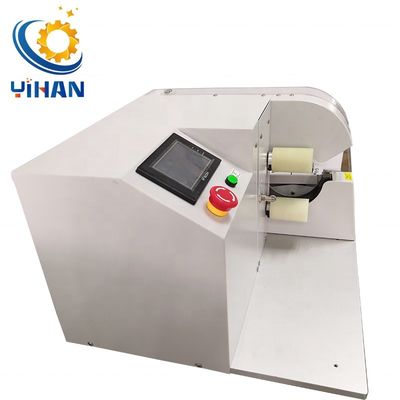

Professional Automatic Wire Harness Tape Binding Machine for Automotive Industry 0

YH-30A Automatic cable harness wrap tape winding machine

Description:
For the wire and complex forming, provides automated placement and winding.

It not only can guarantee the high quality of the wiring harness, but also good value.
especially applicable for thick wiring harnesses. Small, quick, reliable, cost-effective and thus absolutely economical, the perfect machine for efficient and cost-effective production.

Feature:
High precision,Economical & user-friendly
Extremely low maintenance
easy operation

Product Description

Product Name	Automatic cable harness wrap tape winding machine
Model	YH-30A
Applicable to maximum wire diameter	Max Φ30mm
Tape outside diameter	Max Φ100mm
Tape roll inner diameter	Φ32mm or Φ38mm (Please advise other sizesin advance)
Tape width	5-25mm(Other sizes are customizable)
Main engine rate of revolution	4500RPM
Dimension	550500350mm
Weight	48KG
Display method	Chinese or English interface display
Power supply	AC220/250V/50/60HZ
Winding length	Any require length
Suitable for tape	Flannelette, acetic acid cloth, electrical tape
Winding speed	Max 12R/S

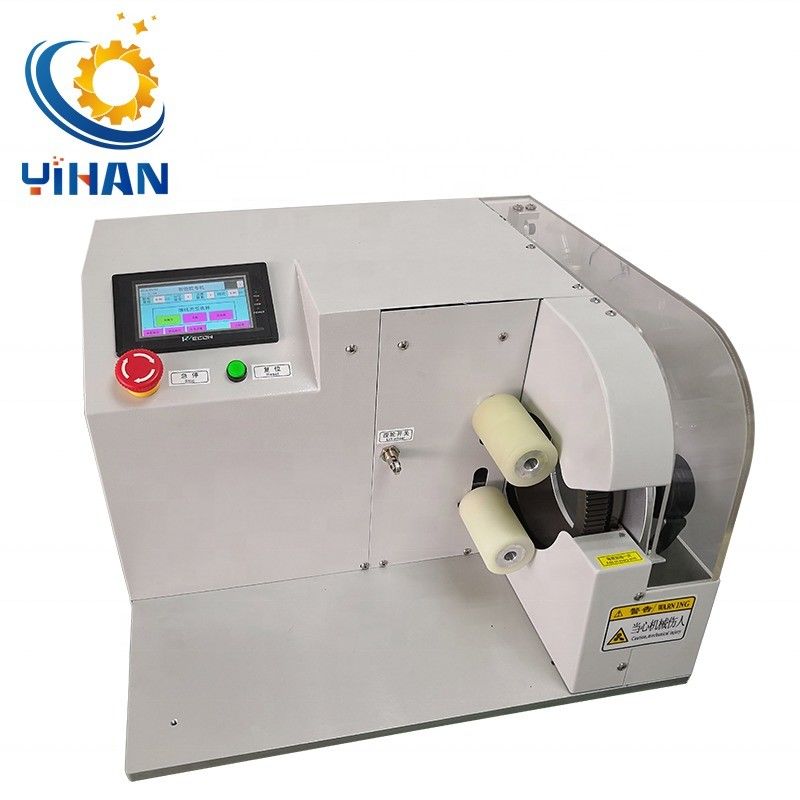

Professional Automatic Wire Harness Tape Binding Machine for Automotive Industry 3

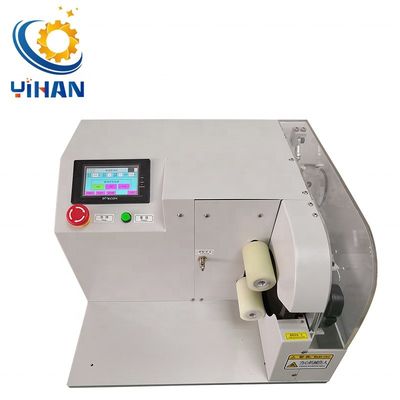

Product show 2

Professional Automatic Wire Harness Tape Binding Machine for Automotive Industry 8

Company profile

Professional Automatic Wire Harness Tape Binding Machine for Automotive Industry 9

Advantages

Professional Automatic Wire Harness Tape Binding Machine for Automotive Industry 14

Certification

Professional Automatic Wire Harness Tape Binding Machine for Automotive Industry 15

Packaging delivery

Professional Automatic Wire Harness Tape Binding Machine for Automotive Industry 16

Problem solving

Professional Automatic Wire Harness Tape Binding Machine for Automotive Industry 17

Professional Automatic Wire Harness Tape Binding Machine for Automotive Industry 18
