Product Details:
|
| Usage: | Stripping | Port: | Shenzhen |
|---|

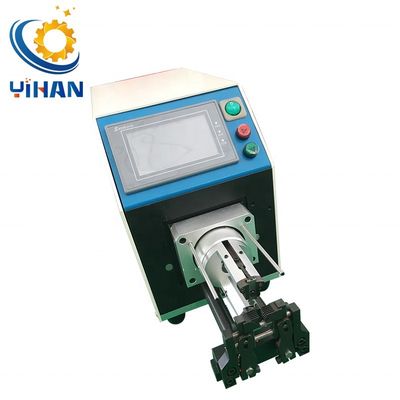

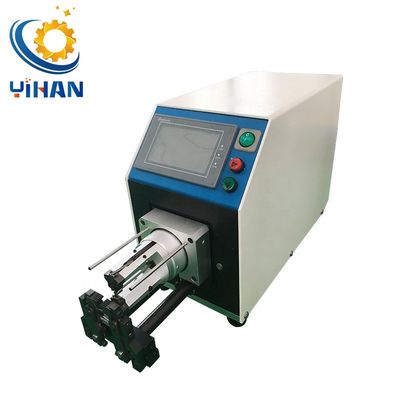

YH-4806S Coaxial wire stripping machine
FEATURE:

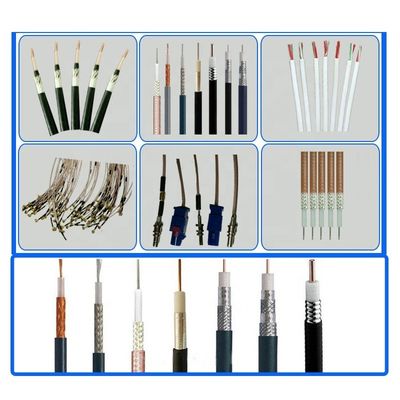

1. Mainly used for the processing of coaxial cables and special single wires, using the most advanced rotary tool holder to improve accuracy and speed.
2. LCD display.
3. With a specific axis positioning device and a rotary tool method, up to 9 layers can be stripped.
4. Corresponding to various sizes and sheath wires without changing the blade.
| Model | YH-4806S |
| Max cable diameter | 0.81-up to 6.99 mm |
| Cutting Unit Depth | 0.01mm |
| Max Stripping Length | 48mm |
| Max Stripping layers | 9 layers |
| Drive mode | Motor / ball screw drive(Japan imports) |
| Display method | Touch screen |
| Blade/Material | 2pcs/Tungsten steel |
| Centering piece/Material | 2pcs/Tungsten steel |
| Clamp devices | Self-aligning, motor drive, the clamping force control program |
| Productivity | 500-700pcs/h(Depending on the length and types of cable ) |
| Boot mode | Manual / Sensor |
| Supply power | 220V/50HZ |
| Rated power | 380W |
| Weight | 23KG |
| Dimensions | 525X186X278 mm |
| Working environment | 0-50 degrees, moderate drying, vibration-free work surface, moderate dryness workshop |
