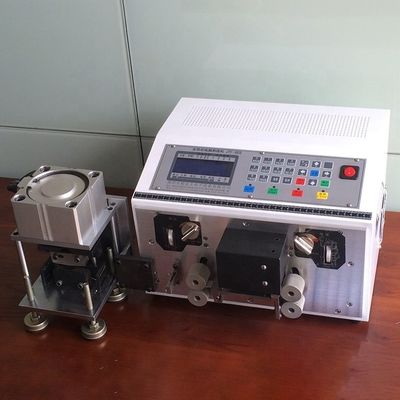

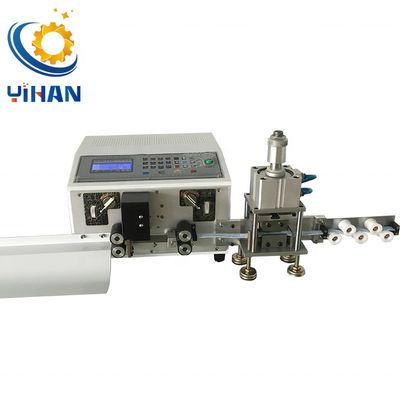

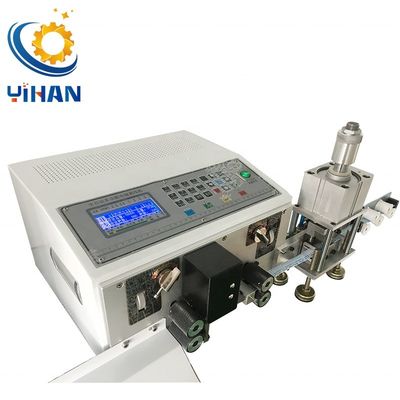

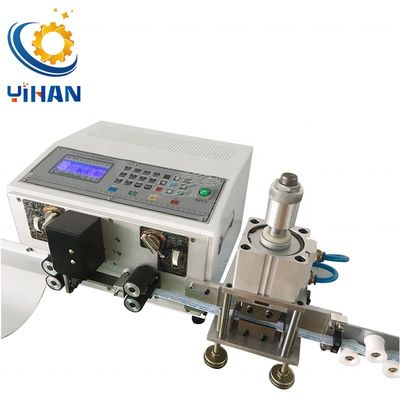

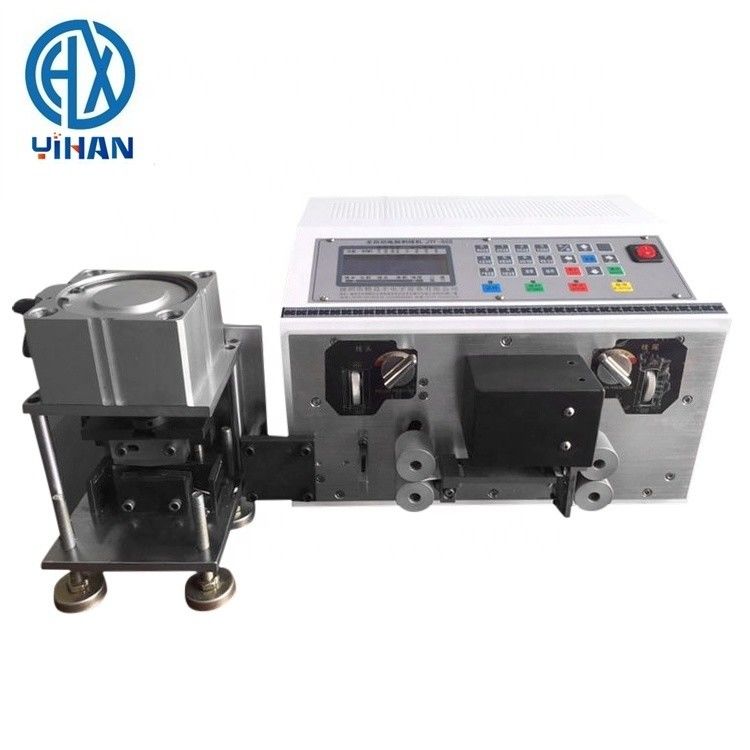

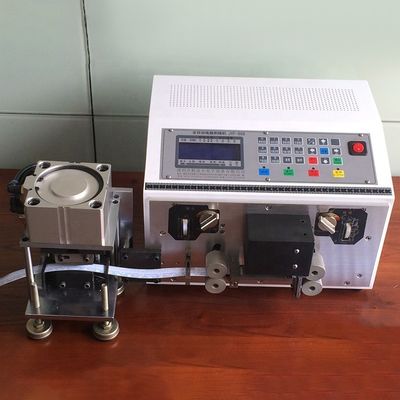

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour
High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour

Large Image :  High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour

Product Details:
Place of Origin: Guangdong, China
Brand Name: Yihan
Certification: CE Certificate
Model Number: YH-PX380
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $950.00/sets 1-2 sets
Packaging Details: Wooden package

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour

Description
Usage: Cutting Stripping Sub-line Machine Name: Cutting Stripping Sub-line Machine
Suitable Wire: Flat Cable,winding Displacement,double Lines,speaker Cable Max Width Range: Flat Cable Branching Wire 12p
Stripping Length: Head 0-25mm Tail 0-15mm Power Supply: AC 220V 50/60Hz
Speed: 2000 - 7000pcs/hour Size: 500*470*400mm
Weight: 40kg Warranty: 12 Months

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour 0High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour 1High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour 2

Automatic computer cable line cutting and stripping machine

Features Introduction:

  • The machine uses the latest 32 intelligent control system, Chinese and English switch LCD, button operation, can store hundreds of pieces of information, called at any time, fast efficient, convenient and quick.Subline mold parts are used by the US imported from bottom to top plugbreaking formula subline, thin blade, sharp, Cable tidy deformation, more convenient crimp terminal.
  • This is a new multifunctional automatic wire cutting machine that developed by our company , automatic sub wire, wire cutting, stripping, semistripping, full strip once completed, compatible with the general wire cutting machine function, not only saves labor and time, but also improve productivity.Different types of wires can be arbitrary processing , without moving the subline mode can be computer adjusted thread and wire tail subline length, models supporting plugbreaking ceremony for the pneumatic sub-line mode.

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour 3

Product Description
Type  YH-PX380
Size  760mm*450mm*360mm
Weight  45kg
Display method  Chinese or English interface displa
Power supply AC220/50Hz
Capacity  420W
Cutting length 1mm---99999mm
Cutting Tolerance Modifiable
Peeling length 1.0mm-999.9mm(According to the wire)
Applicable wire core area 32#-14#,cable 2P-13P
Applicable wire Cable, electronic wire,  double to combine wire, parallel wires, RVV wire, etc.
Tool Material Tungsten steel / white steel
Stripping speed: Fast
Cable outer diameter Adjustable
Stripping quality Excellent
Decimal precision Yes
Drive mode Four simultaneously drive
Stripping pressure adjustment Adjustable
Speed adjustment 0-9
Stripping Mode long wire/ short wire / semi-stripping / multi-stage stripping / cable/trunking

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour 4High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour 5High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour 6

Product show

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour 7

Company profile

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour 8High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour 9High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour 10High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour 11High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour 12High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour 13

Advantages

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour 14

Certification

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour 15

Packaging delivery

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour 16

Problem solving

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour 17

Contact us

High Speed Automatic Cable Line Cutting and Stripping Machine Speed 2000 7000pcs/hour 18
