Product Details:
|
| Usage: | Stripping | Name: | Pneumatic Peeling Machine |
|---|---|---|---|
| Application: | Wire Processing | Function: | Stripping Wire |
| Stripping Length: | 3-25mm | Wire Diameter: | Max7mm |
| Power: | 220V/110V | Air Pressure: | 3-7kgcm 2 |
| Weight: | 13.5kg | Size: | 260*220*320mm |
| Warranty: | One Year |
Thick cable stripping machine Stripping diameter 15mm

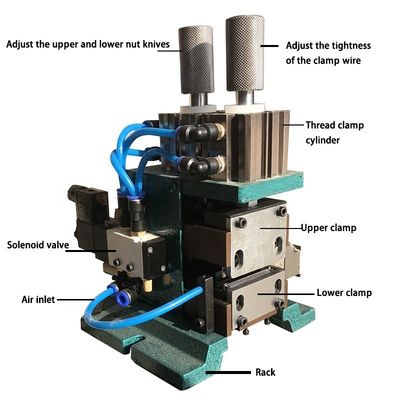

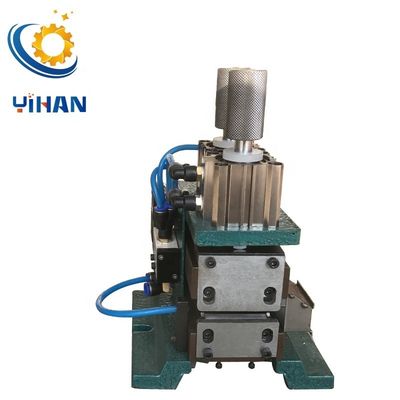

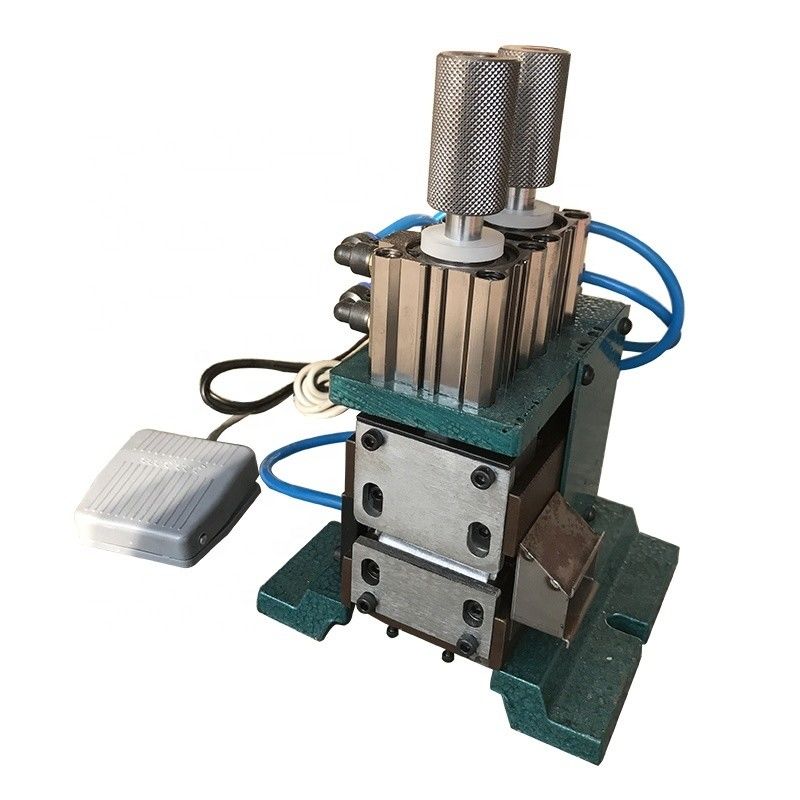

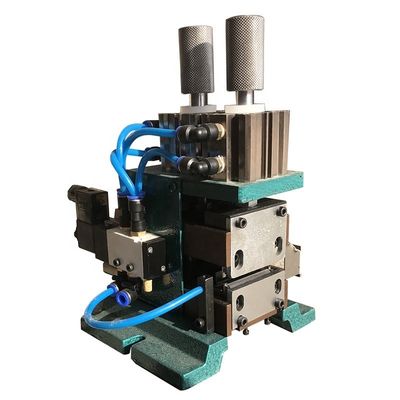

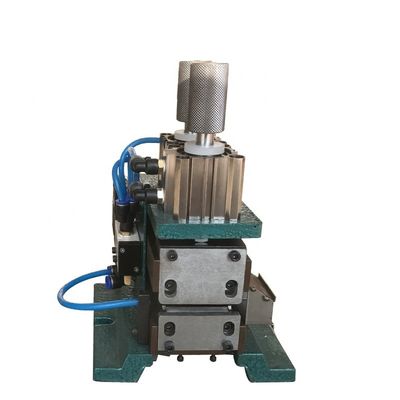

YH-4F Vertical pneumatic wire stripping machine
FEATURE:
1.Pneumatic control, improved aircraft design,advanced and suitable diameter AWG#18-32.
2. double moving cylinder, free of spring breakage.
3. the two cylinders of oil and gas self supply provide regular oil supply to cylinder, reduce internal wear and prolong service life.
4. Unique slide seat, stable reciprocating stroke, accurate cutting and stripping.
5. pneumatic control, light and agile, easy to operate.
6. Debug structure, adjust the thickness of the line of sight.
7. It is suitable for the processing of large and small wires and long and short wires. Such as AC/DC, power cord, sheath wire, computer wire, electronic wire, multi-core wire, cable, flat line, etc.;
]
