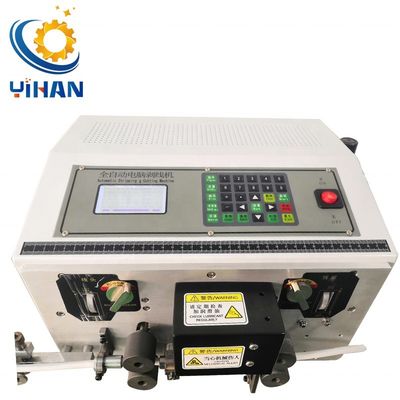

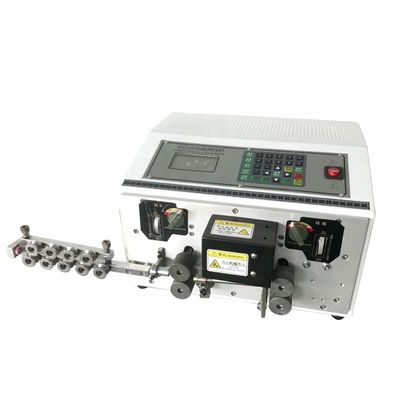

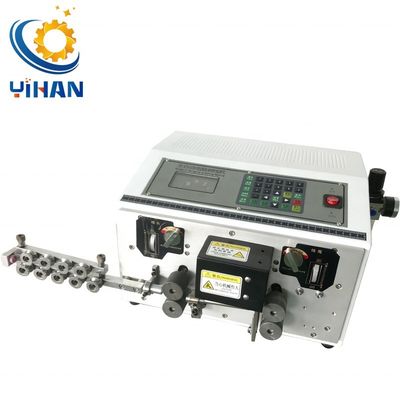

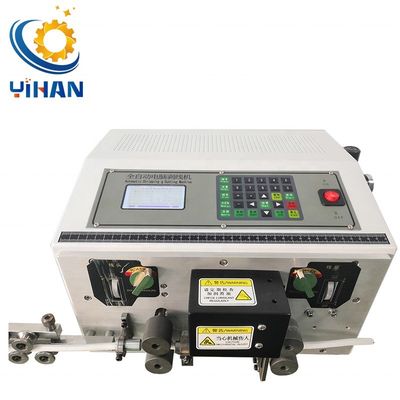

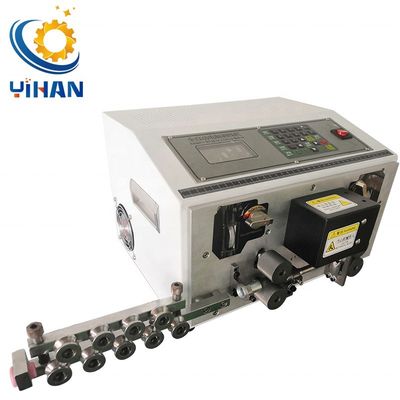

Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best

Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best
Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best

Large Image :  Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best

Product Details:
Place of Origin: Guangdong, China
Brand Name: Yihan
Model Number: YH-H810
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $1,180.00/sets 1-1 sets
Packaging Details: Wooden package

Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best

Description
Usage: Stripping Type: YH-H810
Size: 470*450*340mm Weight: 35kg
Display Method: Chinese Or English Interface Display Power Supply: AC220V/50
Cutting Length: 1-9999mm Cutting Tolerance: Modifiable
Stripping Length: Head 0 - 120mm Tail 0-70mm Stripping Range: External Diameter 1-8mm
Model: Wire Stripping Machine

Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best 0Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best 1Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best 2

Single line automatic computer wire stripping machine

Features:

1.The machine uses the latest 32 intelligent control system, Chinese and English switching liquid crystal display, button operation, can store hundreds of pieces of information, called at any time, fast efficient.

2.Compatible with the general features of 220 # wire cutting machine.Double linear,two wires can be processed simultaneously,not only saves labor and time,but also improve productivity.

3.Mainly used for electronic wire, BVR line, RV wire, electronic wire, silicone wire, Teflon wire, glass fiber of cotton, isolated lines, coaxial, sheathed cable, etc..

4.Automatic cutting, stripping, semi-stripping,multi-segment stripping , twisting function completed at one time, can instantly transform wire specifications and dimensions,it’s very economic.

5.The machine is mainly used in electronics, electrical appliances, toys, auto parts and other industries.

Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best 3

Product Description
Model YH-H810
Dimension 470mm×450mm×340mm
Weight 35kg
Display method Chinese or English interface display
Power supply  AC220/50Hz
Capacity 450W
Cutting length 1mm---99999mm
Cutting Tolerance Modifiable
Peeling length Head 1-120mm  Tail 0.1-70mm (According to the wire)
Applicable wire core area

External diameter 1-8mm

Productivity 2000-3000pcs/h(according to the cutting length)
Tool Material Tungsten steel / white steel
Stripping speed Fast
Cable outer diameter Adjustable
Stripping quality Excellent
Decimal precision Yes
Drive mode Four simultaneously drive
Stripping pressure adjustment Adjustable
Speed adjustment 0-9
Stripping Mode Long wire/short wire/Cable model/sheathed mode

Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best 4Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best 5Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best 6Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best 7

Product Show

Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best 8

Company profile

Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best 9Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best 10Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best 11Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best 12Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best 13

Advantages

Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best 14

Certification

Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best 15

Packaging delivery

Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best 16

Problem solving

Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best 17

Contact us

Multi Core Sheath Cable Wire Cutting and Stripping Peeling Machine AC220V/50 at Best 18
