Product Details:
|
| Usage: | Cutting & Stripping & Splitting | Suitable Wire: | Flat Cable,winding Displacement,double Lines,speaker Cable |
|---|---|---|---|
| Cutting Tolerance: | 0.2+0.002*L) | Max Width Range: | Flat Cable Branching Wire 8P |
| Stripping Length: | Head 0 - 25mm ,End 0-15mm | Splitting Length: | Head 30mm Tail 30mm |
| Power Supply: | AC220V/50HZ/60HZ | Speed: | 3000-7000pcs/h |
| Size: | 470mm*450mm*340mm | Weight: | 45kg |
![]()
![]()
![]()

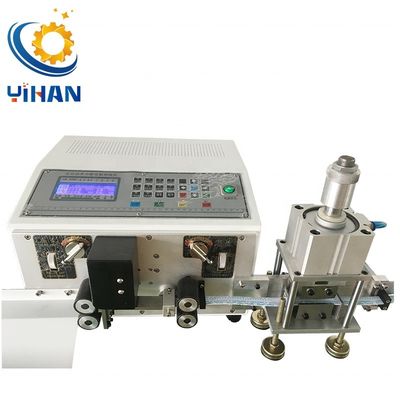

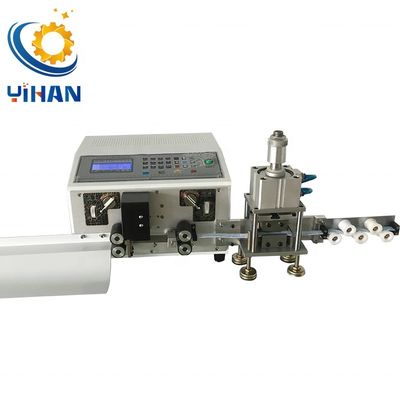

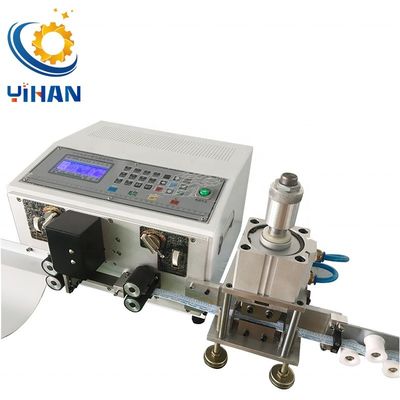

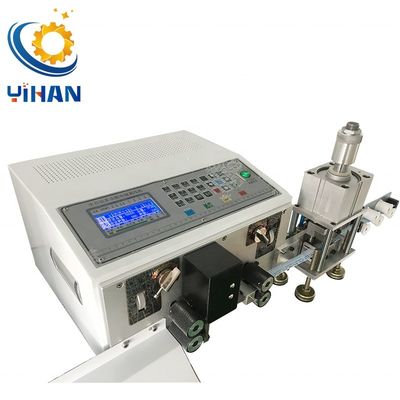

Automatic computer cable line cutting and stripping machine
Features Introduction:
| Type | YH-P515 |
| Size | 470mm×450mm×340mm |
| Weight | 45kg |
| Display method | Chinese or English interface displa |
| Power supply | AC220/50Hz |
| Capacity | 420W |
| Cutting length | 1mm---99999mm |
| Splitting Length | Head 30mm Tail 30mm |
| Peeling length | 1.0mm-999.9mm(According to the wire) |
| Applicable wire core area | 32#-14#,cable 2P-8P |
| Applicable wire | Cable, electronic wire, double to combine wire, parallel wires, RVV wire, etc. |
| Tool Material | Tungsten steel / white steel |
| Stripping speed: | Fast |
| Cable outer diameter | Adjustable |
| Stripping quality | Excellent |
| Decimal precision | Yes |
| Drive mode | Four simultaneously drive |
| Stripping pressure adjustment | Adjustable |
| Speed adjustment | 0-9 |
| Stripping Mode | long wire/ short wire / semi-stripping / multi-stage stripping / cable/trunking |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
