Product Details:
|
| Usage: | Multifunctional | Name: | Pneumatic Peeling Machine |
|---|---|---|---|
| Application: | Wire Processing | Function: | Stripping And Wisting Wire |
| Stripping Twisting Length: | 2.5-25mm | Wire Range: | AWG32-AWG18 (0.1-0.75mm2) |
| Power: | 220V/110V | Air Pressure: | 3-7kgcm 2 |
| Weight: | 16kg | Size: | 320*230*300mm |
| Stripping Ability: | 1-10 Strips/time |
Thick cable stripping machine Stripping diameter 15mm

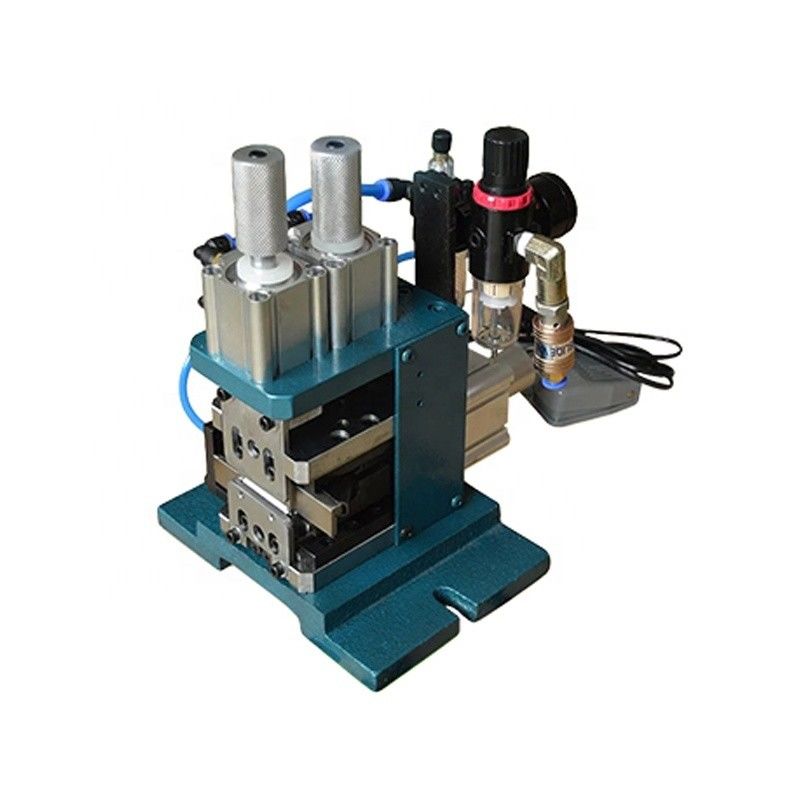

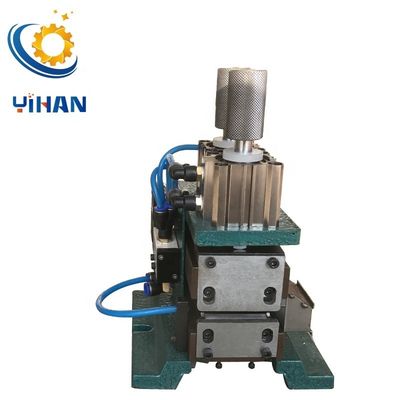

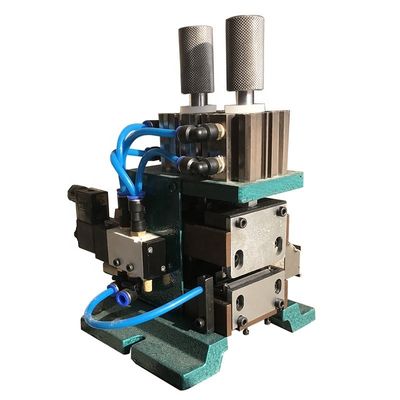

YH-3FN electrical pneumatic vertical wire stripping and twisting machine
FEATURE:
1.Pneumatic control, improved aircraft design,advanced and suitable diameter AWG#18-32.

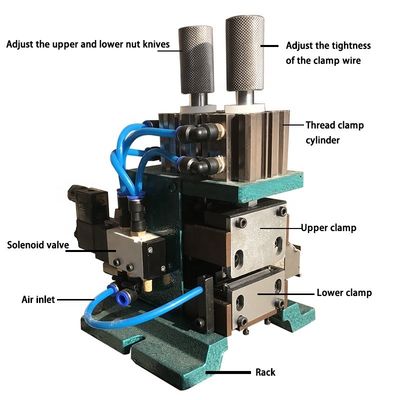

2. double moving cylinder, free of spring breakage.
3. the two cylinders of oil and gas self supply provide regular oil supply to cylinder, reduce internal wear and prolong service life.
4. Unique slide seat, stable reciprocating stroke, accurate cutting ,stripping and twisting.
5. pneumatic control, light and agile, easy to operate.
6. Debug structure, adjust the thickness of the line of sight.
7. It is suitable for the processing of large and small wires and long and short wires. Such as AC/DC, power cord, sheath wire, computer wire, electronic wire, multi-core wire, cable, flat line, etc.;
]
